Installation Manual for Golden Lighting 2073-OWM Outdoor Wall Sconce
A comprehensive installation guide for the Golden Lighting 2073-OWM outdoor wall sconce. Includes step-by-step mounting instructions, wiring diagrams, and essential maintenance tips for proper outdoor sealing.
Quick answers from the manual
Quick answer
- The 2073-OWM is an outdoor wall sconce. Installation involves mounting the strap to the junction box, connecting wires (Hot, Neutral, Ground), securing the backplate, installing a bulb, and attaching the glass shade. p. 3, 4
Key actions
- Turn off power at the circuit breaker before starting. p. 3
- Apply silicone sealant around the backplate, leaving the bottom gap open for drainage. p. 3, 4
Where to find it in the PDF
- General Lighting Advice p. 1
- Wiring and Parts Diagram p. 2
- Installation Instructions p. 3, 4
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides installation instructions for the Golden Lighting 2073-OWM outdoor wall sconce. All installation work must be performed by an accredited professional. Always shut off the power supply at the circuit breaker before beginning any work.
Preparation for Installation
Carefully remove the fixture from the carton and locate the yellow bag containing all parts. Remove the old fixture and mounting strap from the wall.
- Hold the backplate (D) up to the mounting strap (A) to align the holes.
- Insert mounting screws (C) into the strap so they protrude through the backplate. Use nuts (D) to secure the screws in place.
- Remove the backplate and set it aside for later.
- Secure the mounting strap (A) to the junction box using mounting screws (B). Tighten securely with a screwdriver.
Wiring the Fixture
Have an assistant support the fixture's weight during wiring. Connect the fixture wires to the house supply wires using wire connectors, ensuring all twists are in the same direction.
- Hot: Connect to the smooth, black, or transparent wire with black inner thread.
- Neutral: Connect to the ribbed, white, or transparent wire with white inner thread.
- Ground: Connect to the copper, bare metal, green, or transparent wire with green inner thread.
If there is no house ground wire, locate the ground screw (E) on the mounting bracket and wrap the fixture's ground wire around it. Tighten the screw to secure the wire.
Finishing the Installation
Place the backplate (F) over the mounting screws (C). Secure it with washers and deco nuts (G) until the backplate is snug against the wall. Install the specified light bulb (not included) into the socket (H). Slide the glass shade (I) over the bulb and twist to secure. Apply clear silicone rubber caulking to seal the gap between the enclosure and the mounting surface, but leave the bottom gap unsealed to allow for water drainage.
Manufacturer information
Golden Lighting
Practical help
Common problems
Fixture not sitting flush against the wall
Adjust the length of the mounting screws (C) and tighten the deco nuts (G) until the backplate is snug against the wall.
Water leaking into the fixture
Apply clear silicone rubber caulking around the top and sides of the backplate, but ensure the bottom gap is left unsealed to allow for drainage.
Before use
- Turn off power at the circuit breaker
- Ensure you have an assistant to support the fixture weight
- Verify wire identification (Hot, Neutral, Ground)
- Have a screwdriver and silicone sealant ready
Specs in practice
- Neutral Wire
- Ribbed, White, or Transparent with White Inner Thread
Images and diagrams

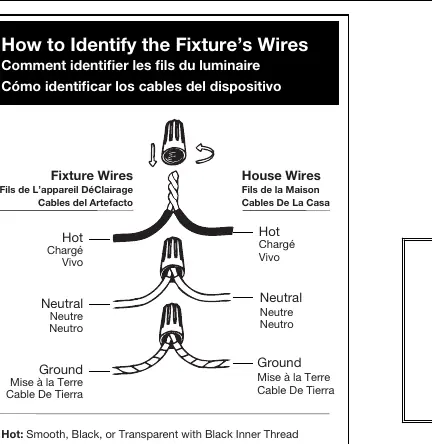

- The wiring diagram illustrates how to connect house wires to fixture wires using wire connectors.

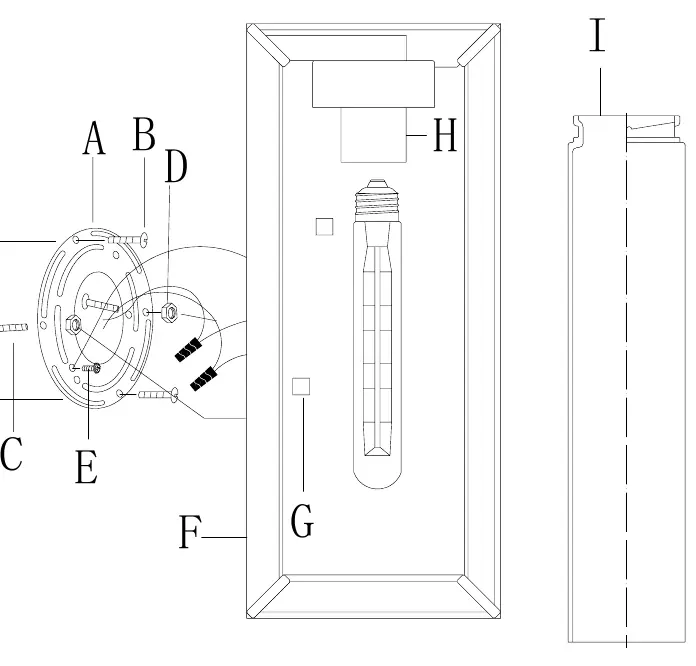

- The assembly diagram identifies parts A through I, including the mounting strap, backplate, and glass shade.
