User Manual for VOVO 090WA CS-Smart Bidet Toilet

Quick Guide from the Manual

This document provides essential maintenance and installation procedures for the VOVO 090WA CS-Smart Bidet Toilet. Key tasks include power resetting, cleaning the water strainer, and unit installation or removal.

External Factor Checklist

If the unit is not functioning correctly, perform the following reset procedure:

1. Unplug the unit from the power source.
2. Ensure the water shutoff valve is fully open.
3. Plug the unit back in.
4. Press the nozzle cleaning button to verify the nozzle extends and retracts.
5. Place your hand on the seat sensor and press the posterior or feminine button on the remote to test functionality.

Power Reset and Remote Settings

To ensure proper operation, verify the water pressure settings:

• Check the water pressure setting on the remote control.
• Adjust the pressure to level 5.
• Operate the product to confirm the water pressure is sufficient.

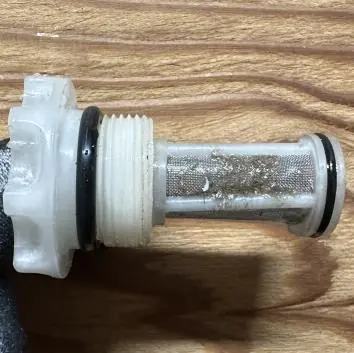

Cleaning the Main Strainer

If water flow is restricted, clean the main strainer:

1. Turn the water valve fully closed.
2. Use a tool to remove the strainer cap.
3. Inspect the filter for debris.
4. Rinse the mesh filter under running water.
5. Reattach the strainer and turn the water valve fully open.

Removing the Bidet and Pressure Regulator

1. Unplug the power cord.
2. Turn the water valve to the closed position.
3. Press the manual flushing button on the side to release internal pressure.
4. Pull the lever plate forward and lift to remove the bidet unit.
5. Disconnect the water supply hose.

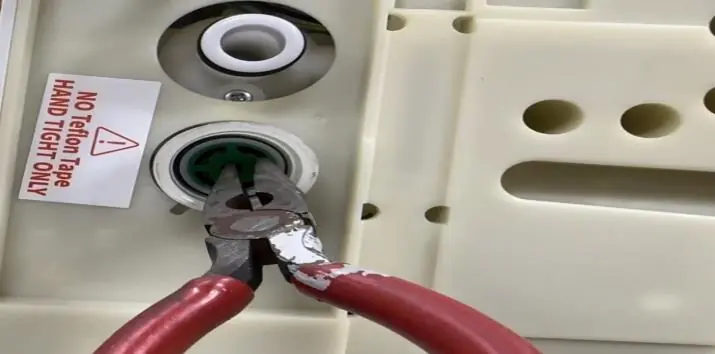

6. Use a tool to hold the groove of the water pressure regulator and pull it out to remove it.

Installing the Bidet

1. Connect the water supply hose to the unit.
2. Align the unit with the base and catch plate, then secure it.
3. Turn the water valve open.
4. Plug in the power cord.
