Waring Commercial WSV16 Sous Vide Thermal Circulator Guide

Quick guide for the Waring Commercial WSV16 16L Sous Vide Thermal Circulator. Learn about features, technical specifications, and the sous vide cooking process.

Table of contents

Manual images

Click an image to enlarge

Quick guide from the manual

The Waring Commercial WSV16 is a 16L thermal circulator designed for professional sous vide cooking. This system provides precise temperature control to ensure consistent, repeatable results. It is suitable for cooking meats, vegetables, and other foods in a temperature-controlled water bath.

Cooking Process

The sous vide method follows a simple three-step process:

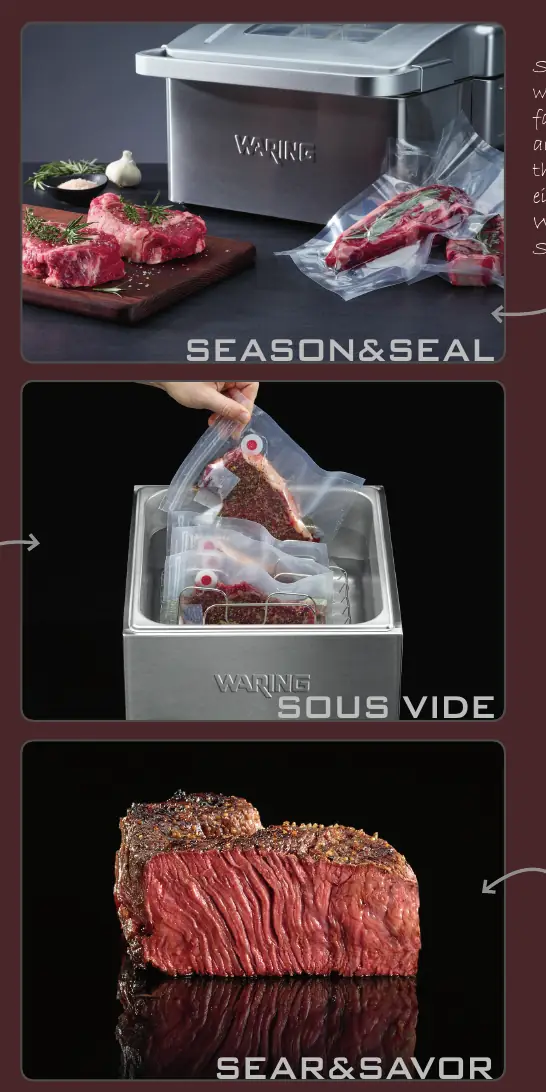

The three-step sous vide cooking process: Season & Seal, Sous Vide, and Sear & Savor.
The three-step sous vide cooking process: Season & Seal, Sous Vide, and Sear & Savor.
  • Season & Seal: Season food with herbs and spices, then seal it in a food-grade vacuum bag using a vacuum sealing system.
  • Sous Vide: Immerse the sealed bag in the water bath. The system circulates water to maintain the selected temperature precisely.
  • Sear & Savor: Once cooked, sear the food quickly to finish, resulting in tender, juicy, and evenly cooked meals.

Key Features

Control panel of the WSV16 thermal circulator.
Control panel of the WSV16 thermal circulator.
  • Precision Control: Integrated system circulates water to maintain the exact selected temperature.
  • Memory Stations: Includes 5 reprogrammable memory stations for frequently used settings.
  • Integrated Hose System: Allows for safe and easy removal of water from the reservoir.
  • One-Touch Control: Quickly set or adjust time and temperature.
  • Construction: All-stainless steel design.

Technical Specifications

  • Capacity: 16 Liters
  • Temperature Range: 35°C to 90°C (95°F to 194°F)
  • Temperature Accuracy: +/- 0.05°C / 1°F
  • Timer: 99-hour timer
  • Water Circulation: 6L per minute
  • Power: 120V, 1560W

Contact Information

For information on Waring Commercial products in the U.S. and Canada, contact Waring Commercial at 314 Ella T. Grasso Avenue, Torrington, Connecticut 06790. Phone: (800) 492-7464. Website: www.waringcommercialproducts.com

Practical help

Before use

  • Season food with desired herbs and spices
  • Seal food in a food-grade vacuum bag
  • Ensure the water bath is filled
  • Set the desired temperature and time using the control panel

Specs in practice

Temperature Range
Operating range from 35°C/95°F to 90°C/194°F
Memory Stations
5 slots to save frequently used cooking programs
Water Circulation
Circulates 6L of water per minute for even heating

Images and diagrams

  • The process involves three distinct stages: Seasoning and sealing the food, immersing it in the sous vide bath, and searing the food after cooking.

Model compatibility

  • Requires food-grade vacuum bags for the sous vide process.
