XPOtool 64156 Hose Reel

Quick guide for the XPOtool 64156 Hose Reel. Includes installation instructions for wood and brick walls, usage tips, maintenance, and technical specifications.

Quick answers from the manual

Quick answer

The XPOtool 64156 is a wall-mounted hose reel. Installation requires selecting a location with access to water, drilling holes based on the surface type (wood or brick), and securing the bracket. Always hold the hose during retraction to prevent damage. p. 3, 4, 5, 6

Key actions

Adjusting the stop ball p. 6
Retracting the hose p. 6

First start

Mount the reel to a suitable surface, connect the inlet hose to the water supply, and ensure the pressure does not exceed 8 bar. p. 4, 5

Problems and fixes

Hose tangled

Extract the hose past the tangled point and let it retract slowly.

p. 6

Maintenance and reset

Regularly check the hose and housing for cracks or bubbles. Clean with a damp cloth. p. 7

Technical specifications

Parameter	Value	Meaning	Pages
Hose diameter	12.7 mm	Diameter of the hose.	p. 4
Max. operation pressure	8 bar	Maximum water pressure allowed.	p. 4

Where to find it in the PDF

Safety and Scope of Delivery p. 3
Installation p. 4, 5
Usage and Maintenance p. 6, 7

Table of contents

Manual images

Click an image to enlarge

Page 3

Page 5

Quick guide from the manual

This manual provides instructions for the XPOtool 64156 Hose Reel. Key safety precautions include ensuring the mounting surface can support the load, checking for hidden cables or pipes before drilling, and wearing eye protection when using power tools. The unit contains a tensioned spring; do not disassemble the housing.

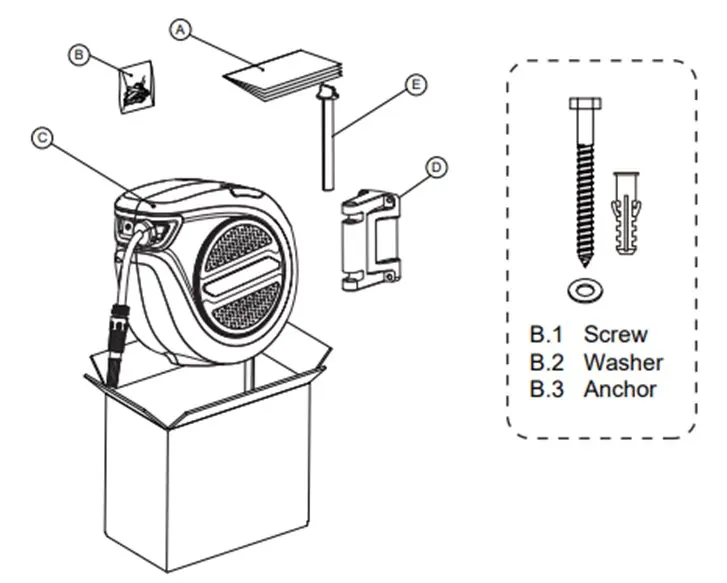

Scope of delivery

User's manual
Fixing material (screws, washers, anchors)
Hose reel

Choosing the best installation site

Consider the following when selecting a location:

Proximity to water source (20m outlet hose reach).
Proximity to water supply (2m inlet hose reach).
Protection from direct sunlight.
Surface strength: The wall must be strong enough to support the load.

Fixing the reel

Fixing the reel directly to wood

Mark the bolt location using a bolt finder.
Fix the drilling template at the appropriate height.
Check vertical alignment with a level.
Drill four holes using a 3-mm drill.
Fix the holder to the wall using screws and washers.
Attach the hose reel and secure it with the fixing bolt.
Connect the inlet hose to the water supply.

Fixing the reel to a cavity wall or brickwork structure

Fix the drilling template at the appropriate height.
Check vertical alignment with a level.
Drill four holes using a 10-mm drill.
Insert plastic dowels (B3) into the holes.
Fasten the bracket to the wall using screws and washers.
Attach the hose reel and secure it with the fixing bolt.
Connect the inlet hose to the water supply.

Usage

Retracting the hose: Always hold the hose firmly until it is fully retracted. Do not let go of the hose to allow it to retract automatically. If the hose gets tangled, extract it past the tangled point and let it retract slowly.

Adjusting the stop ball: The stop ball position can be adjusted to keep the hose within reach. Extract the hose to the desired length, open the lock of the stop ball, slide it to the new position, and re-lock it.

Maintenance

Check the hose and housing regularly for cracks or bubbles.
Clean the hose with a damp cloth if dirty.
Do not twist the hose during use.
Keep the hose reel in a protected area.
Always reel the hose up when not in use.

Practical help

Common problems

Hose gets tangled and will not retract

Extract the hose past the tangled point, then let it retract slowly while guiding it back to the reel.

Risk of the reel falling

Ensure the mounting surface is strong enough to support the load and that the installation is carried out correctly.

Before use

Read the entire user's manual.
Check that the wall is free of live cables or pipes before drilling.
Ensure the mounting surface can support the weight of the reel.
Wear eye protection when using power tools.
Verify water pressure is 8 bar or less.

Specs in practice

Max. operation pressure: 8 bar; do not exceed this pressure.
Outlet hose length: 20 meters; determines the reach of the hose.
Inlet hose length: 2 meters; distance to the water supply.

Images and diagrams

The parts diagram shows the hose reel, bracket, and fixing materials (screws, washers, anchors).
The installation diagrams illustrate the drilling and mounting process for both wood and brick surfaces.

Model compatibility

Compatible with water sources up to 8 bar pressure.
Requires specific drill bits (3mm for wood, 10mm for brick/cavity walls).
