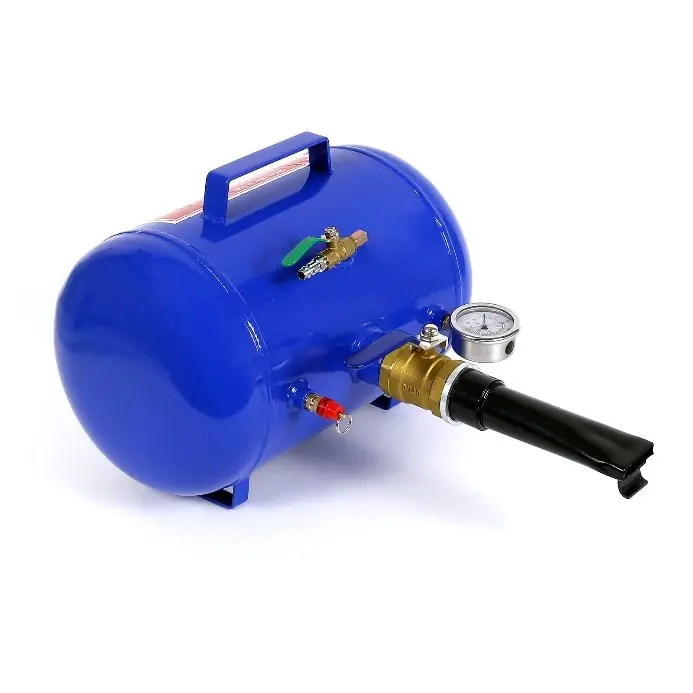

Operation Manual for XPOtool Tyre Booster 19L/38L

Quick guide from the manual

The XPOtool Tyre Booster is designed to assist in inflating tubeless tyres. It works by releasing a sudden, high-speed burst of air into the tyre, creating a vortex that seals the leak between the tyre bead and the rim edge, allowing the tyre to be inflated to the desired pressure.

Safety instructions

• Compressed air: Fill the booster only with clean, dry, and oil-free compressed air.
• Pressure limits: The reservoir is equipped with a pressure control valve that opens at approximately 10 to 12 bar. Do not exceed the specified maximum pressure.
• Personal protection: Always wear hearing protection, as the abrupt deflation process produces noise levels exceeding 100 dB. Wear protective goggles to prevent eye injuries from splinters, dust, or rust particles.
• Handling: Never point the tyre booster at other people. Do not modify the air tank or components.
• Environment: Fill the tank only at normal ambient temperatures and avoid temperature fluctuations.

Application

1. Close the locking valve and filling valve, then connect the booster to the compressed air supply.
2. Open the locking valve until the desired air pressure is reached (pressure release valve opens at >10 bar).
3. Place the inflation cone with its flange on the rim.
4. Inflate the tyre by opening the inflation valve impulsively.
5. Tip: For better results, inflate the tyre with a standard tyre inflator at the same time via the normal rim valve.
6. Angle: Ensure the angle of the booster to the rim is correct. An angle that is too narrow or steep significantly reduces efficiency.

Storage and maintenance

Leave the filling valve open during storage to allow any moisture to escape. Regularly inspect the tank and all assembled components for cracks or damage. Never attempt to loosen or tighten components while the tank is under pressure.
