This manual provides instructions for the assembly of the Yaheetech 592647 Ocean Themed Cat Tree. Please review the following safety and preparation guidelines before beginning:
- Assembly Time: Approximately 1 hour.
- Personnel: We recommend 1 or more people for assembly.
- Safety: This product is not intended for use by children. Keep away from fire and other heat sources.
- Preparation: Use a protective pad or blanket on the floor to prevent damage to the product or flooring during assembly. We recommend wearing protective gloves.
Parts List
Before starting, ensure all parts are present. The kit includes numbered wooden platforms and components (1-15) and lettered hardware (A-E). Refer to page 4 of the manual for a visual inventory of all components.
Assembly Instructions
Follow these steps in order to assemble the cat tree:
- Step 1: Assemble the base house structure using parts 5, 15, and hardware A.

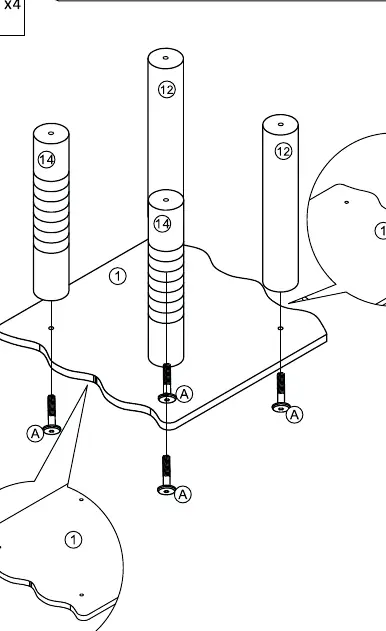

- Step 2: Attach the base platform (1) to the posts (12, 14) using hardware A. Pay attention to the orientation of part 1.

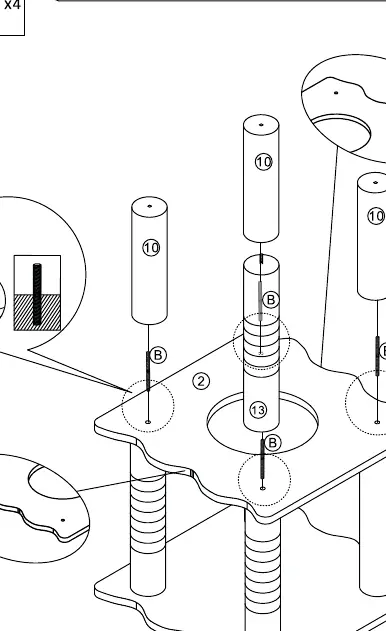

- Step 3: Install the middle platform (2) onto the posts (10, 13) using hardware B.

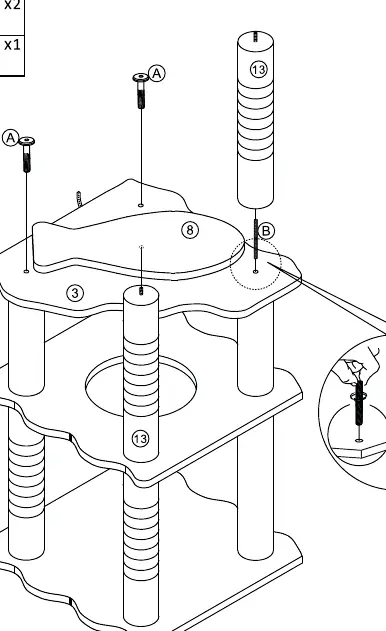

- Step 4: Attach the fish-shaped platform (8) and the top platform (3) using hardware A and B.
- Step 5: Secure the house structure (5) to the platform using hardware C.
- Step 6: Attach the top perch (4), circular bed (7), and post (11) using hardware A.
- Step 7: Install the shark-themed top piece (9) and the hanging bed (6) onto the structure.

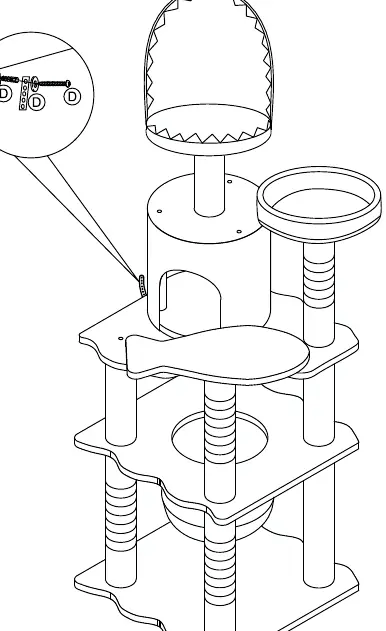

- Step 8: Secure the cat tree to the wall using the provided wall anchor kit (D) to ensure stability.
Manufacturer information
Yaheetech
Practical help
Common problems
Instability or wobbling
Ensure all screws are fully tightened and the wall anchor (part D) is correctly installed to secure the unit to the wall.
Missing parts
Verify all parts against the list on page 4. If parts are missing, contact the seller through your order history.
Before use
- Clear a workspace of at least 1 hour.
- Ensure at least one other person is available to assist.
- Lay down a protective pad or blanket to protect the floor.
- Wear protective gloves during assembly.
- Verify all parts (1-15) and hardware (A-E) are present.
Specs in practice
- Assembly Time
- Estimated 1 hour for completion.
Images and diagrams
- The manual uses numbered parts (1-15) and lettered hardware (A-E) to identify components.
- Step 8 provides a detailed view of the wall anchoring process.
