AcuRite 02348HD Rain Chain Installation Guide
A comprehensive installation guide for the AcuRite 02348HD Rain Chain. Includes step-by-step assembly instructions, package contents, and tips for stabilizing the chain in strong winds.
Table of contents
Quick guide from the manual
This guide provides the necessary steps to install your AcuRite 02348HD Rain Chain. Before beginning, ensure you have measured the distance from your gutter to the ground to determine the required length. The installation involves removing your existing downspout and assembling the rain chain components.

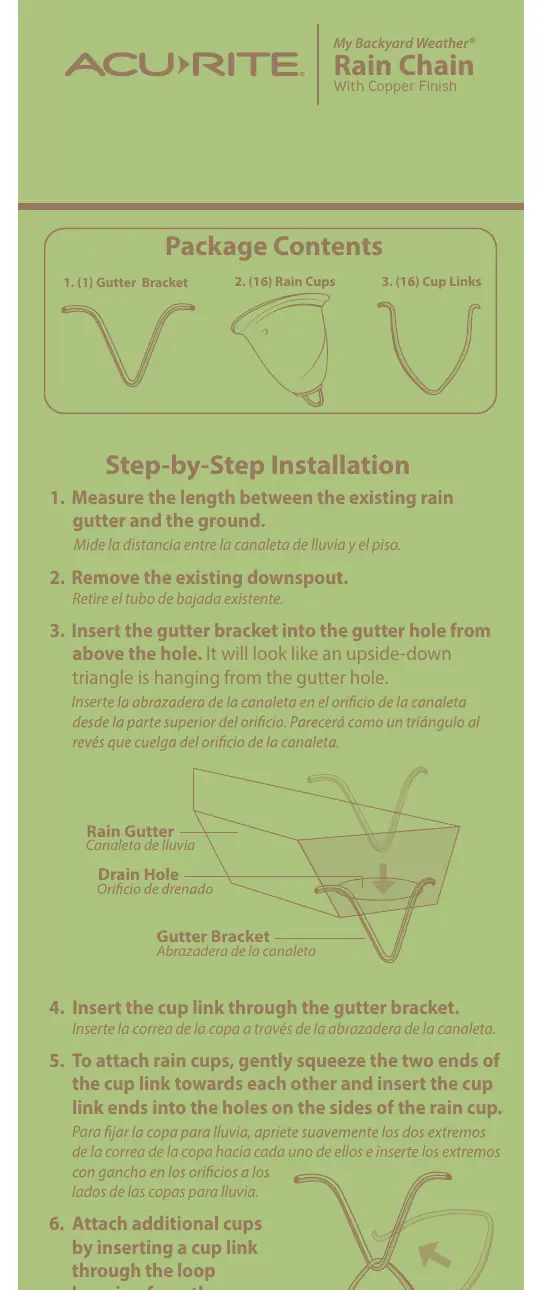

Package Contents
- 1 Gutter Bracket
- 16 Rain Cups
- 16 Cup Links
Installation
- Measure: Determine the length between the existing rain gutter and the ground.
- Remove: Take down the existing downspout.
- Bracket: Insert the gutter bracket into the gutter hole from above. It should hang like an upside-down triangle.
- Link: Insert the cup link through the gutter bracket.
- Attach Cups: Gently squeeze the two ends of the cup link towards each other and insert the ends into the holes on the sides of the rain cup.
- Assemble: Attach additional cups by inserting a cup link through the loop hanging from the bottom of the previously assembled rain cup.
- Repeat: Continue steps 5 and 6 until the chain reaches the desired length.
Stabilization
If you live in an area with strong winds, you can stabilize the rain chain by securing the bottom of the chain into the ground.
Compatibility
If additional length is required beyond the 16 included cups, you may attach a second chain (not included) to the loop of the last cup.
Manufacturer information
AcuRite
Practical help
Common problems
Chain is too short for the distance to the ground
Attach a second chain (not included) to the loop of the last cup.
Chain swings excessively in strong winds
Secure the bottom of the rain chain into the ground to stabilize it.
Before use
- Measure the distance between the rain gutter and the ground.
- Remove the existing downspout.
- Verify package contents: 1 gutter bracket, 16 rain cups, and 16 cup links.
Images and diagrams
- The gutter bracket must be inserted from above the gutter hole, forming an upside-down triangle shape.
- Cup links are attached by squeezing the ends together and inserting them into the side holes of the rain cups.
- Additional cups are connected by threading a link through the loop at the bottom of the previous cup.
Model compatibility
- The system supports extending the length by attaching a second chain (not included) to the bottom loop.
