User Manual for AREBOS Industry Vacuum Cleaner 1600W
Quick guide for the AREBOS Industry Vacuum Cleaner 1600W. Learn how to assemble, operate, clean, and troubleshoot your vacuum cleaner, including specific instructions for wet and dry vacuuming.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This vacuum cleaner is designed for domestic use. Before operating, ensure the dust container and appropriate filter are correctly installed. Always unplug the device before maintenance. Note that the paper filter bag and HEPA filter are strictly for dry vacuuming and must be removed before wet vacuuming.
Description of the device

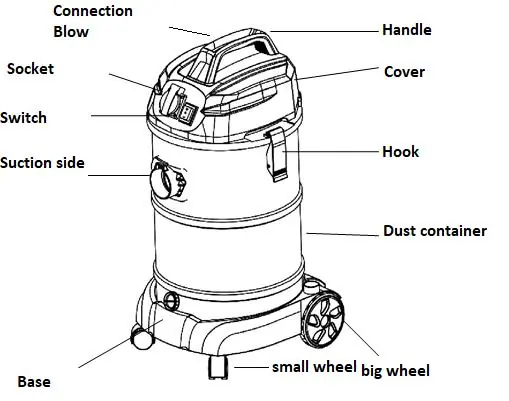

The vacuum cleaner features a main handle, a power switch, a built-in socket for power tools (max 1000W), a suction side, and a blower connection. The unit is supported by a base with small and big wheels for mobility.
Assembly
Wheels: Attach the rear wheels to the base, then push the front wheels into the base.
Dust filter and container: Install the HEPA filter on the filter basket. Place the paper filter bag inside the collection container. Attach the top of the vacuum cleaner to the collection container and secure it with the side hooks.
Flexible hose and accessories: Insert the end of the flexible hose into the suction hole until it snaps into position. Attach the desired brush or nozzle to the hose.
Operation
Power ON/OFF: Use the switch to turn the device to position 'I' (ON) or 'O' (OFF).
Additional socket: You can connect power tools with a maximum power consumption of 1000W to the built-in power outlet.
Dry vacuuming: Ensure the HEPA filter and paper filter bag are installed. Unwind the power cord and connect the hose.
Wet vacuuming: Remove the paper filter bag and HEPA filter. Install the foam filter before proceeding with wet vacuuming.
Maintenance and cleaning
Filter cleaning: Release the handle to access the filter. Remove the HEPA filter and knock off the ash. If necessary, wash the HEPA filter in water, but ensure it is completely dry before re-installation. Do not dry the filter in direct sunlight.
General cleaning: Clean the surface with a soft, dry cloth. Never use water, detergents, gasoline, or thinners to clean the appliance.
Troubleshooting
- Motor does not start: Check if the power cord is firmly plugged in, check the outlet, or ensure the cleaner is switched on.
- Suction power is weak: Check if the unit is clogged, clean the cloth or paper filter bag, or ensure the collection container is properly positioned.
Technical data
- Model: AR-HE-SS1600B/R/Y
- Nominal voltage: 220-240 V AC
- Nominal frequency: 50/60 Hz
- Maximal power: 2600 W
- Rated output: 1600 W
- Outlet: 1000 W
- Operating pressure: ≥ 20 kPa
- Volume:< 82 dB (A)
- Protection class: IP 24, Class 1
Manufacturer information
AREBOS GmbH
Practical help
Common problems
Motor does not start
Check if the power cord is firmly plugged into the outlet, check if the outlet is damaged, or ensure the cleaner is switched on.
Suction power is weak
Check for blockages, clean the cloth or paper filter bag, or ensure the collection container is properly attached.
Before use
- Ensure the dust container and filter are correctly installed.
- Check that the hose is securely snapped into the suction hole.
- Verify the correct filter is installed (HEPA for dry, foam for wet).
- Check the power cord for damage.
- Ensure the collection container is properly secured with hooks.
Specs in practice
- Rated output (1600 W)
- The power consumption of the vacuum cleaner during normal operation.
- Outlet (1000 W)
- Maximum power capacity for power tools connected to the built-in socket.
- Protection class (IP 24)
- Indicates the level of protection against solid objects and water splashes.
Images and diagrams
- The device includes a suction side for the hose, a blower connection, and a built-in power socket for tools.
- The base is equipped with both small and large wheels for stability and movement.
Model compatibility
- Paper filter bag and HEPA filter are NOT suitable for wet vacuuming.
- Use foam filter for wet vacuuming.
