Bauer 1959C-B Dual Power Portable Fan
A comprehensive user guide for the Bauer 1959C-B Dual Power Portable Fan. This guide covers setup, dual power options (20V battery or 120V AC), mounting instructions, operation, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- The Bauer 1959C-B is a dual-power portable fan that operates on either a 20V Bauer battery or 120V AC power. It features two speed settings (Low/High) and multiple mounting options including freestanding, hook, wall, and rail mount. p. 8, 9
Key actions
- Insert battery or connect AC cord to power the fan. p. 9
- Mount the fan using keyholes, hanging slots, or hook. p. 9
First start
- Charge the battery, insert it into the fan, and use the power switch to select Low or High speed. p. 9
Problems and fixes
Fan will not turn on
Check power connection, battery charge, or thermal reset breaker.
p. 10Maintenance and reset
- If the thermal reset breaker trips, turn off the tool, allow it to cool, and press the reset button. p. 10
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Battery | 20V Li-ion | Bauer 20V system | p. 8 |
| AC Power | 120VAC / 60Hz / 1.4A | Standard corded operation | p. 8 |
Where to find it in the PDF
- Safety Information p. 2, 3, 4, 5
- Setup and Operation p. 8, 9
- Maintenance and Parts p. 10, 11
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

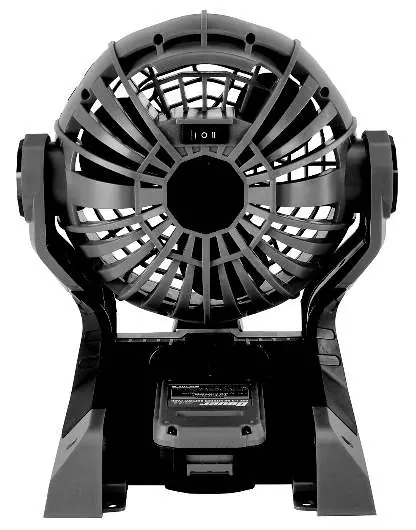

The Bauer 1959C-B is a dual-power portable fan designed to operate using either a 20V Bauer Lithium battery or a 120V AC power source. Before use, ensure the product is intact and undamaged. Always read the safety warnings before operation.
Safety Information
- General Safety: Keep work area clean and well-lit. Do not operate in explosive atmospheres. Keep children and bystanders away.
- Electrical Safety: Do not modify plugs. Do not expose to rain or wet conditions.
- Battery Safety: Recharge only with the manufacturer-specified charger. Keep battery packs away from metal objects to prevent shorting. Do not incinerate or expose to temperatures above 140°F.
- Fan Safety: Do not use with solid-state speed control devices. Do not leave unattended. Do not use in windows (rain hazard). Use only in dry areas.
Setup and Power Supply
The fan offers two power options:
- Battery Pack: Insert a fully charged 20V Bauer battery into the back of the fan until it clicks securely into place.
- 120VAC Extension Cord: Remove the battery pack. Connect an extension cord to the 120VAC input on the back of the fan and plug the other end into a grounded 120VAC outlet.
Fan Placement and Mounting
The fan can be positioned in several ways:
- Freestanding: Place on a flat surface.
- Hook: Lift the hook from the slot and hang in the selected location.
- Wall Mount: Install a 2x6 across wall studs. Measure the distance between the four keyholes on the fan, drill holes in the 2x6, and drive screws leaving 1/4" of threads exposed. Place the fan keyholes over the screws and pull down to lock.
- Rail Mount: Use the hanging slots to hang the fan over a rail.
Always rotate the fan head to the desired position after mounting.
Operation
The power switch is located on the fan head:
- LOW: Press the switch to the left.
- HIGH: Press the switch to the right.
- OFF: Set the switch to the middle position.
After use, remove the fan from its mount, unplug or remove the battery, clean, and store indoors.
Maintenance and Cleaning
- Inspection: Before each use, check for loose hardware, damaged cords, or battery issues.
- Cleaning: Wipe external surfaces with a clean cloth. Periodically blow dust off the blades using dry compressed air (wear safety goggles).
- Storage: Store in a dry, indoor area out of reach of children.
Troubleshooting
- Fan will not turn on: Check if the cord is plugged in or the battery is properly connected/charged. Check for power at the outlet. If the thermal reset breaker has tripped, allow the tool to cool and press the reset button.
Technical Specifications
- Battery Rating: Bauer 20V Li-ion (sold separately)
- Cord-connected Electrical Rating: 120VAC / 60Hz / 1.4A
Practical help
Common problems
Fan will not turn on
Check power source (outlet or battery connection). Ensure battery is charged. If the thermal reset breaker tripped, allow the fan to cool and press the reset button.
Before use
- Inspect the tool for damaged cords, loose hardware, or cracked parts.
- Ensure the battery pack is fully charged.
- Verify the mounting surface is sturdy enough to support the fan and battery.
- Ensure the work area is dry and free of flammable liquids or gases.
Specs in practice
- Battery Rating
- Requires Bauer 20V Li-ion battery (sold separately).
- Electrical Rating
- 120VAC / 60Hz / 1.4A when using corded power.
Images and diagrams

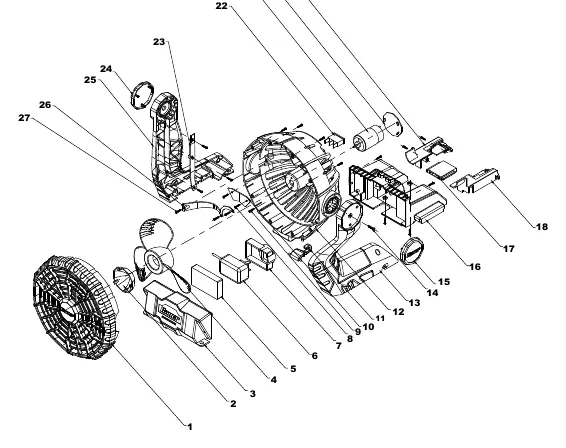

- The parts diagram on page 11 identifies components like the front housing, impeller, motor, and switch for maintenance reference.
Model compatibility
- Do not use with solid-state speed control devices.
- Use only in dry areas; do not use in bathrooms or near sinks.
- Requires 20V Bauer battery system.
