User Manual for Burnhard Barney Deluxe 2-Burner Gas Grill
Comprehensive user guide for the Burnhard Barney Deluxe 2-burner gas grill. Includes detailed assembly instructions, gas connection procedures, safe operation guidelines, cleaning, maintenance, and troubleshooting tips.
Quick answers from the manual
Quick answer
- The Burnhard Barney Deluxe is a 2-burner gas grill. It must be used outdoors only. Assembly requires following the 21 steps provided, and a leak test is mandatory after every gas cylinder change. p. 23, 47
Key actions
- Perform a leak test p. 22, 46
- Ignite burners p. 23, 47
- Clean cast iron grates p. 24, 48
First start
- Clean lid and firebox with wet cloth, burn off residues for 30 minutes without food, then scrub grates. p. 22, 46
Problems and fixes
Burner does not ignite
Check gas cylinder, pressure regulator, and clean burner/ignition.
p. 26, 50Maintenance and reset
- Clean the grill every 3-4 months and perform burn-off after every use. p. 25, 49
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Total Power | 11 kW | Total heat output. | p. 4, 28 |
| Outlet Pressure | 29 mbar | Operating pressure. | p. 4, 28 |
Where to find it in the PDF
- Assembly Instructions p. 10, 34
- Gas Connection p. 21, 45
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Burnhard Barney Deluxe is a 2-burner gas grill designed for outdoor use only. Before first use, clean the lid and firebox with a wet cloth, then burn off production residues for 30 minutes with the lid closed. Always perform a leak test after connecting a new gas cylinder.
Safety Instructions
- Outdoor Use Only: Never use the grill inside a building, garage, or enclosed area.
- Gas Safety: Always perform a leak test using soapy water on all connections when changing the gas cylinder.
- Heat Safety: The grill radiates heat. Maintain minimum distances: 60 cm behind, 50 cm to the side, and 100 cm above.
- Operation: Never leave the grill unattended while in use. Always keep the lid open when igniting the burners.
Assembly
The assembly process involves 21 steps, including constructing the base cabinet, attaching wheels, installing the side burner, and mounting the main body. Wear safety gloves during assembly to avoid injury from sharp edges.
Gas Connection

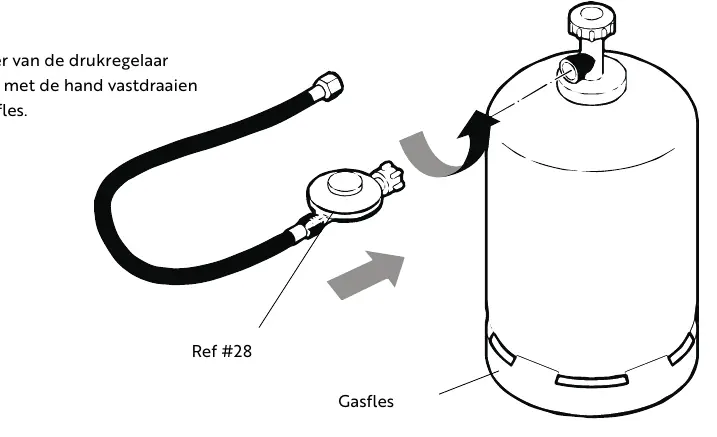

The grill uses a CE-approved pressure regulator (29 mbar). Connect the gas hose to the grill and the regulator to the gas cylinder. Tighten the regulator connection to the cylinder by hand only to avoid damaging the seal. The gas cylinder must be stored outside the grill during operation.
Operating the Grill

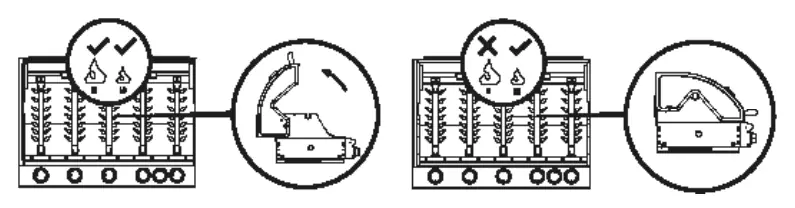

To ignite: Open the lid, turn the control knob to 'HI', and press/hold until the burner ignites. If it fails, wait 5 minutes before trying again. The infrared ceramic burner in the side table requires an AA battery for the electric igniter.
Cleaning and Maintenance
- After Each Use: Burn off residues for 15-25 minutes on 'HI', then scrub the grates with a stainless steel brush.
- Cast Iron Grates: These should be 'burned-in' to create a protective patina. Clean with warm soapy water, grease with oil, and burn for 45 minutes at high heat.
- Infrared Burner: Do not clean with water or detergents. If residues fall on it, burn them off at high heat for 10-15 minutes.
Troubleshooting
If the burner does not ignite, check if the gas cylinder is empty, the pressure regulator is faulty, or if there are impurities in the burner or ignition system. If the infrared burner fails, ensure the spark transmitter is close enough to the ceramic stone.
Manufacturer information
Burnhard
Practical help
Common problems
Burner does not ignite
Check if the gas cylinder is empty, the pressure regulator is faulty, or if there are impurities in the burner or ignition system.
Small flame or flash fire in the burner
Clean the burner and ignition system.
Infrared ceramic burner does not ignite or goes out
Ensure the spark transmitter is close enough to the ceramic stone and check for excessive wind.
Before use
- Check gas connections for cracks, wear, or tears.
- Ensure the grill is on a flat, stable, and fire-resistant surface.
- Ensure the grill is in a well-ventilated outdoor area.
- Perform a leak test after every gas cylinder change.
- Ensure the lid is open before igniting the burners.
- Check that the gas cylinder valve is closed when not in use.
Specs in practice
- Outlet Pressure
- 29 mbar, required for proper operation.
- Max Hose Length
- 1.5 meters.
Images and diagrams

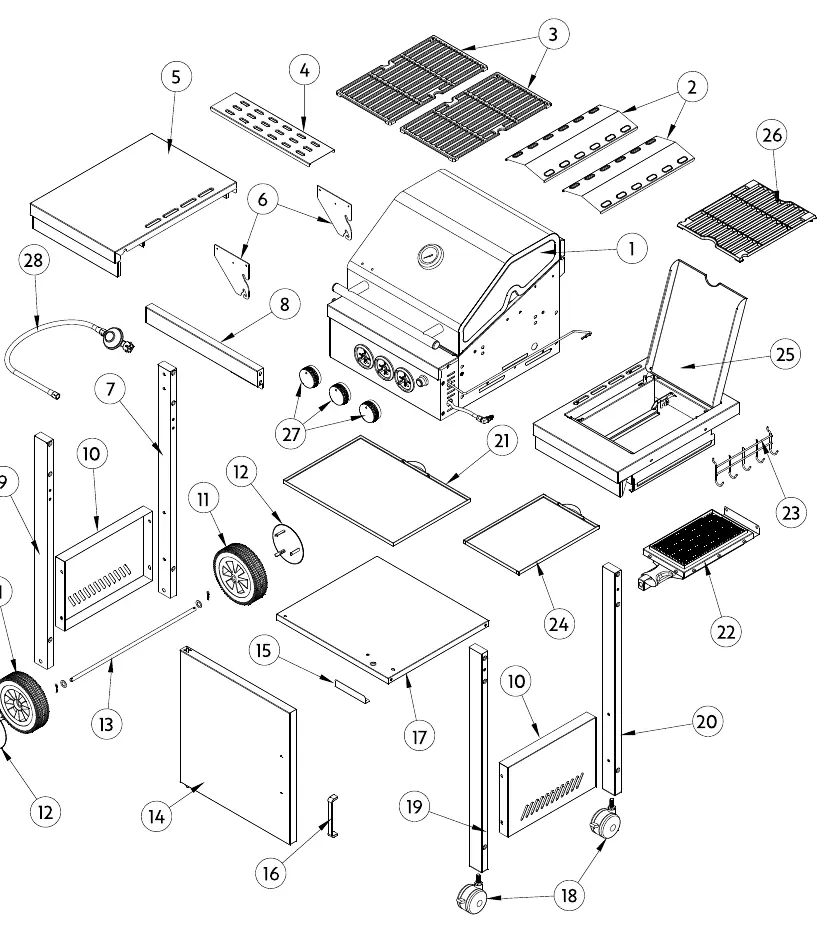

- Assembly diagrams (Steps 1-21) illustrate the construction of the trolley, side tables, and burner installation.
- Gas connection diagram shows the correct attachment of the regulator to the cylinder and the grill.
Model compatibility
- Use only with a CE-approved pressure regulator (29 mbar).
- Gas cylinder must be stored outside the grill during operation to prevent heat damage.
