User Manual for Char-Broil Performance 2-Burner Gas Grill
Quick guide for the Char-Broil Performance 2-Burner Gas Grill. Includes assembly steps, safety warnings, LP cylinder handling, lighting procedures, cleaning, and troubleshooting.
Quick answers from the manual
Quick answer
- This manual provides assembly, operation, and maintenance instructions for the Char-Broil Performance 2-Burner Gas Grill (Model 463673617). p. 1
Key actions
- Perform a leak test before first use and after every cylinder exchange. p. 5, 6, 14, 15
- Clean the burner assembly if the grill is hard to light. p. 9, 18, 27
First start
- Assemble the grill, perform a leak test, and pre-heat on high for 15-20 minutes to remove manufacturing oils. p. 29, 40, 44
Problems and fixes
Burner will not light
Check gas supply, ensure burner is engaged with valve, check electrode position, or replace battery.
p. 52, 53, 56, 57Maintenance and reset
- Reset the gas regulator safety device by disconnecting and reconnecting the regulator to the LP tank. p. 40, 44, 48
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| LP Cylinder Size | 12" diameter x 18" tall | Required dimensions for LP cylinder. | p. 4, 13, 22 |
Where to find it in the PDF
- Assembly Instructions p. 29, 39
- Troubleshooting p. 52, 57
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the assembly, safe operation, and maintenance of the Char-Broil Performance 2-Burner Gas Grill. Before using the grill, ensure it is properly assembled and leak-tested. Always operate the grill outdoors in a well-ventilated area.
Safety Warnings
- Gas Leaks: If you smell gas, shut off the gas supply, extinguish open flames, and open the lid. If the odor persists, move away from the appliance and call your fire department.
- Grease Fires: Do not use water on a grease fire. Turn off knobs and the LP cylinder. Regular cleaning of the grill and burner assembly is the best prevention.
- Propane Handling: Never store a spare LP cylinder under or near the grill. Never fill a cylinder beyond 80% capacity.

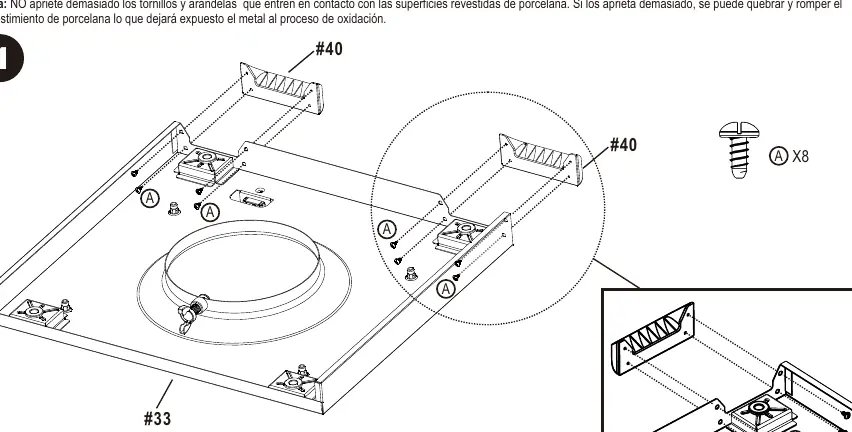

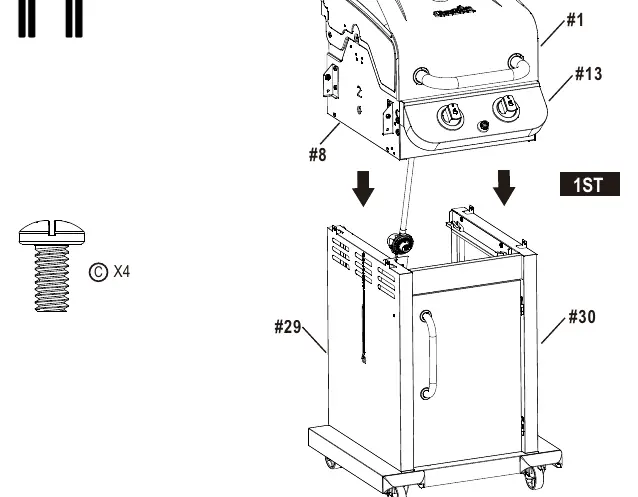

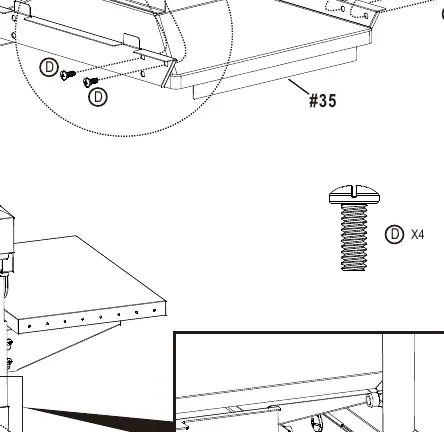

Assembly
The grill requires assembly. Follow the 16 steps outlined in the manual. Ensure all screws and washers are tightened, but do not over-tighten on porcelain-coated surfaces to prevent cracking.
Operation
Lighting Instructions
- Ignitor Lighting: Open the lid, turn gas on at the LP cylinder, push and turn the ignition burner knob to HIGH, and immediately press the electronic ignitor button until the burner lights.
- Match Lighting: If the ignitor fails, use a long-stem match placed in the match holder, insert it through the side hole, and turn the burner knob to HIGH.
Flame Check
Always check burner flames before each use. The flame should be smaller in the LOW position than in the HIGH position.
Cleaning and Maintenance

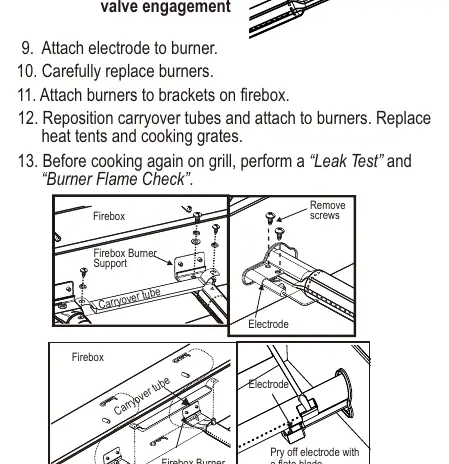

Cleaning the Burner Assembly
If the grill is hard to light or the flame is weak, clean the venturis and burners to remove spider webs or debris. Use a stiff wire, a narrow bottle brush, or compressed air to clean the burner tubes.
General Cleaning
Clean cooking grates after each use. Use mild detergent and warm water for plastic and painted surfaces. For stainless steel, use a soft cloth and stainless steel cleaner.
Troubleshooting
If the grill does not light, check the gas supply, ensure the burner is properly engaged with the valve, and verify the electrode position. If gas flow is low, reset the regulator safety device by disconnecting and reconnecting the regulator to the LP tank.
Practical help
Common problems
Burner will not light
Check gas supply, ensure burner is engaged with the control valve, check electrode position, or replace the battery.
Sudden drop in gas flow
Check if the LP cylinder is empty or if the excess flow valve has tripped. Reset by disconnecting and reconnecting the regulator.
Grease fire
Turn off all control knobs and the LP cylinder valve. Leave the lid open and let the fire burn out.
Before use
- Ensure the grill is assembled correctly.
- Perform a leak test on all gas connections.
- Check burner tubes for obstructions like spider webs.
- Ensure the LP cylinder is full and upright.
- Remove all packaging materials.
Specs in practice
- Side burner/shelf load
- Maximum weight capacity is 10 lbs.
Images and diagrams
- Assembly steps 1-16
- Parts diagram
- Regulator connection
- Burner cleaning procedure
Model compatibility
- For outdoor use only.
- Not for commercial cooking.
- Use only with LP (propane) gas.
