User Guide for Certa 20000MAH 3000A Portable Jump Starter

Quick guide for the Certa 20000MAH 3000A Portable Jump Starter (CTJMPSTC30A). Learn how to charge, jump start a vehicle, use the power bank, and understand LED indicators.

Quick answers from the manual

Quick answer

  • The Certa 20000MAH 3000A Portable Jump Starter is designed to jump start 12V vehicles (petrol up to 7.0L, diesel up to 4.5L) and charge electronic devices via USB. p. 1, 6

Key actions

  • Jump starting a vehicle p. 6
  • Charging the jump starter p. 5

First start

  • Charge the jump starter for at least 3 hours before first use. p. 3, 5

Problems and fixes

Reverse polarity protection

Red/black clamps are reversed; reconnect correctly.

p. 7
Short circuit protection

Clamps are short-circuited; separate them.

p. 7

Maintenance and reset

  • Charge the battery of this jump starter at least once every three months. p. 9

Technical specifications

Parameter Value Meaning Pages
Capacity 20,000mAh Total battery capacity p. 9
Dimensions 209x107x56.4mm Physical size p. 9

Where to find it in the PDF

  • Safety & Warnings p. 3
  • Components & Overview p. 4
  • Operation p. 5, 6
  • Battery Clamp LED Display p. 7, 8
  • Specifications p. 9
Table of contents

Manual images

Click an image to enlarge
Product Overview Page 4 Ports detail Page 4 Jump start connection steps Page 6

Quick guide from the manual

This guide provides essential instructions for operating the Certa 20000MAH 3000A Portable Jump Starter. Before first use, ensure the unit is charged for at least 3 hours. For normal operation, always confirm the unit has at least 50% power before attempting to jump start a vehicle.

Safety & Warnings

  • Do not use the jump starter if any cable, clamp, or cord is damaged.
  • Do not connect both cable clamps to the same piece of metal.
  • Do not use to start a bulging or damaged car battery.
  • Do not disassemble or modify the unit.
  • Keep away from children and pets.
  • Do not expose to fire or extreme heat.
  • Allow at least 30 seconds to 1 minute between jump start attempts.
  • Do not use if battery power is less than 10%.

Components & Overview

The package includes the jump starter, battery clamp, USB-C charging cable, user guide, and a carry bag. The device features a display, wireless charging pad, jump start output, USB-C input/output, Micro USB input, USB-A outputs, power button, light button, and an LED flashlight.

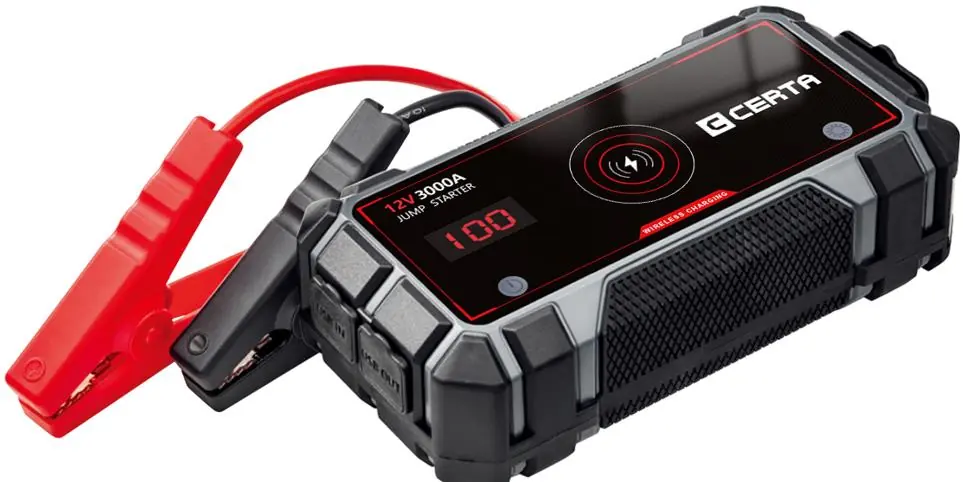

Product Overview
Product Overview
Ports detail
Ports detail

Charging the Jump Starter

  1. Connect a USB power adapter (not provided) to an electrical outlet.
  2. Connect the charging cable into the USB-C input on the jump starter and the other end into the power adapter.
  3. Press the power button to switch the unit on; the display will show the charging percentage.
  4. Unplug the cable when charging is complete.

Jump Starting a Vehicle

  1. Insert the battery clamp plug completely into the jump starter.
  2. Press the power button.
  3. Connect the red clamp to the positive (+) terminal and the black clamp to the negative (-) terminal of the car battery.
  4. Start the vehicle.
  5. Once started, remove the clamps from the battery, then remove the clamps from the jump starter.

Note: This device is for 12V vehicles only (petrol engines up to 7.0L or diesel engines up to 4.5L).

Jump start connection steps
Jump start connection steps

Power Bank & Flashlight

To use as a power bank, connect your device via USB cable and press the power button. To use the flashlight, press the power button, then the light button. Press the power button to cycle through modes: Solid, Flash, SOS, and Off.

Battery Clamp LED Display

The battery clamps provide status and error indicators:

  • Standby: Symbol rotates left to right.
  • Low voltage protection: Symbol flashes; charge the unit.
  • Reverse polarity protection: Symbol flashes; check clamp connections.
  • Short circuit protection: Symbol flashes; ensure clamps are not touching.
  • Timeout protection: Occurs if connected for more than 30 seconds.

Cleaning & Care

  • Store in a shaded, well-ventilated area.
  • Do not use detergents.
  • Operating temperature: -20°C to 60°C.
  • Storage temperature: Must not exceed 50°C.
  • Charge the battery at least once every three months.

Practical help

Common problems

Jump starter won't start vehicle

Ensure battery power is above 50% and the vehicle is a 12V model with petrol engine up to 7.0L or diesel up to 4.5L.

Reverse polarity protection active

Check that red clamp is on positive (+) and black clamp is on negative (-) terminal.

Low voltage protection

The jump starter battery is too low; charge the unit.

Before use

  • Charge the unit for at least 3 hours before first use.
  • Ensure the unit has at least 50% power before attempting to jump start.
  • Check that all cables and clamps are undamaged.
  • Verify the vehicle is a 12V model.

Specs in practice

USB-C input/output
Supports PD60W fast charging for devices and the jump starter itself.

Images and diagrams

  • The overview diagram identifies the display, wireless charging pad, jump start output, and various USB ports.
  • The jump start procedure diagram shows the correct order of connecting clamps to the battery and the jump starter.

Model compatibility

  • Compatible with 12V vehicles.
  • Petrol engines up to 7.0L.
  • Diesel engines up to 4.5L.
