Owner's Manual for Champion 196cc Replacement Engine 100220

Quick guide for the Champion 196cc Replacement Engine (Model 100220). Includes setup, operation, maintenance, troubleshooting, and technical specifications.

Quick answers from the manual

Quick answer

The Champion 196cc Replacement Engine (100220) is a gasoline-powered engine. Key operations include adding 10W-30 oil, adding regular unleaded fuel (85 octane), and following the starting procedure using the choke, throttle, and recoil starter. p. 8, 9, 10, 11

Key actions

Starting the engine p. 11
Changing the oil p. 9, 12

First start

Add oil and fuel before first use. p. 9, 10

Problems and fixes

Engine will not start

Add fuel or replace faulty spark plug.

p. 14

Technical specifications

Parameter	Value	Meaning	Pages
Displacement	196 cc	Engine size	p. 15
Fuel Capacity	0.9 gallons (3.4 L)	Fuel tank volume	p. 15
Oil Capacity	0.6 qt. (0.6 L)	Oil reservoir volume	p. 15

Where to find it in the PDF

Controls and Features p. 8
Maintenance Schedule p. 13

Table of contents

Quick guide from the manual

The Champion 196cc Replacement Engine (Model 100220) is a gasoline-powered engine designed for various applications. This manual covers essential safety, assembly, operation, and maintenance procedures. Always operate the engine outdoors in a well-ventilated area to prevent carbon monoxide poisoning. Ensure the engine is on a level surface before operation.

Controls and Features

Familiarize yourself with the following key components:

Muffler: Exhaust outlet.
Fuel Tank: 0.9 gallons (3.4 L) capacity.
Fuel Valve Knob: Turns fuel supply On/Off.
Engine Switch: Turns engine On/Off.
Recoil Starter: Used to start the engine.
Throttle: Controls engine speed.
Choke Lever: Used for cold starts.
Oil Filler Cap/Dipstick: For checking and filling oil.
Oil Drain Bolt: For draining oil.
Air Cleaner: Filters intake air.

Assembly

Add Engine Oil

The engine requires 10W-30 automotive oil. The capacity is 0.6 qt. (0.6 L). Do not overfill. Check oil level daily. The engine features a low oil shut-off sensor.

Add Engine Fuel

Use clean, fresh, regular unleaded gasoline with a minimum octane rating of 85 and less than 10% ethanol. Do not mix oil with fuel. Leave at least 1/4 inch of space in the tank for fuel expansion.

Operation

Starting the Engine

Ensure the engine is on a flat, level surface.
Flip the engine switch to the "ON" position.
Rotate the fuel valve to the "ON" position.
Move the throttle lever to the "Fast" position.
Move the choke lever to the "Choke" position.
Pull the starter cord slowly until resistance is felt, then pull rapidly.
As the engine warms up, move the choke lever to "Run."

Stopping the Engine

Turn the fuel knob to the "Off" position.
Let the engine run until it stops due to fuel starvation.
Turn the engine switch to the "Off" position.

Maintenance

Regular maintenance is essential for engine longevity. Follow the schedule below:

Every 8 hours/daily: Check oil level, clean around air intake and muffler.
First 5 hours: Change oil.
Every 50 hours/season: Clean air filter, change oil if operating under heavy load/hot environments.
Every 100 hours/season: Change oil, clean/adjust spark plug, check/adjust valve clearance, clean spark arrester, clean fuel tank and filter.
Every 250 hours: Clean combustion chamber.
Every 3 years: Replace fuel line.

Troubleshooting

If the engine fails to start, check for fuel, ensure the spark plug is not faulty, and verify the oil level. If the engine runs roughly, check the choke position and ensure the spark plug wire is securely attached.

Manufacturer information

Champion Power Equipment

Brand profile

Manufacturer website https://www.championpowerequipment.com Support https://help.championpowerequipment.com Manufacturer manuals https://www.championpowerequipment.com/product-manuals-diagrams

Practical help

Common problems

Engine will not start

Check for fuel, add fuel if necessary. Check if the spark plug is faulty and replace if needed.

Engine starts but runs roughly

Check oil level (fill if low), ensure engine is on a level surface, adjust choke, and ensure spark plug wire is attached.

Engine shuts down during operation

Check fuel level and fill if empty. Check oil level and fill if low.

Engine overheating or lacks power

Check for air restriction and ensure the engine is in a well-ventilated area.

Before use

Check engine oil level (10W-30).
Check fuel level (Regular unleaded, 85 octane).
Ensure engine is on a flat, level surface.
Check air filter condition.
Ensure spark plug wire is connected.
Ensure fuel valve is in the ON position.

Specs in practice

Displacement: 196 cc engine size.
Fuel Capacity: 0.9 gallons (3.4 L) maximum fuel.
Oil Capacity: 0.6 qt. (0.6 L) maximum oil.
Spark Plug Gap: 0.7 - 0.8 mm (0.028 - 0.031 in.).

Images and diagrams

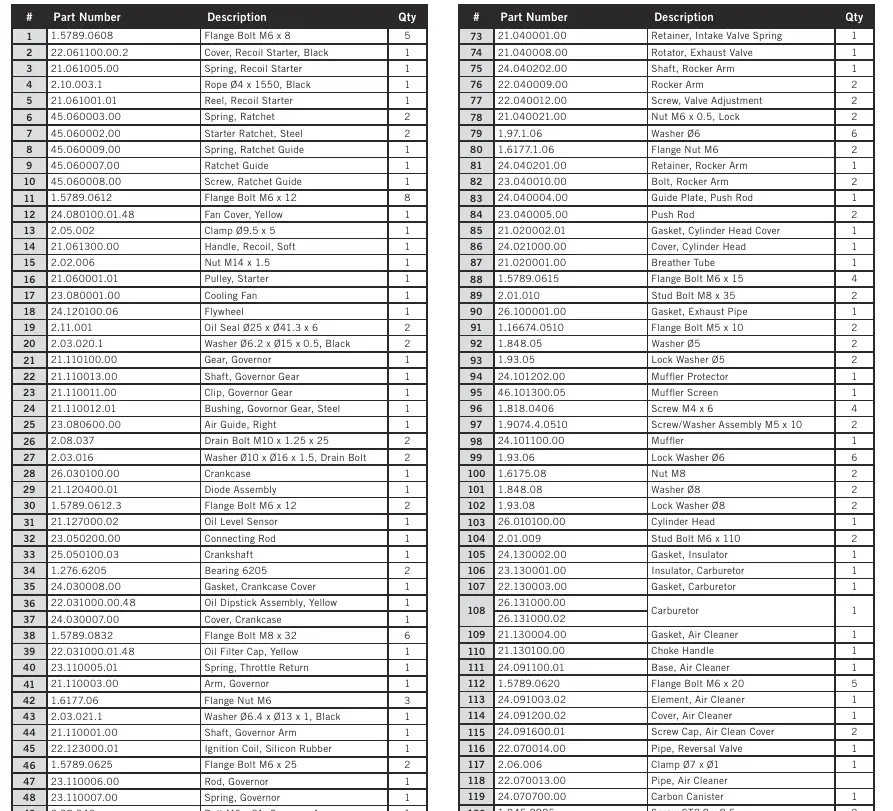

The parts diagram on page 16 provides an exploded view of the engine components for identification and repair.
The controls diagram on page 8 identifies the location of the fuel valve, engine switch, choke, and throttle.

Model compatibility

High altitude operation requires a specific main jet. Contact customer support for the correct part number based on your carburetor code.
