User Manual for CREATE WARM SLIM 1500 Electric Convector
Quick guide for the CREATE WARM SLIM 1500 electric convector. Includes installation steps, wall mounting, app setup, operation, and safety instructions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the CREATE WARM SLIM 1500 electric convector. Key safety precautions include keeping the heater away from combustible materials, not covering the unit, and ensuring proper earth connection. The heater is suitable for well-insulated spaces.
Installation and mounting
The heater can be installed on feet or mounted on a wall.

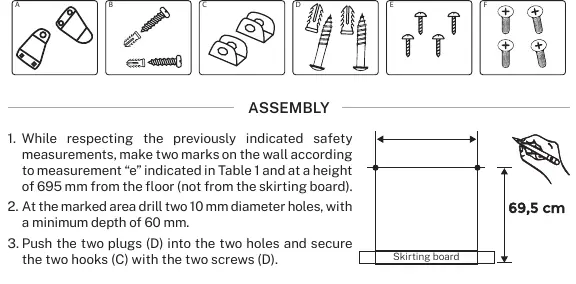

Wall installation
- Select a firm, level location with a nearby socket.
- Mark two points at a height of 695 mm from the floor.
- Drill two 10 mm diameter holes (min. 60 mm deep).
- Secure hooks (C) with plugs (D) and screws (D).
- Attach support brackets (A) to the rear of the heater.
- Hang the heater on the hooks and secure it to the wall.
Installing the feet
- Screw the two feet to the lower rear part of the heater using the four provided screws (F).
Operation
Plug into a 220-240V, 50Hz source and turn on the side switch. Press the power button to start. The LED displays room temperature. Use touch controls or the remote to set power, temperature (5°C-40°C), and timer (1-24 hours).
WiFi function
Download the CREATE Home app. Scan the QR code for your OS. Follow the app instructions to add the device. Ensure the device light is flashing for pairing mode.
Cleaning and maintenance
Wait for the unit to cool down and unplug before cleaning. Use a soft, wet cloth. Do not use abrasives or solvents. Do not submerge in water.
Manufacturer information
Create
Practical help
Common problems
Heater smells new on first use
This is normal. Allow the heater to work in a well-ventilated area for 2-3 hours.
Crackling or heater noises
Temperature fluctuations can cause this; it is not an indication of failure.
Display turns off automatically
This is a normal feature; the display turns off automatically after a few minutes.
Before use
- Check for a nearby mains socket.
- Ensure the heater is on a flat, stable surface (if using feet).
- Verify the wall is firm and level (if wall-mounting).
- Ensure safety distances: 20cm from floor/sides, 50cm from upper shelf.
Specs in practice
- Nominal heat output
- 1.5 KW
- Temperature range
- 5°C to 40°C
- Standby consumption
- 0.00094 KW
Images and diagrams
- Wall mounting requires drilling two 10mm holes at 695mm height.
- Feet installation requires screwing feet to the lower rear part.
Model compatibility
- Suitable for well-insulated spaces or occasional use.
- Not for use in bathrooms unless installed by a qualified electrician.
