DBK KM51 Small Parts Kit for Rider Pedals Installation Guide
Installation and maintenance guide for the DBK KM51 small parts kit for rider pedals on the Ducati Hypermotard 698 Mono. Includes assembly diagrams, parts list, and safety warnings.
Table of contents
Manual images
Click an image to enlargeImportant Information
This document provides installation and maintenance instructions for the DBK KM51 small parts kit designed for the rider pedals of the Ducati Hypermotard 698 Mono. Please note that all DBK products are intended for use on private roads or closed racing tracks and are not homologated for public street use.
Warning: DBK strongly recommends that installation be performed by a qualified mechanic or specialized mechanical store. The company assumes no responsibility for damages resulting from incorrect installation.
Installation
The kit includes specific small parts (MOL026 and RND011). Ensure that the installation is performed on both sides of the motorcycle. Follow the exploded view diagram provided in the manual to remove the original OEM parts and install the new components. Use grease where indicated during assembly. Ensure all fixings are fully tightened after positioning the accessories, without forcing moving parts.
Cleaning and Maintenance
Regular inspection is required to ensure the safety and functionality of the product. The frequency of checks should increase with the intensity of use. If you detect any missing, damaged, or worn parts, consult your DBK dealer immediately before using the motorcycle.
Cleaning Instructions:
- Do not use alkaline degreasers or acids, as they can damage the anodized surface.
- Use only mild soaps.
- Avoid using direct jets from pressure washers.
Practical help
Common problems
Parts missing, damaged, or worn
Consult your DBK dealer immediately before using the motorcycle.
Loose fixings
Perform periodic inspections to ensure all fixings are fully tightened.
Before use
- Verify all parts are present (MOL026, RND011).
- Ensure installation is performed by a qualified mechanic.
- Check that all fixings are fully tightened.
- Apply grease where indicated during assembly.
- Ensure the installation is performed on both sides of the motorcycle.
Images and diagrams

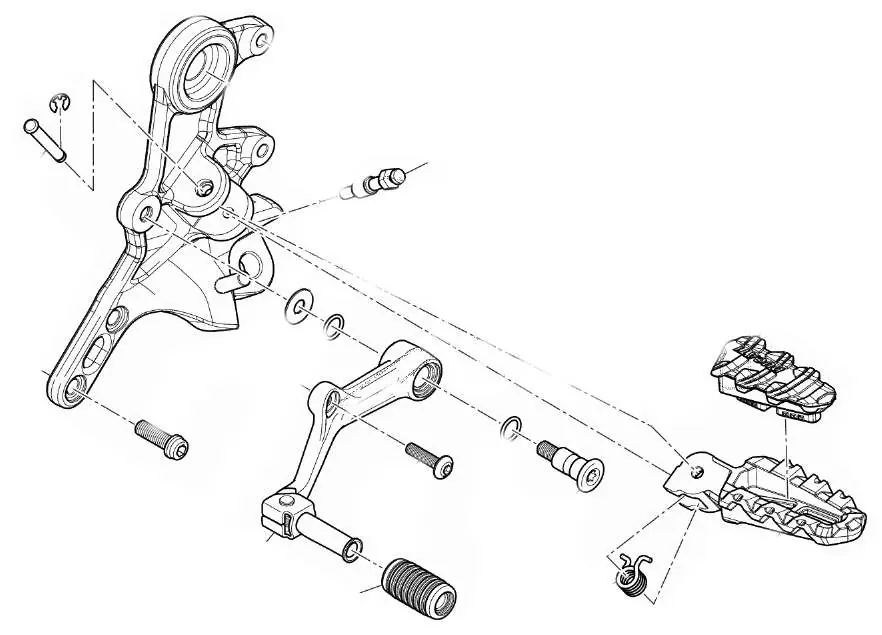

- The exploded view illustrates the removal of OEM parts and the correct positioning of the new kit components.
Model compatibility

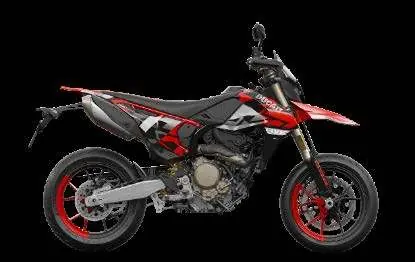

- Designed for Ducati Hypermotard 698 Mono.
- For use on private roads or closed tracks only; not homologated for public street use.
