Quick Start Guide for Dell Inspiron 14 7435 2-in-1 Laptop
Quick start guide for the Dell Inspiron 14 7435 2-in-1 laptop. Includes setup instructions, power adapter specifications, port identification, and safety information.
Quick answers from the manual
Quick answer
- To set up your Dell Inspiron 14 7435 2-in-1, connect the power adapter to the computer and the display if needed, then press the power button to turn it on. p. 9, 10
Key actions
- Power on the computer p. 10
First start
- Connect the power adapter to the computer and display, then press the power button. p. 9, 10
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Output Voltage | 20V DC | Power output to the laptop | p. 8 |
| Output Current | 3.25A | Power output to the laptop | p. 8 |
Where to find it in the PDF
- Quick Start p. 1
- Power Adapter Specs p. 8
- Views/Ports p. 16
Table of contents
Manual images
Click an image to enlargeQuick Start Guide
To set up your Dell Inspiron 14 7435 2-in-1, follow these steps:
- Connect the power adapter or power cable to your computer and to the display, if required.
- Press the power button to turn on the computer (and the display, if connected).
Power Adapter Specifications
The power adapter provided with your computer meets the following specifications:
- Input voltage: 100-240V AC
- Input frequency: 50-60Hz
- Input current (maximum): 1.7A
- Output voltage: 20V DC
- Output current: 3.25A
- Maximum operating temperature: 35°C
Safety and Regulatory Information
Please adhere to the following safety guidelines:
- Computer Cover: Do not remove the computer cover unless you need to install internal accessories. For instructions on removing and replacing parts, refer to the Owner's or Service Manual at Dell.com/support.
- Filler Brackets: Retain the filler brackets or cards that ship with your computer. Installing these over empty card-slot openings is necessary to maintain FCC certification, keep dust and dirt out, and maintain proper airflow for cooling.
- Regulatory Compliance: For additional safety best practices, visit the Regulatory Compliance Homepage at Dell.com/regulatory_compliance.
Port and Icon Reference
Depending on your specific computer configuration, some ports or connectors may not be available. The laptop includes various ports such as:
- USB Ports: Including USB 2.0, USB 3.0/3.1 Gen 1, USB 3.1 Type-C, and USB 3.0/3.1 with PowerShare.
- Thunderbolt: Thunderbolt 3 port with Power delivery (USB-C).
- Video/Display: HDMI, DisplayPort, Mini DisplayPort, and VGA.
- Audio: Headphone/Audio-out, Headset, Microphone, and Line-in/Line-out ports.
- Other: ExpressCard slot, Media-card reader, Security-cable slot, and Screen-rotation lock.
Official resources from the manual
Manufacturer information
Dell Inc.
Practical help
Common problems
Computer cover removal
Do not remove the cover unless installing internal accessories. Refer to the Owner's or Service Manual at Dell.com/support for instructions.
Missing ports or connectors
Availability depends on your specific computer configuration.
Before use
- Verify the power adapter is connected to the computer and the display (if required).
- Ensure the power outlet provides 100-240V AC.
- Check for any filler brackets or cards in empty slots and retain them for FCC compliance.
Specs in practice
- Input voltage
- 100-240V AC, 50-60Hz
- Max operating temperature
- 35°C
Images and diagrams

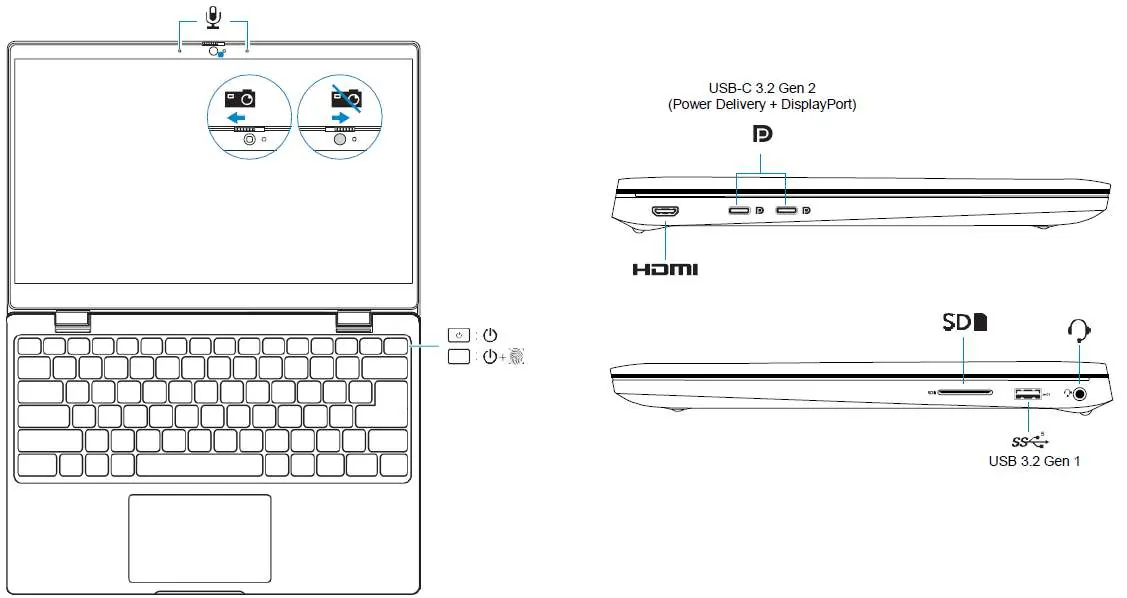

- The laptop features various ports including USB 3.2 Gen 1, USB-C 3.2 Gen 2 (Power Delivery + DisplayPort), HDMI, and an SD card slot.
- The power adapter connects to the DC-in port on the laptop.
Model compatibility
- Some ports or connectors may not be available depending on your specific computer configuration.
