SIM/eSIM Setup Guide for Dell Computers
A comprehensive guide for setting up cellular connectivity on Dell computers. Includes steps for physical SIM installation, eSIM configuration, finding device identifiers like IMEI and ICCID, and troubleshooting network issues on Windows...
Quick answers from the manual
Quick answer
- To set up cellular connectivity, you can either insert a physical SIM card or configure an eSIM via Windows Settings (Start > Settings > Network & Internet > Cellular). Ensure your device supports cellular and you have the necessary activation details from your provider. p. 4, 5
Key actions
- Install physical SIM card p. 4
- Set up eSIM p. 5
- Find device identifiers (IMEI/ICCID/eID) p. 6
Problems and fixes
Cellular connection issues
Check cellular settings in Windows or update drivers via the Dell support website.
p. 7, 8Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| IMEI | Unique number | Identifies modem for WCDMA, LTE, 5G | p. 6 |
| ICCID | Unique number | Identifies SIM profile | p. 6 |
| eID | 32-digit number | Identifies eSIM for profile download | p. 6 |
Where to find it in the PDF
- SIM Installation p. 4
- eSIM Setup p. 5
- Device Information p. 6
Table of contents
Quick guide from the manual
This guide provides instructions for setting up cellular connectivity on Dell computers running Windows 10 or Windows 11. It covers both physical SIM card installation and eSIM configuration, as well as how to locate device identifiers required for service activation.

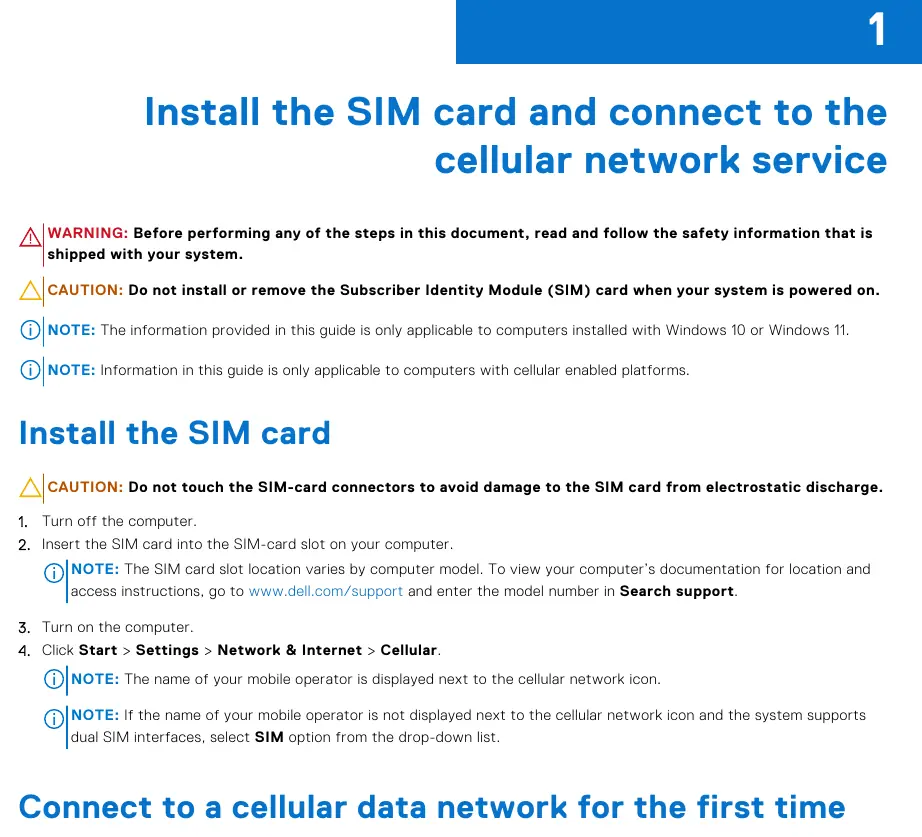

Installing the SIM card
Before installing, ensure the computer is powered off. Do not touch the SIM-card connectors to avoid electrostatic discharge damage.
- Turn off the computer.
- Insert the SIM card into the SIM-card slot. Note that the slot location varies by model; check your specific computer documentation if needed.
- Turn on the computer.
- Navigate to Start > Settings > Network & Internet > Cellular.
- The mobile operator name should appear next to the cellular network icon. If it does not, and your system supports dual SIM, select the SIM option from the drop-down list.
Setting up eSIM
An eSIM allows for cellular connectivity without a physical SIM card. This feature is only applicable to computers that support eSIM functionality.
- Navigate to Start > Settings > Network & Internet > Cellular.
- Select the eSIM option from the drop-down list. This list is only visible on computers that support dual SIM interfaces.
- Add an eSIM profile to your device using your carrier's activation method (e.g., a QR code).
Activation and service support
When contacting your mobile network operator for activation, you may need specific device parameters. These can be found in Windows settings:
- IMEI: Found under Cellular > Advanced Options (Windows 10) or Mobile operator settings (Windows 11).
- ICCID: Found under Cellular > Advanced Options (Windows 10) or Mobile operator settings (Windows 11).
- eID: Found under Cellular > Manage eSIM profiles (Windows 10) or eSIM profiles (Windows 11).
Troubleshooting connectivity
If you experience cellular connection issues, verify that your cellular data connection is enabled. Changing cellular settings may resolve connectivity problems. Ensure your WWAN-enabled computer has the correct drivers installed.
Installing the drivers
Updating drivers ensures hardware components work correctly. To update:
- Go to www.dell.com/support.
- Enter your Service Tag or use the auto-detect feature.
- Click Drivers & downloads and then Find Drivers.
- Select your operating system.
- Locate the driver under the Modem/Communication category, download, and run the installer.
Getting help and contacting Dell
For further assistance, use the self-help resources available at www.dell.com/support. You can also contact Dell support directly for sales, technical support, or customer service issues via www.dell.com/contactdell.
Official resources from the manual
Manufacturer information
Dell Inc.
Practical help
Common problems
Mobile operator name not displayed
If the system supports dual SIM, select the 'SIM' option from the drop-down list in the Cellular settings window.
Need to activate cellular service
Provide the device IMEI and ICCID to your selected WWAN service provider.
eSIM option not visible
Ensure your computer supports the eSIM function. The drop-down list is only available for computers that support dual SIM interfaces.
Before use
- Verify your computer supports cellular connectivity.
- Ensure you are running Windows 10 or Windows 11.
- Have your SIM card or eSIM activation details (e.g., QR code) ready.
- Locate your computer's Service Tag for driver support.
Model compatibility
- Information is only applicable to computers with cellular-enabled platforms.
- Requires Windows 10 or Windows 11.
