User Manual for Digitus Wireless 11AC 600Mbps Dual Band USB 2.0 Adapter DN-70565
Quick installation guide for the Digitus Wireless 11AC 600Mbps Dual Band USB 2.0 Adapter (DN-70565). Learn how to install drivers, connect to wireless networks, and view technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides instructions for installing and configuring the Digitus Wireless 11AC 600Mbps Dual Band USB 2.0 Adapter (DN-70565). It covers the driver installation process for Windows systems and the steps required to connect to a wireless network.
Driver Installation
Follow these steps to install the necessary drivers for your adapter:
- Insert the wireless adapter into an available USB 2.0 port on your computer while it is switched on. Do not use force; if it feels stuck, flip the adapter and try again.
- If a driver installation message appears on your screen, click Cancel / Close.
- Insert the provided driver CD into your CD-ROM drive. The autorun screen should appear automatically. If it does not, manually double-click autorun.exe on the CD.
- Click Install Driver to begin the setup procedure.

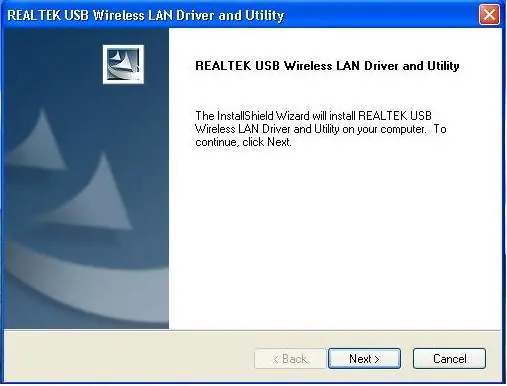

- Follow the on-screen instructions in the InstallShield Wizard, clicking Next to continue.
- Once the installation is complete, you will be prompted to reboot your computer. Click Finish to restart.

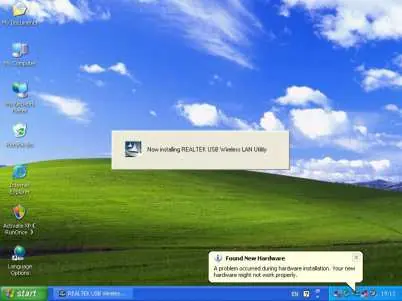

- After the computer restarts, insert the USB wireless adapter into a USB 2.0 port. The system will detect the new hardware and install the drivers automatically.
Connecting to a Wireless Network
Once the drivers are installed, follow these steps to connect to your network:
- Open the adapter utility from your taskbar or the programs folder.
- Click on Available Networks.
- Select the wireless access point you wish to connect to from the list.
- Click the Add to Profile button.
- If the network is secured, enter the required security information (such as the network key) and click OK to establish the connection.
Technical Specifications
The adapter operates within the following frequency ranges:
- 2.4GHz: 2412MHz-2472MHz (802.11b, g, n/HT20) and 2422MHz-2462MHz (802.11n/HT40).
- 5GHz: 5180MHz-5240MHz (802.11a and 802.11ac VHT20).
- Transmit Power: Less than 20 dBm EIRP for both 2.4G and 5G bands.
Hardware Version: V 2.0. Software Version: 1030.38.
Official resources from the manual
Practical help
Common problems
Adapter is not detected or difficult to insert
Ensure you are using a USB 2.0 port. If the adapter feels stuck, do not use force; flip it over and try inserting it again.
Autorun screen does not appear
Open the CD contents manually and double-click the 'autorun.exe' file.
Before use
- Ensure the computer is switched on.
- Have the driver CD ready.
- Identify an empty USB 2.0 port on your computer.
Specs in practice
- Frequency Range
- Supports both 2.4GHz and 5GHz bands for compatibility with various wireless standards (802.11a/b/g/n/ac).
- Transmit Power
- Maximum output power is < 20 dBm EIRP, ensuring compliance with standard wireless regulations.
Images and diagrams
- The installation wizard screens guide you through the driver setup process.
- The utility interface allows you to view available networks and manage connection profiles.
Model compatibility
- Compatible with Windows 7, 8, and 10.
