Everbilt Handle Installation Instructions

Quick installation guide for Everbilt handles. Learn how to replace single handles with set screws, buttons, or standard screw-mounts using basic tools.

Table of contents

Manual images

Click an image to enlarge
Single Handle with Set Screw components Page 1 Single Handle with Button components Page 1 Handle without Button components Page 1

Quick guide from the manual

This document provides installation instructions for various Everbilt handle types. Ensure you have the necessary tools before beginning the installation process.

Tools required

  • Screwdriver
  • Allen wrench
  • Handle puller (optional, recommended for stubborn handles)

Installation procedures

Single handle with set screw

Single Handle with Set Screw components
Single Handle with Set Screw components
  1. Remove the red and blue hole button if present.
  2. Use an Allen wrench to loosen the handle set screw.
  3. Remove the old handle. If the handle is stuck, pry with a screwdriver from both sides to rock it off, or use a handle puller.
  4. Replace the handle and secure it with the set screw.
  5. Insert the red and blue hole button if applicable.

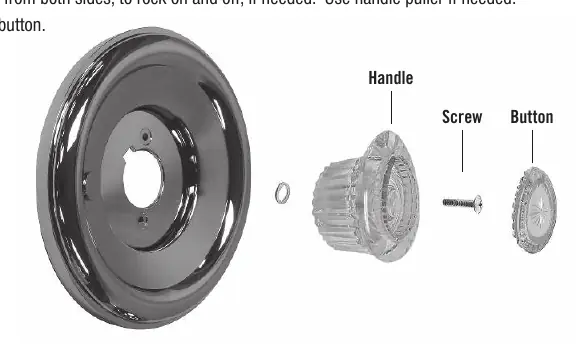

Single handle with button

Single Handle with Button components
Single Handle with Button components
  1. Remove the handle button and screw.
  2. Remove the old handle. If the handle is stuck, pry with a screwdriver from both sides to rock it off, or use a handle puller.
  3. Replace the handle and screw, then replace the button.

Handles without buttons

Handle without Button components
Handle without Button components
  1. Remove the handle screw.
  2. Remove the old handle. If the handle is stuck, pry with a screwdriver from both sides to rock it off, or use a handle puller.
  3. Replace the handle and screw.

Practical help

Common problems

Handle is stuck and will not come off

Pry with a screwdriver from both sides to rock the handle on and off, or use a handle puller.

Before use

  • Ensure you have a screwdriver.
  • Ensure you have an Allen wrench (required for set screw models).
  • Identify your specific handle type (Set Screw, Button, or Screw-mount) to follow the correct procedure.

Images and diagrams

  • The guide illustrates three distinct handle mounting methods: Set Screw, Button, and standard Screw-mount.
  • Diagrams show the specific order of components for each handle type.
