Installation and Care Guide for Falcon Ridge CF Moto U Force Soft Rear Window

Quick guide from the manual

This document provides instructions for the installation and maintenance of the Falcon Ridge Soft Rear Window for CF Moto U Force. For optimal results, perform the installation in temperatures of 70 degrees F or warmer to ensure the adhesive Velcro bonds correctly. If working in colder conditions, store the adhesive strips at room temperature before starting.

Installation

1. Prepare a large, clean, and flat surface to unpack the enclosure.
2. Verify all parts are present: two 5-inch adhesive Velcro strips, two 36-inch strips, and one 32-inch strip.
3. Apply the two 5-inch and one 45-inch adhesive Velcro strips across the top of the roll cage.
4. Apply the two 45-inch adhesive Velcro strips down the side bars, starting from the top crossbar and working downwards.

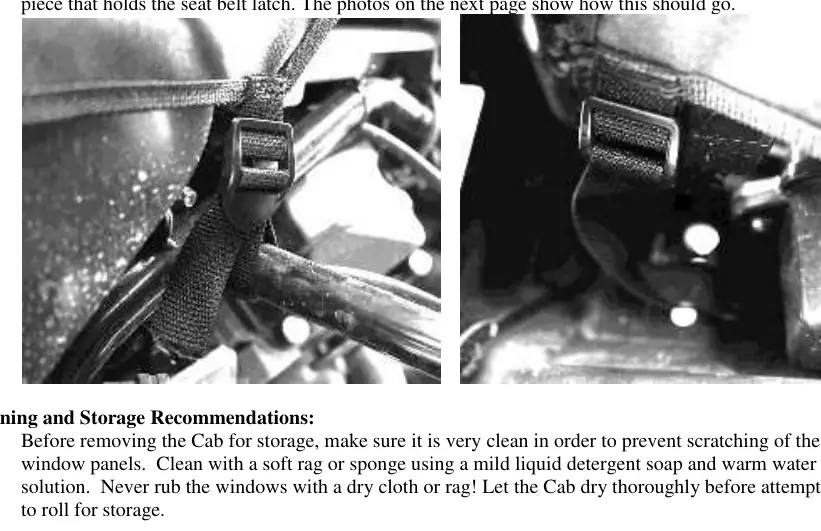

5. Secure the bottom of the rear window using the 4 straps with ladder lock buckles. The two center straps wrap around the frame bar, while the two end straps secure around the seat belt latch assembly.

Cleaning and Storage

Proper care is essential to prevent scratching the window panels and to extend the life of the enclosure.

• Cleaning: Use a soft rag or sponge with a mild liquid detergent and warm water. Never rub the windows with a dry cloth.
• Storage: Always roll the cab for storage; never fold it, as folding will cause permanent damage to the windows.
• Rolling Procedure: Fold the doors over the rear panel, interleave the top and windshield, and roll the entire assembly into a roll approximately 8 inches in diameter. Store at room temperature.
