Safety Manual for Felicity Solar 10KHP3G01 Inverter
Essential safety guidelines and installation precautions for the Felicity Solar 10KHP3G01 hybrid inverter. Learn about electrical safety, battery handling, and installation requirements to ensure safe operation.
Table of contents
Important Safety Information
This document provides critical safety instructions for Felicity Solar inverters. Failure to observe these requirements may result in serious injury, death, or equipment damage. Always prioritize safety when handling electrical components.

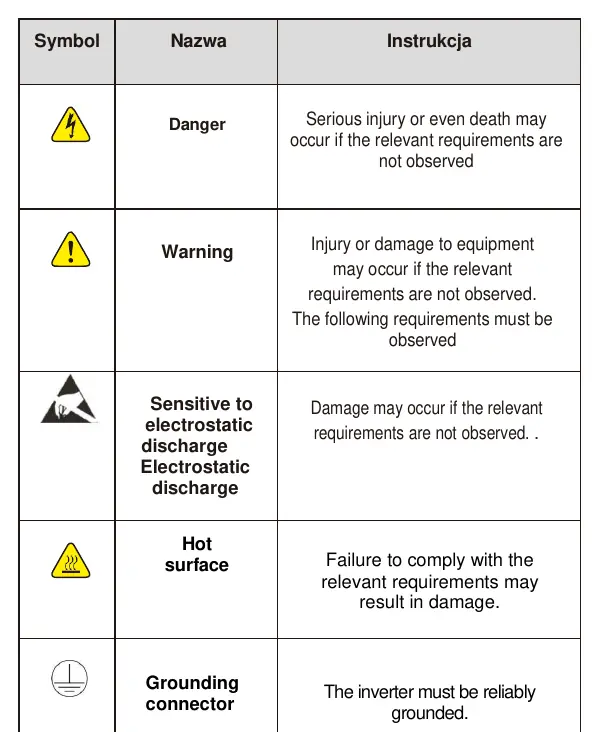

Safety Symbols and Meanings
Familiarize yourself with the following symbols used in the documentation:
- Danger: Serious injury or death may occur if requirements are not observed.
- Warning: Injury or damage to equipment may occur if requirements are not observed.
- Sensitive to electrostatic discharge: Damage may occur if requirements are not observed.
- Hot surface: Failure to comply may result in damage.
- Grounding connector: The inverter must be reliably grounded.
- Caution: Ensure DC and AC circuit breakers are turned off and wait at least 5 minutes before connecting wires.
Installation and Handling Precautions
Proper installation is vital to prevent fire hazards and electrical accidents:
- Fire Hazard: Do not install the inverter in locations with highly flammable materials or gases.
- Environment: Do not install in potentially explosive atmospheres.
- Mounting: The mounting structure must be fireproof.
- Heat: The inverter heat sink can reach temperatures up to 75°C.
- Weight: The device is heavy; exercise caution when moving it.
- Maintenance: Disconnect all cables before performing maintenance or cleaning. Turning off the device is not sufficient to eliminate the risk of electric shock.
Battery Connection Guidelines
Follow these steps strictly to avoid damaging the inverter or battery:
- Battery State: Never charge a frozen battery.
- Power Off: Before connecting battery cables, ensure the battery is turned off.
- Voltage Check: Use a multimeter to verify that the battery voltage is 0V DC before proceeding.
- Polarity: Battery terminals must not be connected in reverse.
- Documentation: Consult the specific battery manufacturer's manual for installation instructions and how to turn the battery off.
Manufacturer Contact Information
For further assistance, contact the manufacturer:
FELICITYSOLARMARTEN MEESWEG 00008 UNIT 2.11 3068AV R3068 [email protected]
Practical help
Common problems
Inverter heat sink is hot
The heat sink can reach 75°C during operation. Avoid contact and ensure proper ventilation.
Risk of electric shock during maintenance
Disconnect all cables before cleaning or maintenance. Simply turning off the device does not eliminate the risk.
Battery connection damage
Ensure battery terminals are not connected in reverse and verify 0V DC with a multimeter before connecting.
Before use
- Ensure the mounting structure is fireproof.
- Verify the installation location is free from flammable materials or gases.
- Turn off DC and AC circuit breakers.
- Wait at least 5 minutes after turning off breakers before connecting wires.
- Check battery voltage with a multimeter (must be 0V DC) before connecting.
- Read the battery manufacturer's manual.
