Fiamma Carry-Bike Caravan Active E-Bike Instruction Manual
Quick guide for the Fiamma Carry-Bike Caravan Active E-Bike. Learn about installation, safety limits, loading procedures, and maintenance for your caravan bike rack.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Fiamma Carry-Bike Caravan Active E-Bike is designed for transporting up to two bicycles on a caravan. Key operational limits include a maximum total load of 60 kg, with a maximum of 30 kg per individual bike. The maximum recommended speed while using the rack is 80 km/h. Always ensure the rack is installed by qualified personnel and complies with local regulations.
Installation
The installation process involves assembling the main frame and securing it to the caravan. Follow these steps:
- Assemble the main structure using the provided hardware (bolts K, nuts Y, washers X).
- Secure the rack to the caravan frame.
- Attach the bike rails and secure them with the provided brackets and hardware.
- Ensure all connections are tightened securely using the appropriate tools (wrench, screwdriver).
Usage and Safety

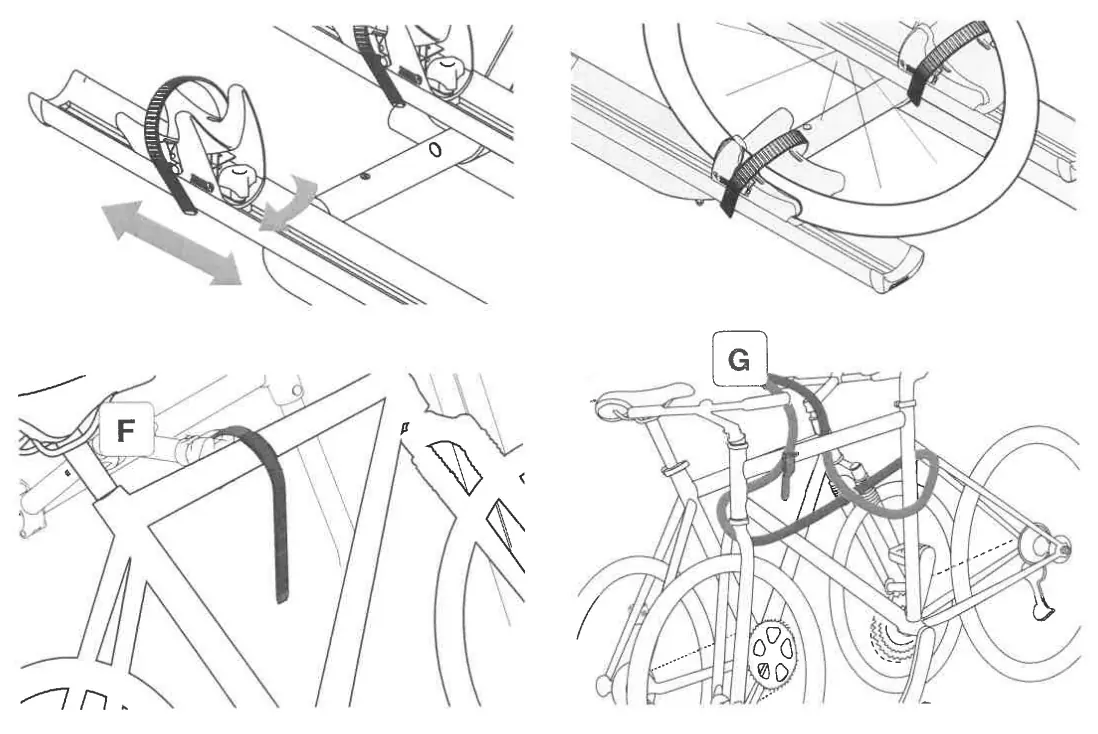

When loading bicycles, ensure they are balanced and securely fastened using the provided straps. It is highly recommended to remove the batteries from e-bikes before loading them onto the carrier to reduce weight and improve safety during travel. Always be aware of the rack's presence, especially when reversing, and ensure the tow nook remains accessible.
Maintenance
Regular maintenance is essential for safe operation:
- Periodically check that the bicycle rack is firmly attached to the vehicle.
- Inspect the rack, especially during the first few kilometers of a trip, to ensure no components have loosened.
- Ensure belts are not loose and holding brackets are in good condition.
- Replace any worn components immediately.
Manufacturer information
Fiamma SpA
Practical help
Common problems
Damage during transport
Check that nothing has been damaged or deformed upon arrival. If damage is found, contact your dealer.
Loose components during travel
Check the rack periodically, especially during the first few kilometers of a trip, to ensure it remains firmly attached.
Worn parts
Replace worn components immediately to ensure safety.
Before use
- Verify the package contents for any transport damage.
- Ensure installation is performed by qualified personnel.
- Check that all bolts and nuts are tightened securely.
- Remove batteries from e-bikes before loading.
- Ensure belts are tight and holding brackets are secure.
Specs in practice
- Max Weight per Bike
- 30 kg.
Images and diagrams

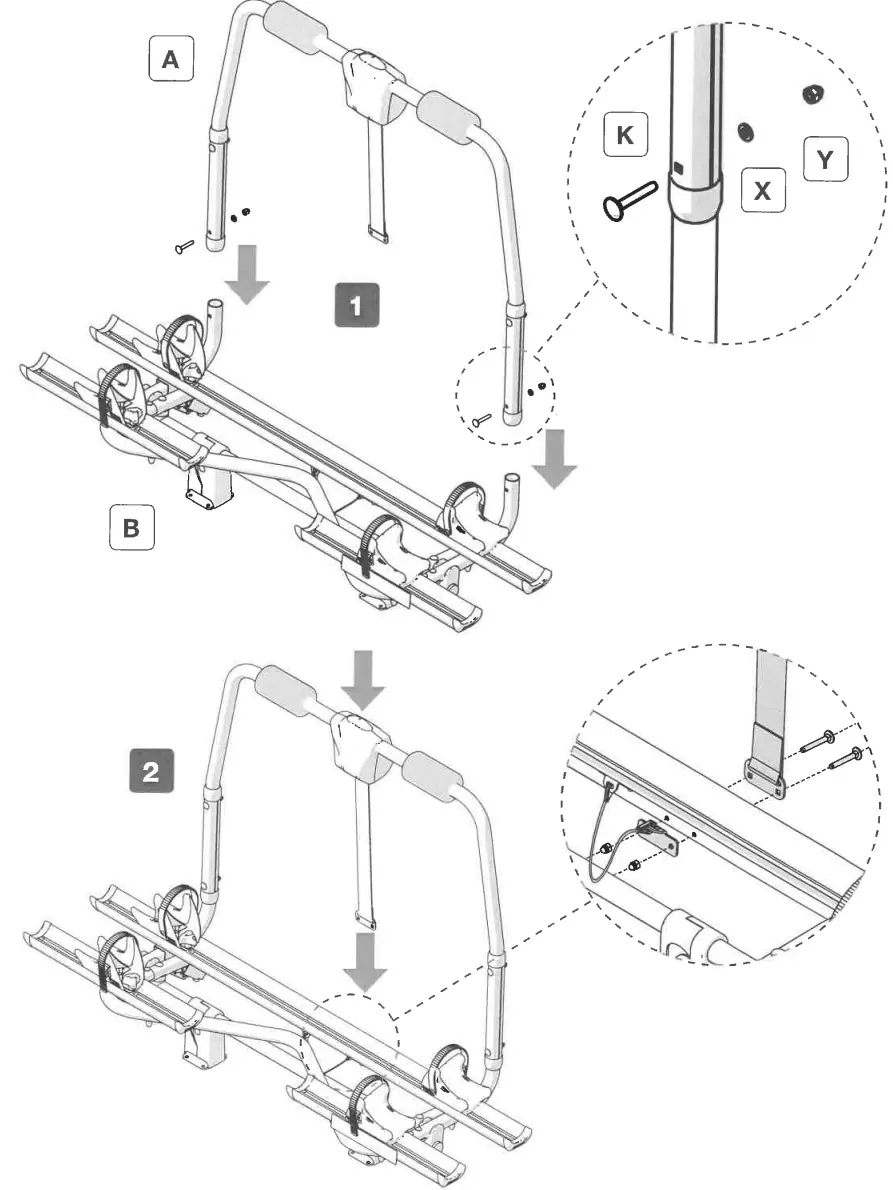

- The manual includes a detailed parts list (A-H, K, Q, X, Y, Z, W) and step-by-step assembly diagrams.

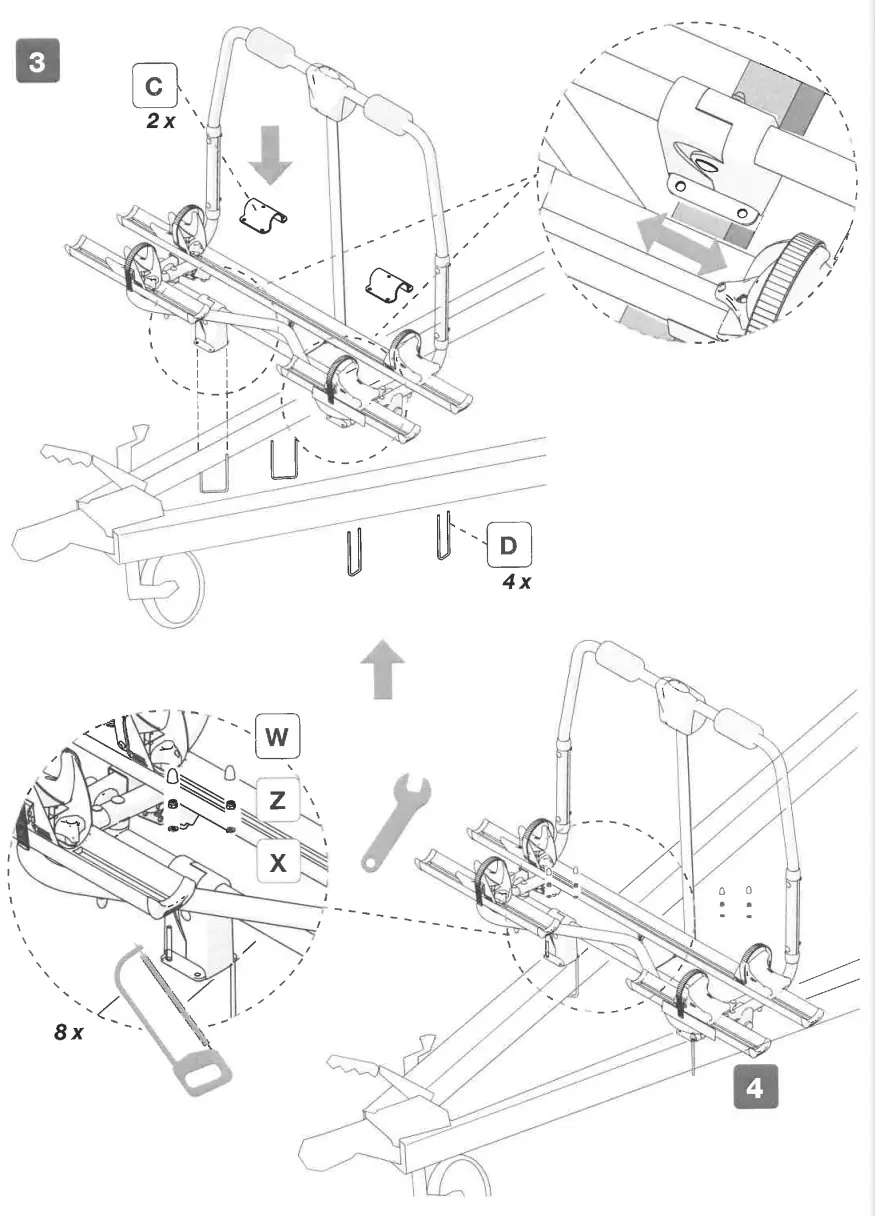

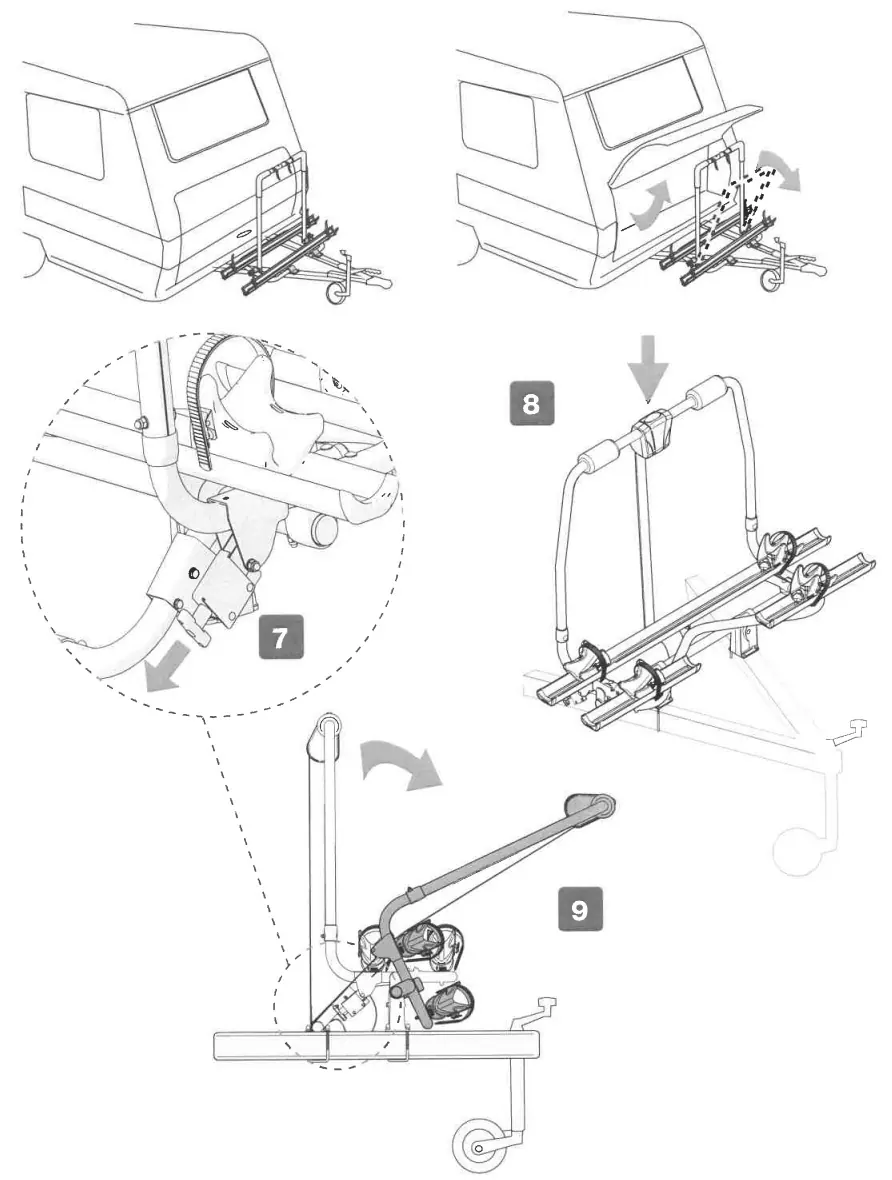

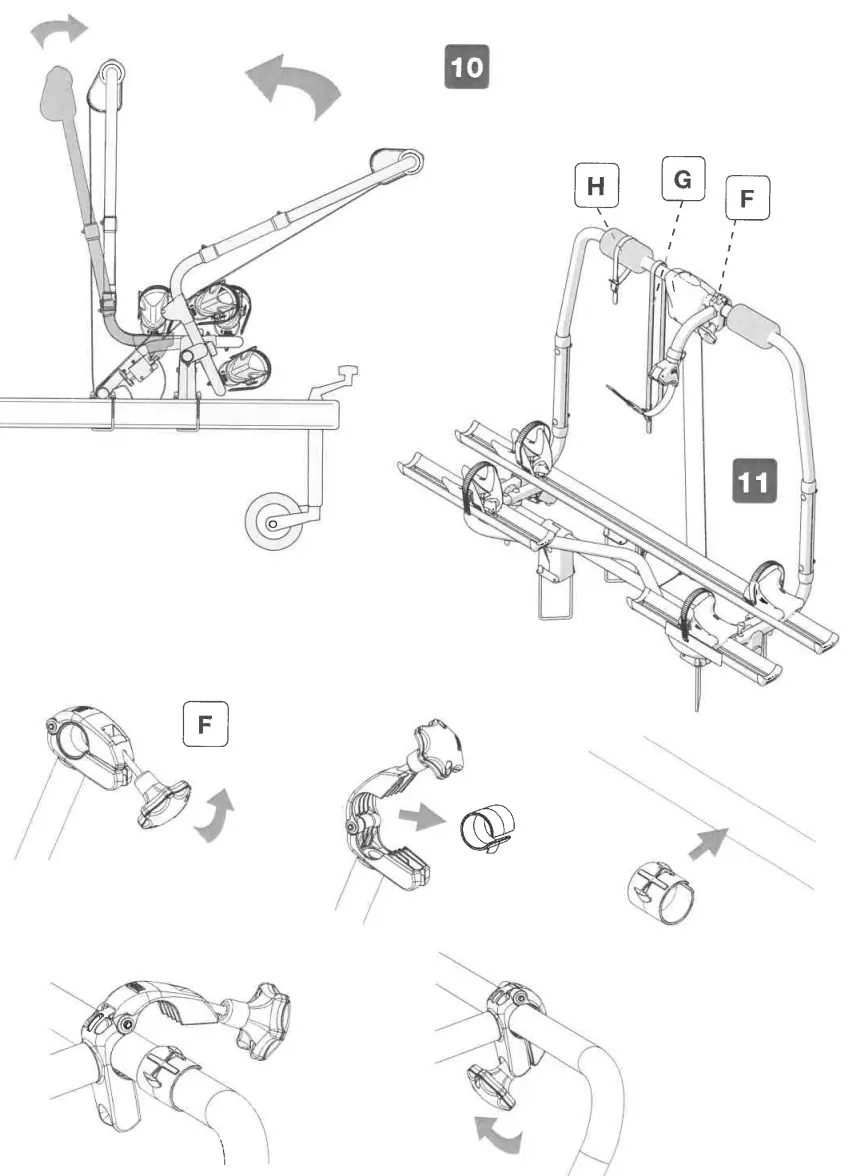

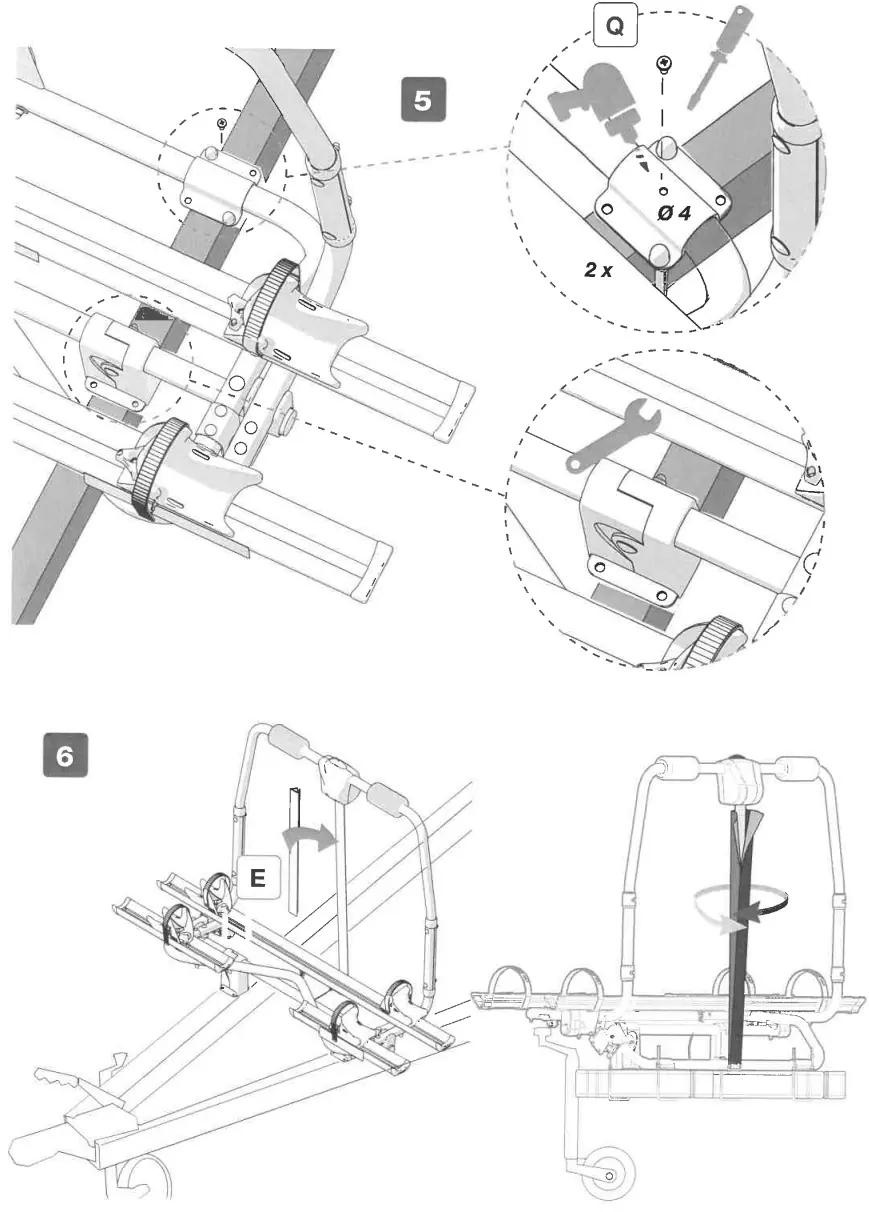

- Steps 1-11 illustrate the assembly and mounting process on the caravan.
Model compatibility
- Designed for caravans.
- Ensure the tow nook is always accessible.
- Ensure corner mobility of the tow is guaranteed (volume measuring DIN 74058).
