Installation and User Manual for Fiamma Carry-Bike VW Caddy 02094-24A
Comprehensive installation and user guide for the Fiamma Carry-Bike VW Caddy (02094-24A). Includes step-by-step mounting instructions, safety warnings, load limits, and maintenance tips.
Table of contents
Quick guide from the manual
This document provides installation and usage instructions for the Fiamma Carry-Bike VW Caddy (02094-24A). Before installation, ensure the vehicle's rear door or wall is solid enough to support the carrier. Always verify compatibility with your specific vehicle model. The maximum total load is 60 kg, with a maximum of 4 bikes and a limit of 15 kg per bike. Do not exceed 130 km/h while driving with the carrier installed.
Package contents
The package includes the main frame components, mounting brackets, and hardware (screws, nuts, washers). Refer to the exploded view on page 2 to identify all parts (A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, Q2, R, S, T, U, V, W, X, Y, Z) before starting the assembly.
Installation
The installation process involves 20 steps. Key procedures include:
- Assembly: Assemble the main frame using the provided screws and washers. Ensure all connections are secure.
- Mounting: Position the carrier on the vehicle according to the specific measurements provided (68 cm spacing).
- Tightening: Tighten screws to a maximum of 1.5 Nm.
- Important Warning: When attaching the fork to the tube (Step 20), do not fully tighten; leave a 2 mm space.
- Safety Check: Do not close the rear door if the lower bar screws are not tightened, as this may damage the vehicle body.
Usage and safety
Follow these guidelines for safe operation:
- Distribute weight evenly, placing the heaviest bikes closest to the vehicle wall.
- Rotate bike handlebars to avoid damage to the vehicle wall.
- Check the rear windscreen wiper radius before operation, as the carrier may interfere with it.
- Bike covers are not allowed on this model.
- If rear lights are obscured, use a light repeater bar.
- The tailgate can be opened when the carrier is mounted, but only without bikes.
Maintenance
Regularly check the bicycle rack to ensure it is firmly attached, especially after the first few kilometers and before/after long trips. Inspect rubber components under the brackets and straps for signs of wear or porosity. Replace worn components immediately.
Technical specifications
- Model: Carry-Bike VW Caddy 02094-24A
- Max Load: 60 kg
- Max Bikes: 4
- Max Weight per Bike: 15 kg
- Weight of Carrier: 10.8 kg
- Max Speed: 130 km/h
Manufacturer information
Fiamma SpA
Practical help
Common problems
Rear windscreen wiper blocked
Check the wiper's radius of action before operating it, as the carrier or bikes may interfere.
Damage to vehicle wall
Rotate the handlebars of the bicycles to ensure they do not touch or damage the vehicle.
Carrier feels loose
Check the attachment periodically, especially after the first few kilometers and before/after long trips. Ensure belts are tight and brackets have not shifted.
Rear door damage during installation
Do not close the rear door if the screws of the lower bar are not tightened.
Before use
- Check that no parts were damaged or deformed during transport.
- Verify the vehicle's rear door/wall is solid enough to support the carrier.
- Ensure the carrier is compatible with your specific vehicle.
- Check that the weight distribution is correct (heaviest bikes closest to the vehicle).
- Verify that rear lights are visible; if not, install a light repeater bar.
- Ensure all screws are tightened to the specified torque (1.5 Nm).
Specs in practice
- Max Load (60 kg)
- The total weight of all bikes and the carrier must not exceed 60 kg.
- Max Weight per Bike (15 kg)
- Individual bikes must not exceed 15 kg.
- Tightening Torque (1.5 Nm)
- Do not overtighten specific bolts; use a torque wrench to reach 1.5 Nm.
Images and diagrams
- Page 2: Exploded view of all components and hardware.

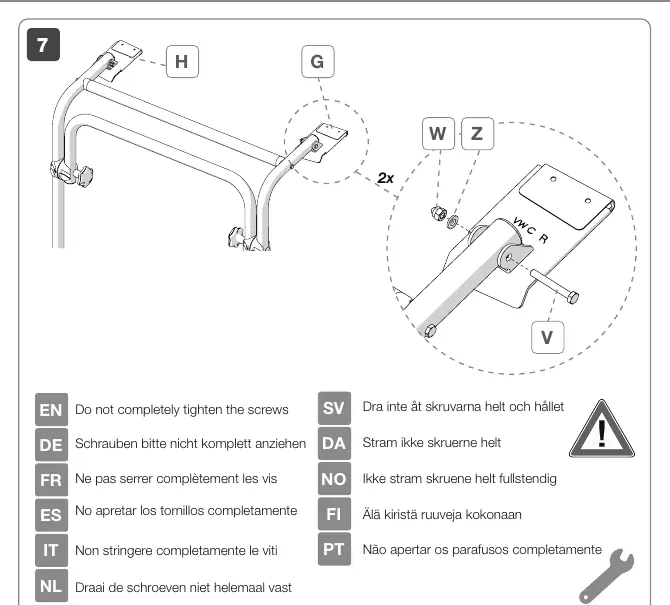

- Page 5-16: Step-by-step assembly and mounting sequence.
- Page 16: Crucial warning to leave a 2mm gap when tightening the fork to the tube.
- Page 18: Instructions for using the Bike-Block Pro S and N components.
Model compatibility
- Designed specifically for the VW Caddy.
- Bike covers are not allowed on this model.
- If using a trailer, ensure the tow hook remains accessible and corner mobility is maintained.
