User Manual for Flash Moving Head 19x15W Big Eye
Quick guide for the Flash Moving Head 19x15W Big Eye (P7100547). Includes installation, DMX connection, safety warnings, and channel specifications.
Quick answers from the manual
Quick answer
- The Flash Moving Head 19x15W Big Eye is a professional stage lighting fixture. This manual covers safety, installation, DMX wiring, and channel configurations. p. 1, 2, 3
Key actions
- Mounting the fixture p. 2, 3
- Terminating DMX signal p. 3
Problems and fixes
Base movement
Securely fasten the base to a surface or rigging hardware.
p. 2Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Light Source | 19pcs x 15W 4in1 LED | LED configuration | p. 3 |
| Power | 100-245V AC, 50-60Hz | Voltage requirements | p. 3 |
Where to find it in the PDF
- Safety Information p. 2
- Installation p. 3

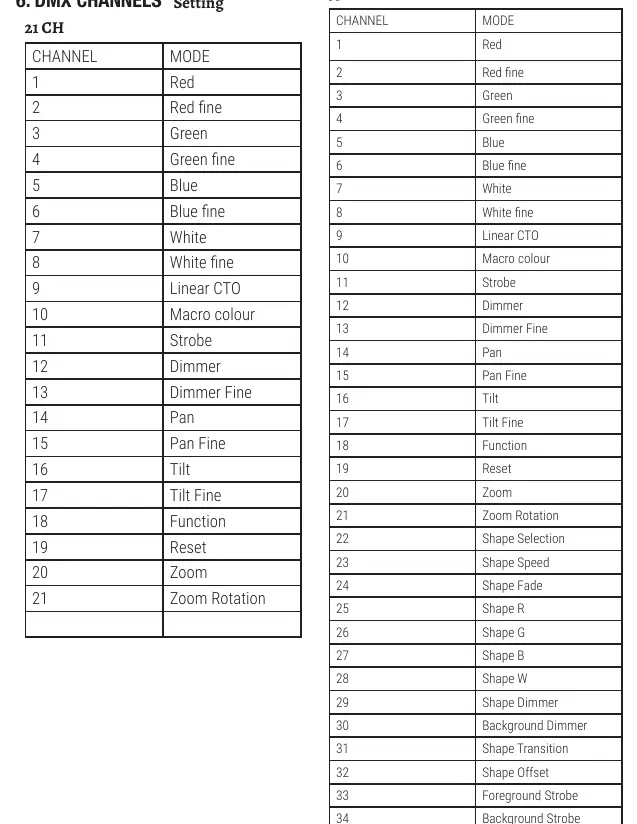

- DMX Channels p. 5
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the safe operation and installation of the Flash Moving Head 19x15W Big Eye. Key safety requirements include ensuring the fixture is grounded, using a safety chain, and maintaining an ambient temperature below 40°C. Never look directly into the LED light source while the fixture is on.
Safety Information
- Mounting: Always use two clamps with 1/4-turn fasteners. Do not hang the fixture from a single clamp.
- Safety Cable: Always use a safety cable capable of holding 12 times the unit's weight.
- Sunlight Hazard: Position or shade the head to prevent the lens from focusing sunlight, which can cause fire and damage.
- Electrical: Ensure voltage and frequency match the fixture requirements. Do not connect to a dimmer pack.
Installation
The unit must be mounted via screw holes on the bracket. Ensure the structure is secure and capable of supporting 10 times the unit's weight. The fixture should be installed in a well-ventilated area, at least 15cm away from walls or ceilings.
Connection
DMX Signal
The fixture uses 3-pin XLR connectors for DMX input and output. At the last fixture in the chain, the DMX signal must be terminated with a 120Ω resistor soldered between signal (-) and signal (+).
Power Supply
The device uses a powerCON connector. Ensure the power grid parameters are consistent with the device requirements. In case of cable damage, do not attempt repair; contact authorized service personnel.
Technical Specifications
- Light Source: 19pcs x 15W 4in1 LED
- PAN Range: 540°
- TILT Range: 210°
- Power Consumption: 300W
- Net Weight: 14.4 kg
- DMX Modes: 21, 35, 78, 97, 112 channels
Practical help
Common problems
Fixture base moves during operation
The pan motor has high torque. Ensure the base is securely fastened to a surface or rigging hardware before applying power.
Potential fire hazard from sunlight
Position or shade the head so the front lens is not exposed to sunlight or strong light sources, as the lens can focus rays.
DMX signal errors
Terminate the last fixture in the DMX chain with a 120Ω resistor between signal (-) and signal (+).
Before use
- Check for transportation damage.
- Verify power supply voltage and frequency match the fixture.
- Ensure the yellow/green conductor is grounded.
- Install a safety chain/cable.
- Ensure ambient temperature is below 40°C.
- Check that ventilation openings are not blocked.
