User Manual for Flash Moving Head LED 150W Spot
Quick guide for the Flash Moving Head LED 150W Spot. Includes installation, DMX connection, safety warnings, and channel specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual covers the operation and installation of the Flash Moving Head LED 150W Spot. Key safety measures include using a safety chain, ensuring proper grounding, and avoiding direct sunlight exposure to the lens. The device requires professional installation and must be securely fastened to avoid movement due to the powerful pan motor.
Safety Information
- Sunlight Hazard: Never expose the front lens to sunlight or strong light sources, as it can focus rays and cause fire or damage.
- Mounting: Always use two clamps and a safety cable. Ensure the structure can support 10 times the unit's weight.
- Electrical: Do not connect to a dimmer pack. Ensure the voltage matches the device requirements (110-240V AC).
- Environment: Keep the device in a well-ventilated area, at least 15cm away from surfaces. Operating temperature is 18°C to 50°C.
Installation
The unit must be mounted via screw holes on the bracket. Always use a safety cable capable of holding 12 times the unit's weight. Installation should be performed by professionals in a location inaccessible to the public.
Connection
The device uses 3-pin XLR sockets for DMX signal and powerCON connectors for power. For DMX, use a cable with XLR-female to XLR-male plugs. At the end of the DMX chain, terminate the signal with a 120Ω resistor between signal (-) and signal (+).

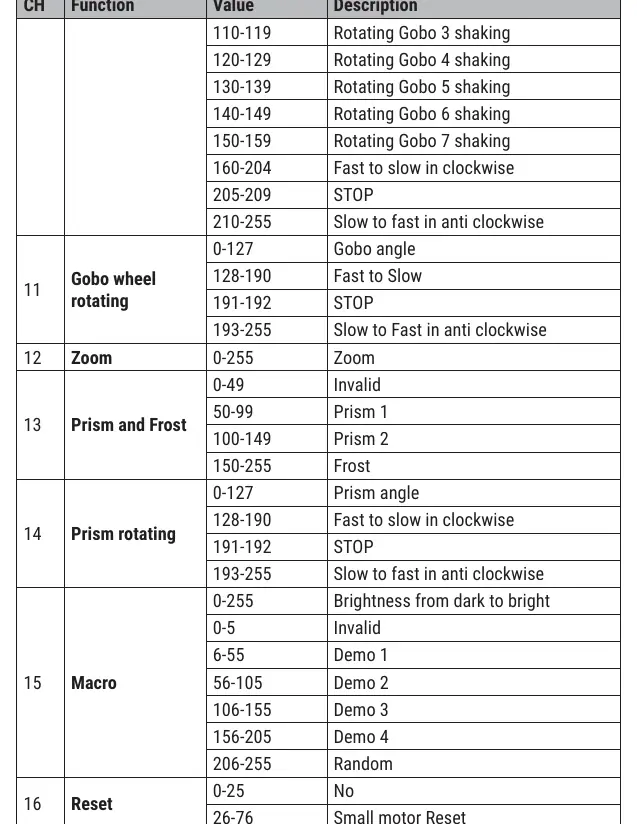

DMX Channels
The device supports 16 CH and 20 CH modes. Channels control functions such as Dimmer, Strobe, Pan, Tilt, Speed, Color, Gobo wheels, Zoom, Prism, and Reset.
Practical help
Common problems
Device base moves during operation
Ensure the fixture is securely fastened to a surface or rigging hardware before applying power.
Lens damage or fire hazard
Do not expose the front lens to sunlight or strong light sources from any angle.
DMX signal issues
Terminate the last fixture in the chain with a 120Ω resistor between signal (-) and signal (+).
Before use
- Check for transportation damage
- Verify voltage and frequency match (110-240V AC, 50-60Hz)
- Ensure proper grounding of the yellow/green conductor
- Use a safety chain
- Ensure ventilation clearance of at least 15cm
Specs in practice
- Power consumption
- 200W
- DMX interface
- 3-pin XLR input/output
Images and diagrams
- DMX connection diagram showing XLR pinout (1: Ground, 2: DMX-, 3: DMX+)
- Sunlight warning diagram showing lens focusing hazard
Model compatibility
- Requires 110-240V AC, 50-60Hz power supply
- Do not connect to a dimmer pack
