User Manual for Furrion 12V Horizontal RV Range Hood
Comprehensive user guide for the Furrion 12V Horizontal RV Range Hood. Includes installation instructions, electrical wiring, operation, cleaning, and maintenance procedures.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This manual provides essential instructions for the installation, operation, and maintenance of the Furrion 12V Horizontal RV Range Hood. Always ensure the power is disconnected before performing any installation or maintenance tasks. The unit is designed for 12V DC operation and must be installed by qualified personnel in accordance with local codes.
Installation
Before installing, ensure the location is away from strong drafts (windows, doors, heating vents). The installation must comply with NFPA 1192 standards for recreational vehicles.
Electrical Requirements
- Ensure the electrical installation conforms to National Electrical Code (ANSI/NFPA 70) or CSA Standards C22.1-94.
- Connect the vent hood white wire to the incoming power supply negative (-) wire.
- Connect the vent hood black wire to the incoming power supply positive (+) wire.
Mounting
- Mark the centerline of the range hood on the wall.
- Cut a through-hole in the wall according to the dimensions provided in the manual (Fig. 3).
- Insert the vent collar at the back of the range hood into the cutout area.
- Fix the range hood onto the top cabinet using the four provided screws. Do not overtighten.
- Replace the grill cover and press the release tabs until you hear a click.
Operation
The range hood features simple controls for the fan and light:
- Fan Control: Press the fan button once to turn on the fan, and press twice to turn it off.
- Light Control: Press the light button once to turn on the light, and press twice to turn it off.
Cleaning and Maintenance
Regular maintenance is critical to prevent fire hazards caused by grease buildup.
External Cleaning
Wipe the range hood frequently with warm soapy water and a mild detergent. Do not use scouring pads, abrasive cleaners, or excessive water, especially near the control panel.
Filter Cleaning and Replacement
- Metal Holder: Clean approximately once a month (or more often if used >3 hours/day). Remove by pressing the two locking latches and pulling downward. Wash by hand in mild soapy water; do not use a dishwasher.
- Charcoal Filter: This filter cannot be cleaned. Replace it approximately every three months, or more frequently if the hood is used for more than three hours per day.
Manufacturer information
Furrion
Practical help
Common problems
Fan or light not working
Check electrical connections and ensure the 12V power supply is active.
Excessive noise or vibration
Verify that the blower housing and ductwork are free of debris and that fan blades spin freely.
Grease buildup
Clean the metal holder frequently and replace the charcoal filter every 3 months.
Before use
- Ensure power is disconnected before starting installation.
- Verify the installation location is away from strong drafts.
- Confirm the wall cutout dimensions match the manual specifications.
- Ensure all mounting screws are included in the packaging.
- Verify the power supply is 12V DC.
Specs in practice
- Connection Voltage
- 12V DC
- Power Consumption
- 1.1 A
- Lighting Power Consumption
- 0.95 W
Images and diagrams
- Fig 1: Product dimensions for installation planning.
- Fig 3: Wall cutout and centerline marking dimensions.
- Fig 5: Wiring diagram for 12V power connection.
- Fig 12-14: Steps for removing the filter panel and metal holder.

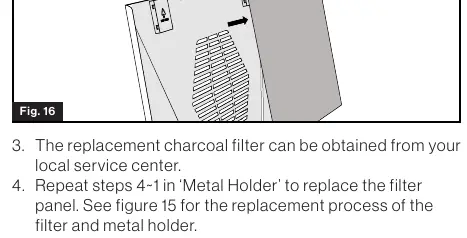

- Fig 16: Charcoal filter replacement process.
Model compatibility
- Compatible with cooktops and ranges with an input rating up to 22,500 BTU.
- Requires charcoal filters if installed as a ducted unit.
- Not for use with solid-state speed control devices.
