Assembly Instructions for Golden Lighting 1140-SF Semi-Flush Ceiling Light
Quick guide for installing the Golden Lighting 1140-SF semi-flush ceiling light. Includes wiring diagrams, assembly steps, and safety precautions for a secure installation.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This document provides assembly and installation instructions for the Golden Lighting 1140-SF semi-flush ceiling light. Before beginning, ensure the power is turned off at the circuit breaker. The fixture arrives pre-assembled, but requires wiring and final attachment of the glass shade.
Preparation
Before installing the new fixture, ensure the following steps are taken:
- Shut off power: Turn off the electricity at the fuse or circuit breaker.
- Remove old fixture: Carefully remove the existing fixture and the old mounting strap from the wall or ceiling.
- Prepare mounting strap: Attach the mounting strap (B) to the junction box using the provided screws (D).
Wiring

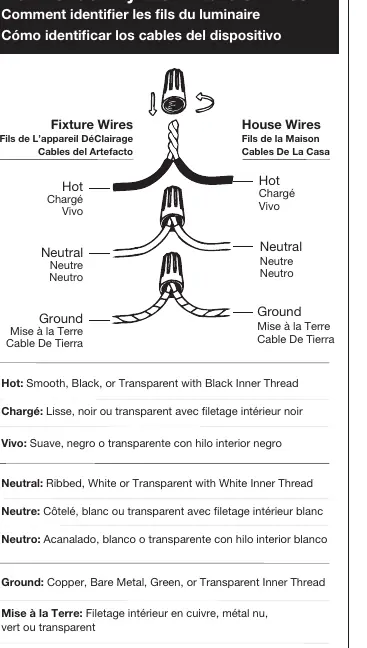

Proper wiring is essential for safety. Use the following guide to identify and connect your wires:
- Hot Wire: Smooth, black, or transparent with black inner thread. Connect to the house Hot wire.
- Neutral Wire: Ribbed, white, or transparent with white inner thread. Connect to the house Neutral wire.
- Ground Wire: Copper, bare metal, green, or transparent with green inner thread. Connect to the house Ground wire or the ground screw (E) on the mounting strap.
Assembly and Installation
Once the wiring is complete, follow these steps to finish the installation:
- Push the canopy (F) up to the ceiling until the mounting screws (A) protrude through the holes.
- Secure the canopy using the decorative nuts (G).
- Install the light bulbs (not provided) into the sockets, ensuring you do not exceed the maximum wattage.
- Attach the washer (J), glass shade (I), and the second washer (J) onto the nipple (H).
- Secure the assembly with the finial (K).
- Turn the power back on and test the fixture.
Manufacturer information
Golden Lighting
Practical help
Common problems
Fixture is not secure against the ceiling
Ensure mounting screws (A) are properly tightened and decorative nuts (G) are snug against the ceiling.
Wiring identification confusion
Refer to the wire identification guide on page 2 to match fixture wires (smooth/ribbed/copper) to house wires.
Before use
- Shut off power at the circuit breaker.
- Ensure you have an assistant to support the fixture's weight during wiring.
- Verify you have all parts (A-K) listed in the diagram.
- Check that the junction box is secure.
Specs in practice
- Neutral Wire
- Ribbed, white, or transparent with white inner thread.
Images and diagrams
- The diagram on page 2 identifies parts A through K, including the mounting strap, canopy, glass shade, and finial.
Model compatibility
- Use only specified bulbs; do not exceed maximum wattage.
