User Manual for Golden Lighting 1094-SF Ariella Semi Flush Ceiling Fixture
Quick guide for installing the Golden Lighting 1094-SF Ariella semi-flush ceiling fixture. Includes wiring diagrams, assembly steps, and safety precautions.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation instructions for the Golden Lighting 1094-SF Ariella semi-flush ceiling fixture. Before beginning, ensure the power supply is shut off at the fuse or circuit breaker. Installation should be performed by an accredited professional. Do not exceed the maximum recommended wattage for the bulb.
Installation and Wiring
Preparation: Remove the fixture and parts from the carton. Attach the mounting strap (B) to the junction box using mounting screws (D). Ensure the mounting screws (A) are adjusted to the correct length to allow the canopy (F) to sit flush against the ceiling.

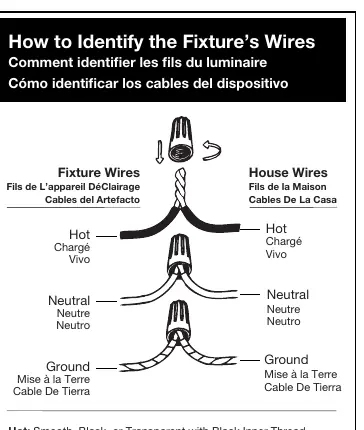

Wiring: Have an assistant support the fixture's weight. Connect the fixture wires to the house supply wires using wire connectors:
- Hot: Connect to the house Hot wire (usually black or smooth).
- Neutral: Connect to the house Neutral wire (usually white or ribbed).
- Ground: Connect to the house Ground wire (usually green, bare metal, or copper).
Ensure all wire twists are in the same direction and secured with a wire connector. If no house ground wire exists, attach the fixture ground wire to the ground screw (E) on the mounting strap.
Assembly
Once wiring is complete, lift the canopy (F) over the mounting strap (B) and secure it with the decorative nuts (G). Slide the glass (I) and cap (J) over the socket (H) and secure them in place by tightening the socket ring (K). Install the light bulb (not included) according to the fixture's specifications.
Maintenance and Safety
Always ensure the power is off before changing bulbs or cleaning the fixture. Use only bulbs that do not exceed the maximum wattage specified for this model. Periodically check that all mounting hardware remains secure.
Manufacturer information
Golden Lighting
Practical help
Common problems
Fixture does not turn on
Verify the bulb is installed correctly and is not burnt out. Check that the circuit breaker is on and wiring connections are secure.
Canopy does not sit flush against the ceiling
Adjust the length of the mounting screws (A) on the mounting strap (B) to ensure the canopy fits snugly.
Before use
- Shut off power at the circuit breaker.
- Verify the junction box is secure.
- Identify house wires (Hot, Neutral, Ground).
- Ensure you have the correct bulb wattage.
- Have an assistant available to support the fixture weight during wiring.
Specs in practice
- Neutral Wire
- Ribbed, white, or transparent wire with white inner thread.

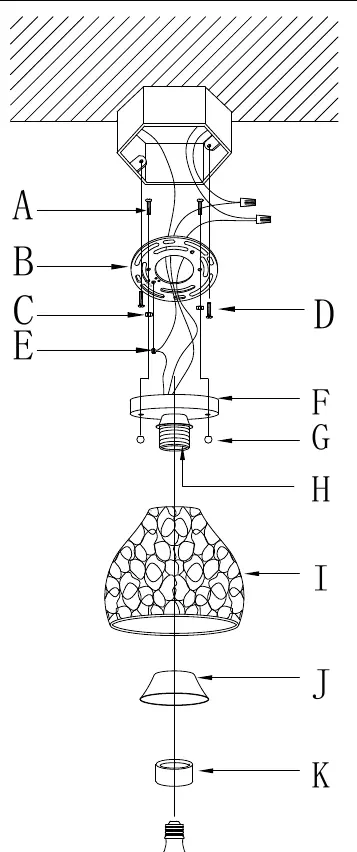

Images and diagrams
- A-D: Mounting hardware including screws, strap, and nuts.
- F: Canopy that covers the junction box.
- H: Socket for the light bulb.
- I: Glass shade.
- K: Socket ring used to secure the glass.
Model compatibility
- Do not exceed the maximum recommended wattage.
- Installation must be performed by an accredited professional.
