Assembly Instructions for Golden Lighting 1088-1W Wall Sconce
Quick guide for installing the Golden Lighting 1088-1W wall sconce. Includes wiring diagrams, mounting steps, and safety precautions for a secure installation.
Table of contents
Manual images
Click an image to enlargeImportant Safety Information
Before beginning installation, ensure the power supply is shut off at the fuse or circuit breaker. All installation work should be performed by an accredited professional. Use only the specified bulbs and do not exceed the maximum wattage rating.
Preparing for Installation
Carefully remove the fixture from the carton and locate the yellow bag containing all parts. Remove the old fixture from the wall, including the old mounting strap. Select the pair of holes on the mounting strap (B) that matches the spacing of your junction box. Ensure the mounting screws (A) are horizontal and aligned with the holes on the backplate (F). Secure the mounting strap to the junction box using the mounting screws (D).
Connecting the Wires
Have an assistant support the fixture's weight during this process. Connect the fixture wires to the house supply wires using wire connectors, ensuring all twists are in the same direction:
- Hot: Connect to the house hot wire (black, smooth, or transparent with black inner thread).
- Neutral: Connect to the house neutral wire (white, ribbed, or transparent with white inner thread).
- Ground: Connect to the house ground wire (green, copper, or transparent with green inner thread).
If there is no house ground wire, wrap the fixture's ground wire around the ground screw (E) on the mounting bracket and tighten securely.
Finishing the Installation
Place the backplate (F) over the mounting strap (B) so the mounting screws (A) protrude through the front. Thread the deco nuts (I) onto the screws and tighten until the backplate is snug against the wall. Attach the glass shade (J) to the lamp holder (G) through the socket (H) and secure it with the socket ring (K). Install the light bulb and turn the power back on to test the fixture.
Lighting Placement Tips
For optimal lighting, consider the following guidelines:
- Kitchen Islands: Center a linear pendant over the island. Use one pendant for every 24 inches of island length. Hang fixtures at least 30 inches above the countertop.
- Dining Tables: Fixtures should hang at least 30 inches above the table. Use a fixture that is 12 inches narrower than the table width.
- Open Areas: The bottom of the fixture should hang at least 7.5 feet from the floor. Ensure there is clearance for any opening doors.
Manufacturer information
Golden Lighting
Practical help
Common problems
Fixture does not light up
Check that the power is on at the breaker, verify the bulb is installed correctly, and ensure all wire connections are secure.
Backplate is loose against the wall
Tighten the deco nuts (I) on the mounting screws (A) until the backplate is snug.
Before use
- Shut off power at the circuit breaker.
- Verify all parts are present in the yellow bag.
- Ensure you have an assistant to support the fixture weight during wiring.
- Identify house wires (Hot, Neutral, Ground) before starting.
- Confirm you have the correct light bulb (not included).
Specs in practice
- Neutral Wire
- Ribbed, white, or transparent wire with white inner thread.
Images and diagrams

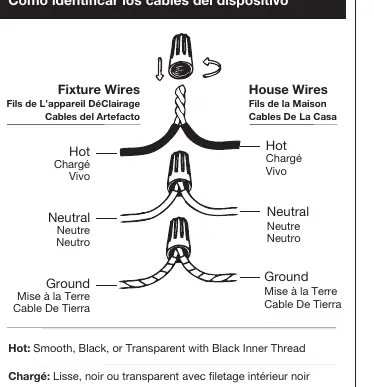

- The wiring diagram illustrates how to connect the fixture wires to the house supply wires using wire connectors.

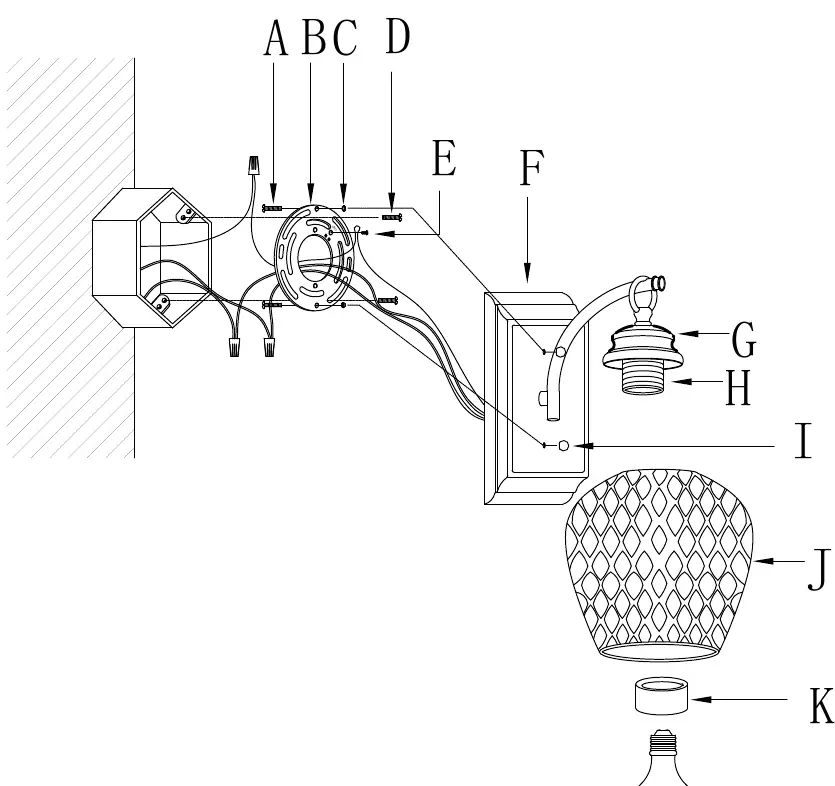

- The assembly diagram labels parts A through K, showing the sequence of mounting the strap, backplate, glass shade, and bulb.
Model compatibility
- Use only specified bulbs; do not exceed the maximum wattage.
