Assembly and Installation Guide for Golden Lighting 1830-1W
A comprehensive assembly and installation guide for the Golden Lighting 1830-1W wall light. This guide includes wiring diagrams, mounting procedures, and safety instructions to ensure proper installation.
Quick answers from the manual
Quick answer
- The Golden Lighting 1830-1W is a wall-mounted fixture. Installation requires shutting off power, connecting wires (Hot, Neutral, Ground), securing the mounting strap, attaching the backplate, and installing the glass shade and bulbs. p. 3
Key actions
- Connect fixture wires to house wires p. 2, 3
- Secure backplate to mounting strap p. 3
First start
- Turn off power, mount strap, connect wires, attach fixture, install bulbs. p. 3
Problems and fixes
No ground wire in junction box
Use ground screw (E) on the mounting bracket.
p. 3Where to find it in the PDF
- Lighting Placement Guide p. 1
- Wiring Diagram p. 2
- Assembly Instructions p. 3, 4
Table of contents
Manual images
Click an image to enlargeImportant Information
This guide provides instructions for the assembly and installation of the Golden Lighting 1830-1W fixture. All installation work should be performed by an accredited professional. Always shut off the power supply at the fuse or circuit breaker before beginning any work. Ensure you use only the specified bulbs and do not exceed the maximum wattage.
Preparation
Before starting, carefully remove the fixture from the carton and locate the yellow bag containing all parts. Remove the old fixture from the wall, including the old mounting strap. Ensure the mounting strap (A) is compatible with your junction box. Test the backplate (F) on the mounting strap (A) to ensure it hangs straight.
Wiring Instructions
Have an assistant support the fixture's weight while completing the wiring. Refer to the wiring diagram to connect the fixture wires to the power supply wires from the junction box:
- Hot: Connect to Hot (transparent wire with black inner thread, black, or smooth wire).
- Neutral: Connect to Neutral (transparent wire with white inner thread, white, or ribbed wire).
- Ground: Connect to Ground (transparent wire with green inner thread, green wire, or copper).
Twist the ends of the wire pairs together and secure them with a wire connector, ensuring all twists are in the same direction. If there is no house ground wire, locate the ground screw (E) on the mounting bracket and wrap the fixture's ground wire around it.
Installation Steps
- Secure the mounting strap (A) to the junction box using the mounting screws (D).
- Place the fixture's backplate (F) over the mounting strap (A) and secure it using screws (B) and washers until snug against the wall.
- Hold the glass shade (G) up to the socket (C) and secure it in place using the socket ring (H).
- Install the light bulbs (not included) according to the fixture's specifications.
- Turn on the power and test the fixture.
Manufacturer information
Golden Lighting
Practical help
Common problems
No ground wire in the junction box
Locate the ground screw (E) on the mounting bracket and wrap the fixture's ground wire around it, then tighten the screw.
Backplate does not hang straight
Test the backplate (F) on the mounting strap (A) before final installation to ensure the holes align correctly and the fixture hangs straight.
Before use
- Shut off power at the circuit breaker or fuse box.
- Ensure you have an assistant to support the fixture's weight during wiring.
- Verify wire identification (Hot, Neutral, Ground) using the provided guide.
- Ensure you have the correct bulbs (do not exceed maximum wattage).
Specs in practice
- Maximum Wattage
- The limit for the light bulb power; do not exceed this to prevent overheating.
Images and diagrams

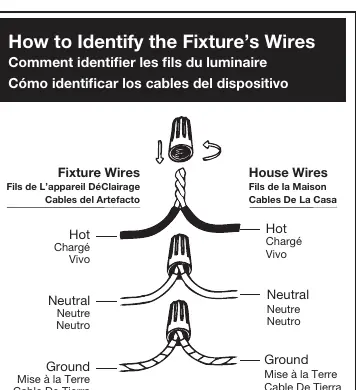

- Wiring diagram: Illustrates how to connect fixture wires to house wires using wire connectors.

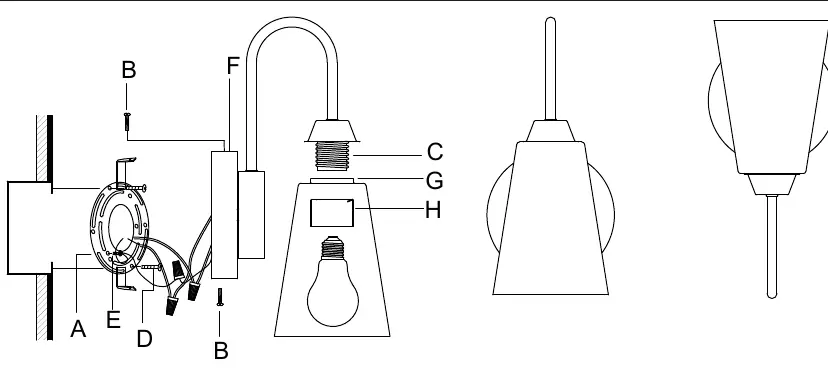

- Assembly diagram: Shows the mounting strap (A), screws (B), backplate (F), socket (C), glass shade (G), and socket ring (H).
Model compatibility
- Fixture is designed for wall mounting.
- Requires standard junction box installation.
