Golden Lighting 1945-SF 4-Light Semi-Flush Ceiling Fixture Installation Guide
Installation guide for the Golden Lighting 1945-SF 4-Light Semi-Flush Ceiling Fixture. Includes wiring diagrams, mounting instructions, and rod adjustment steps.
Quick answers from the manual
Quick answer
- This document provides installation instructions for the Golden Lighting 1945-SF 4-Light Semi-Flush Ceiling Fixture, including wiring, mounting, and rod adjustment procedures. p. 3, 4
Key actions
- Mount the strap (B) to the junction box using screws (C). p. 3
- Connect wires: Hot to Hot, Neutral to Neutral, Ground to Ground. p. 3
- Adjust rod angle using Allen key (J). p. 3
First start
- Turn on the power at the circuit breaker and test the fixture. p. 3
Where to find it in the PDF
- Lighting Placement Guide p. 1
- Assembly Diagram p. 2
- Installation Instructions (EN) p. 3
- Installation Instructions (ES) p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for installing the Golden Lighting 1945-SF 4-Light Semi-Flush Ceiling Fixture. Before beginning, ensure the power is shut off at the circuit breaker. Installation should be performed by an accredited professional. Always use the specified bulbs and do not exceed the maximum wattage.
Installation Preparation
Carefully remove the fixture from the carton and locate the yellow bag containing all parts. Ensure you have the mounting strap (B) and the necessary mounting screws (A & C).
- Shut off power at the circuit breaker.
- Remove the old fixture and the old mounting strap.
- Attach the mounting strap (B) to the junction box using mounting screws (C).
- Test the canopy (F) against the mounting strap to determine how far to insert the mounting screws (A).
- Tighten nuts (D) to secure the mounting screws (A) in place.
Wiring Instructions

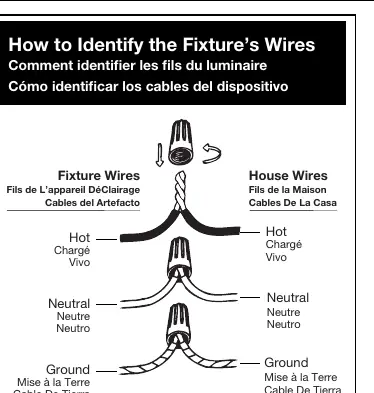

Have an assistant support the fixture's weight while completing the wiring. Refer to the wiring diagram to connect the fixture wires to the house supply wires:
- Hot to Hot: Connect the fixture's smooth, black, or transparent wire with black inner thread to the house's hot wire.
- Neutral to Neutral: Connect the fixture's ribbed, white, or transparent wire with white inner thread to the house's neutral wire.
- Ground to Ground: Connect the fixture's copper, bare metal, green, or transparent wire with green inner thread to the house's ground wire.
- If there is no house ground wire, use the ground screw (E) on the mounting bracket to secure the fixture's ground wire.
Twist the ends of the wire pairs together and secure them with a wire connector, ensuring all twists are in the same direction.
Final Assembly and Adjustment
- Lift the canopy (F) up to the mounting strap (B), ensuring the mounting screws (A) protrude through the canopy holes.
- Thread the decorative nuts (G) onto the exposed threads of the mounting screws (A) until the canopy is snug against the ceiling.
- Adjust the angle of the rods (H) using the provided Allen key (J) at the notches near the distributor.
- Unscrew the nut with the Allen key to loosen, adjust the position, and retighten to lock the rods in place.
- Install the light bulbs (not provided) into the sockets (I).
- Turn on the power and test the fixture.
Lighting Placement Tips
For optimal lighting, consider the following guidelines:
- Kitchen Islands: Center a linear pendant over the island. Use one pendant for every 24 inches of island length. Fixtures should hang at least 30 inches above the countertop.
- Dining Tables: Fixtures should hang at least 30 inches above the table. Use a fixture that is 12 inches narrower than the width of the table.
- Open Areas: The bottom of the fixture should hang at least 7.5 feet from the floor.
Manufacturer information
Golden Lighting
Practical help
Common problems
Fixture rods are not at the desired angle
Use the provided Allen key (J) to loosen the nut at the distributor, adjust the rod angle, and retighten the nut to lock the position.
No ground wire available in the junction box
Locate the ground screw (E) on the mounting bracket/strap and wrap the fixture's ground wire around it, then tighten the screw.
Before use
- Shut off power at the circuit breaker
- Remove old fixture and mounting strap
- Verify you have the correct bulbs (do not exceed max wattage)
- Have an assistant support the fixture weight during wiring
- Ensure wire connections are twisted in the same direction
Specs in practice
- Neutral Wire
- Ribbed, white, or transparent wire with white inner thread
Images and diagrams
- The wiring diagram illustrates the correct connection of Hot, Neutral, and Ground wires using wire connectors.

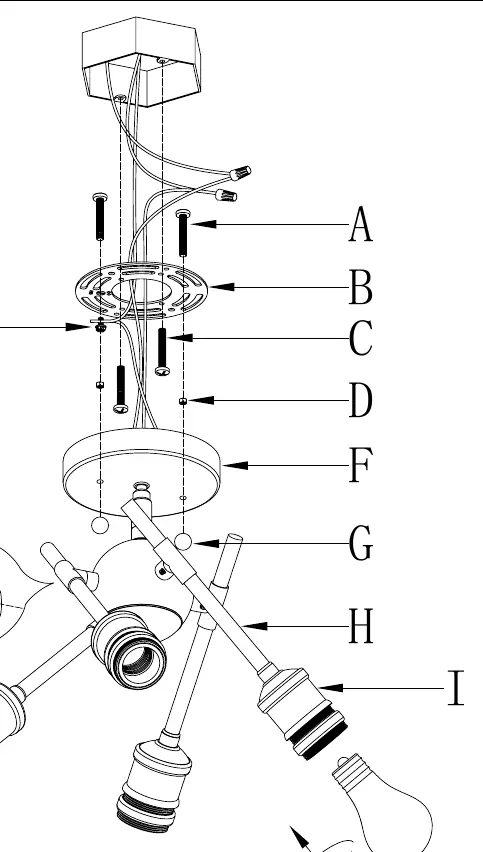

- The assembly diagram shows the sequence of mounting the strap (B), canopy (F), and rod assembly (H).
