Assembly Instructions for Golden Lighting 1993-M1L Pendant Light
Quick guide for installing the Golden Lighting 1993-M1L pendant light. Includes wiring diagrams, chain adjustment steps, and safety guidelines for proper mounting.
Quick answers from the manual
Quick answer
- This manual provides assembly and installation instructions for the Golden Lighting 1993-M1L pendant light, including wiring identification and mounting steps. p. 2, 3, 4
Key actions
- Shut off power supply at fuse or circuit breaker. p. 3
- Attach mounting strap (A) to the junction box using mounting screws (B). p. 3
- Measure and adjust chain (J) length, then attach to top loop (L) and canopy loop (H). p. 3
- Connect fixture wires to house wires (Hot to Hot, Neutral to Neutral, Ground to Ground). p. 2, 3
- Secure canopy (G) to the ceiling using canopy loop collar (I). p. 3, 4
First start
- Turn on the power and test the fixture. p. 3, 4
Where to find it in the PDF
- Lighting placement guidelines p. 1
- Parts diagram and wire identification p. 2
- Assembly instructions (English, French, Spanish) p. 3
- Finishing installation (Spanish) p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly and installation instructions for the Golden Lighting 1993-M1L pendant light. All installation work should be performed by an accredited professional. Ensure the power supply is shut off at the fuse or circuit breaker before beginning. Use only the specified bulbs and do not exceed the maximum recommended wattage.
Placement guidelines
Proper placement is essential for optimal lighting:
- Kitchen Island: Center a linear pendant over the island. If using hanging pendants, use one for every 24 inches of island length. Fixtures should hang at least 30 inches above the countertop.
- Dining Room Table: Fixtures should hang at least 30 inches above the table. Use a fixture that is 12 inches narrower than the width of the table.
- Open Areas: The bottom of the fixture should hang at least 7.5 feet from the floor. Ensure there is clearance for any opening doors.
Assembly instructions
- Preparation: Carefully remove the fixture and parts bag from the carton. Shut off power at the circuit breaker and remove the old fixture and mounting strap.
- Mounting: Attach the threaded nipple (F) to the mounting strap (A) using the hex nut (C) and washer (D). Secure the mounting strap (A) to the junction box using the mounting screws (B).
- Chain Adjustment: Measure the required chain (J) length. Use pliers to open and remove excess chain links. Attach chain connectors (K) to each end of the chain. Connect one end to the top loop (L) and the other to the canopy loop (H). Close the connectors to secure.
- Wiring: Feed the fixture wires through the chain (every three links) and through the canopy loop (H) and canopy (G). Slide the canopy loop collar (I) and canopy (G) down onto the chain/wire.
Wiring instructions
Have an assistant support the fixture's weight while connecting wires:
- Hot to Hot: Connect the fixture's hot wire (smooth, black, or transparent with black inner thread) to the house hot wire.
- Neutral to Neutral: Connect the fixture's neutral wire (ribbed, white, or transparent with white inner thread) to the house neutral wire.
- Ground to Ground: Connect the fixture's ground wire (copper, bare metal, green, or transparent with green inner thread) to the house ground wire. If no house ground wire exists, wrap the fixture ground wire around the ground screw (E) on the mounting bracket.
Twist wire ends together and secure with a wire connector, ensuring all twists are in the same direction.
Finishing the installation
- Push the canopy (G) up to the ceiling.
- Slide the canopy loop collar (I) up and thread it tightly onto the canopy loop (H) to secure the canopy in place.
- Install a light bulb (not provided) into the shade (M) according to the fixture's specifications.
- Turn on the power and test the fixture.
Manufacturer information
Golden Lighting
Practical help
Common problems
Fixture wires do not match house wires
Identify wires by texture: Hot is smooth/black, Neutral is ribbed/white, Ground is copper/green/bare metal.
Chain is too long
Use a pair of pliers to open the chain links, remove the excess, and close the links securely.
Before use
- Shut off power at the circuit breaker.
- Ensure you have an assistant to support the fixture weight during wiring.
- Verify the junction box is ready for mounting.
- Check that you have the correct light bulb (not provided).
- Ensure all installation work is done by an accredited professional.
Specs in practice
- Neutral Wire
- Completes the circuit; identified by ribbed texture, white color, or transparent wire with white inner thread.
Images and diagrams

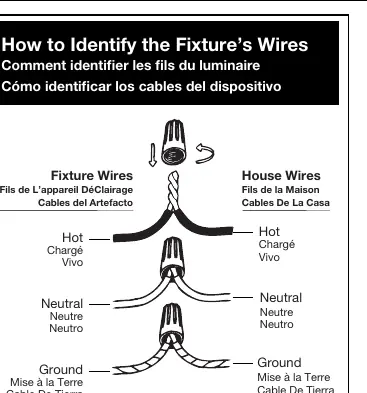

- Wiring Diagram: Illustrates the correct connection of fixture wires to house wires using wire connectors.

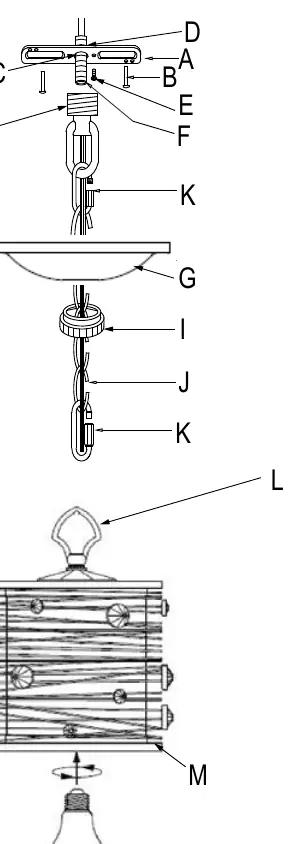

- Assembly Diagram: Shows the sequence of parts including the mounting strap, canopy, chain, and shade.
