Plumbing / Showers & Tubs
Installation and User Guide for Hansgrohe Crometta 85 Hand Shower
Comprehensive installation and maintenance guide for the Hansgrohe Crometta 85 hand shower series. Includes safety guidelines, cleaning instructions, and technical specifications.
Quick answers from the manual
Quick answer
- The Hansgrohe Crometta 85 hand shower must be installed with the pre-mounted filter insert to ensure proper flow and prevent damage from pipe debris. It operates optimally between 0.1 and 0.4 MPa. p. 3, 19
Key actions
- Install the pre-mounted filter insert. p. 19
- Clean using a citrus-based cleaner. p. 20
Problems and fixes
Reduced flow or damage to internal parts
Check and clean the filter insert.
p. 3, 20Maintenance and reset
- Clean the shower head with a citrus-based cleaner for a maximum of 10 minutes, then rinse thoroughly for at least 1 minute. p. 20
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Operating Pressure | 0.6 MPa | Maximum pressure limit | p. 3 |
| Recommended Pressure | 0.1 - 0.4 MPa | Optimal operating range | p. 3 |
| Max Hot Water Temp | 60°C | Maximum safe temperature | p. 3 |
Where to find it in the PDF
- Installation p. 19
- Cleaning p. 20
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Hansgrohe Crometta 85 hand shower is designed for easy installation and maintenance. The most critical step for long-term performance is ensuring the pre-mounted filter insert is correctly installed to prevent debris from entering the shower head. Regular cleaning with a mild, citrus-based cleaner is recommended to maintain flow.
Safety instructions
- Avoid direct contact of the shower spray with sensitive body parts, such as the eyes.
- Maintain an adequate distance between the shower head and your body during use.
Installation
The hand shower comes with a pre-mounted filter insert. This must be used to ensure the standard flow rate and to prevent dirt from the water supply from entering the unit. Debris can impair the function of the shower and potentially damage internal components. Hansgrohe is not liable for damages resulting from the failure to use this filter.
Cleaning
To clean the hand shower:
- Remove the filter insert if necessary.
- Use a citrus-based cleaning agent.
- Do not soak the shower head for more than 10 minutes.
- Rinse the shower head thoroughly with clean water for at least 1 minute after cleaning.
Technical data
- Operating pressure: max. 0.6 MPa
- Recommended operating pressure: 0.1 - 0.4 MPa
- Hot water temperature: max. 60°C
- Conversion: 1 MPa = 10 bar = 147 PSI
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Reduced water flow
Check the pre-mounted filter insert for debris and clean it if necessary.
Debris in the shower head
Ensure the filter insert is properly installed to prevent dirt from the pipes from entering the shower.
Before use
- Ensure the pre-mounted filter insert is in place.
- Verify that the water pressure is within the recommended 0.1 - 0.4 MPa range.
- Check that the hot water temperature does not exceed 60°C.
Specs in practice
- Operating pressure
- The maximum pressure the unit can withstand is 0.6 MPa.
- Recommended pressure
- For optimal performance, maintain pressure between 0.1 and 0.4 MPa.
- Hot water temperature
- The water temperature should not exceed 60°C to prevent damage.
Images and diagrams
- Page 19 illustrates the installation of the filter insert.

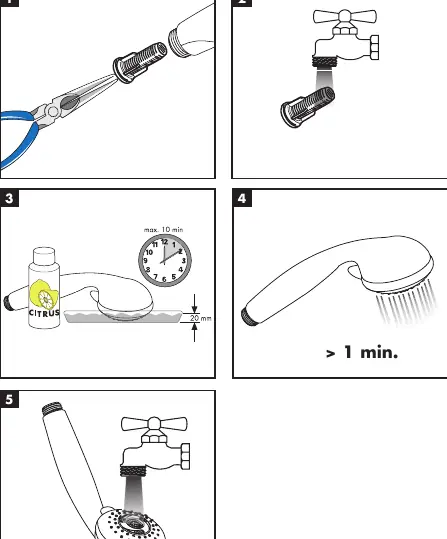

- Page 20 provides a step-by-step visual guide for cleaning the shower head.
Model compatibility
- Compatible with standard G 1/2 connections.
