Installation and User Guide for Hansgrohe Rainfinity Overhead Shower 360 1jet
Official installation and technical guide for the Hansgrohe Rainfinity Overhead Shower 360 1jet. Includes dimensions, flow rates, installation examples, and a complete spare parts list.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Hansgrohe Rainfinity Overhead Shower 360 1jet is a premium wall-mounted shower head designed for a specific showering experience. Key operational requirements include a minimum flow pressure of 2 bar. Please note that this product is not suitable for use with continuous flow water heaters.
Product Description
The shower head features the PowderRain spray type, providing a flow rate of 21 l/min at 3 bar pressure. The unit is constructed with a metal frame and an aluminium spray disc with a graphite surface. The shower head is removable for cleaning and can be vertically inclined by 10-30 degrees.
Installation

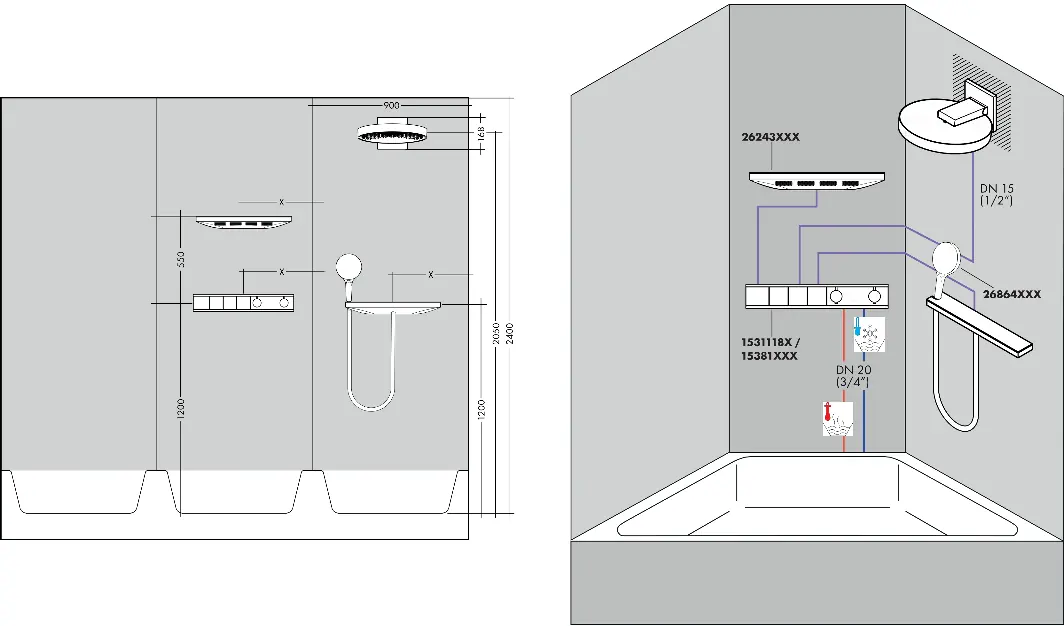

The shower is designed for wall installation using a G 1/2 connection thread (DN15). Installation examples provided in the manual illustrate the necessary plumbing configuration for the wall outlet and shower head assembly.
Maintenance and Spare Parts
The overhead shower is removable to facilitate cleaning. An exploded drawing is provided to assist with identifying components. The spare parts list includes items such as the head shower, installation unit, filter packing, and various O-rings. If you experience issues with flow, ensure the filter packing (Pos 7) is clean and free of debris.
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Low water flow
Check the filter packing (Pos 7) for blockages or debris and clean if necessary.
Incompatibility with water heater
This product is not suitable for continuous flow water heaters; ensure your system is compatible before installation.
Before use
- Ensure water supply pressure is at least 2 bar.
- Verify that the wall connection is G 1/2 (DN15).
- Confirm that your water heating system is not a continuous flow type.
- Check that the shower head is securely mounted to the wall outlet.
Specs in practice
- Shower head size
- 360 mm diameter.
- Connection thread
- G 1/2 (DN15) standard plumbing connection.
Images and diagrams

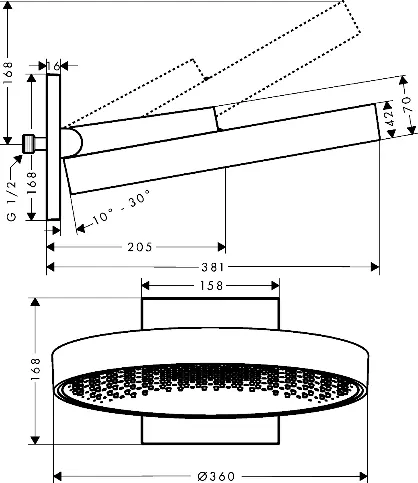

- The scale drawing shows the dimensions of the shower head and the projection from the wall.
- Installation examples demonstrate the plumbing layout for the wall connector.
- The exploded drawing identifies all individual components for maintenance and repair.
Model compatibility
- Not suitable for continuous flow water heaters.
