Owner's Manual for Daytona 3600 lb Pinch Weld Vehicle Dollies DPD-180
Comprehensive owner's manual for the Daytona 3600 lb Pinch Weld Vehicle Dollies (DPD-180). Includes detailed assembly instructions, operating procedures, safety guidelines, maintenance tips, and technical specifications.
Quick answers from the manual
Quick answer
- The DPD-180 Vehicle Dollies are designed for transporting vehicles. They must be used in pairs on hard, level surfaces with a maximum capacity of 3600 lb (1800 lb each). p. 1, 3
Key actions
- Assemble the dollies by attaching casters to the base and securing the saddle head assembly with the lock pin. p. 4
- Operate by lifting the vehicle, placing dollies under pinch welds, adjusting the saddle, and locking the casters. p. 5
First start
- Assemble on a flat, level, hard, and smooth surface before use. p. 4
Problems and fixes
Abnormal noise or vibration
Stop use and have the problem corrected by a qualified technician.
p. 6Maintenance and reset
- Wipe with a clean cloth after every use and lubricate caster swivel bearings periodically. p. 6
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated Capacity | 3600 lb (1800 lb each) | Maximum weight capacity | p. 3 |
| Adjustable Height | 10" - 14" | Height range of the saddle | p. 3 |
| Adjustable Saddle Width | 0" - 1" | Width range of the saddle opening | p. 3 |
Where to find it in the PDF
- Assembly Instructions p. 4
- Operating Instructions p. 5

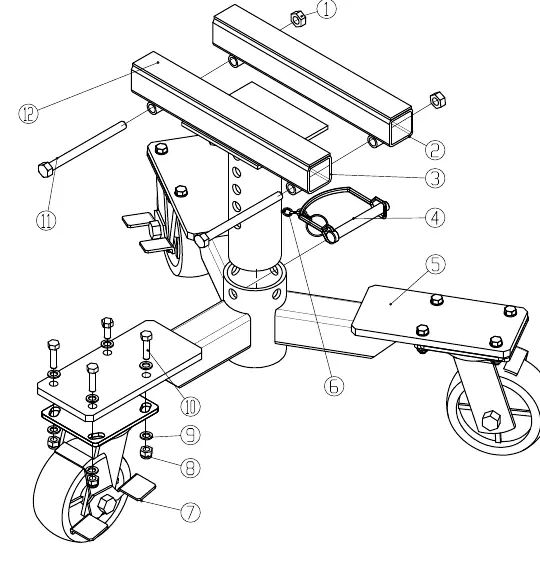

- Parts List p. 7
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Daytona 3600 lb Pinch Weld Vehicle Dollies (DPD-180) are designed for transporting vehicles. Important: Always use these dollies in pairs. They must be used on a hard, level, and smooth surface. Do not exceed the rated capacity of 3600 lb (1800 lb per dolly). Never start the vehicle while it is on the dollies, and do not allow anyone to remain inside the vehicle during use.
Specifications
- Rated Capacity: 3600 lb (1800 lb each)
- Adjustable Height: 10" - 14"
- Adjustable Saddle Width: 0" - 1"
Assembly
- Assemble the unit on a flat, level, hard, and smooth surface.
- Attach each caster to the base using caster bolts, washers, and nuts. Ensure one washer is under the bolt head and another between the nut and caster plate.
- Assemble the saddle head slide onto the saddle head using saddle bolts and nuts.
- Insert the saddle assembly into the base, align the holes, and secure with the lock pin and loop wire lock.
- Secure the chain to the lock pin and the metal loop on the base using the split rings.
Operating Instructions
- Lift the vehicle high enough to roll the dollies underneath. Place one dolly on each side of the vehicle body under the frame pinch weld.
- Remove the lock pin, raise the saddle to the necessary height, re-insert the lock pin, and secure it with the loop wire lock.
- Align the saddle opening with the vehicle's pinch weld.
- Loosen the saddle bolts and open the saddle wide enough for the frame pinch weld to fit into the openings.
- Slowly lower the vehicle body onto the saddles. Ensure the pinch welds are properly lined up with the saddle openings before lowering completely.
- Secure the vehicle to the dollies by tightening the saddle bolts.
- Lock the casters by pressing all six caster locks into the ON position.
Inspection and Maintenance
Procedures not specifically explained in this manual must be performed only by a qualified technician.
- Before Each Use: Inspect the general condition of the dolly. Check for broken, cracked, or bent parts, and loose or missing hardware. Do not use if damaged.
- After Every Use: Wipe the dolly with a clean cloth and store in a safe, dry location out of reach of children.
- Periodically: Lubricate the caster swivel bearings through the grease fittings.
Manufacturer information
Harbor Freight Tools
Practical help
Common problems
Abnormal noise or vibration during use
Stop using the equipment immediately and have the problem corrected by a qualified technician.
Parts missing or broken upon unpacking
Call 1-800-444-3353 as soon as possible.
Before use
- Inspect for broken, cracked, or bent parts.
- Ensure all parts are present and not loose.
- Verify the surface is hard, level, and smooth.
- Confirm you have a second dolly (use in pairs).
- Check that the vehicle is not occupied.
Specs in practice
- Rated Capacity
- 3600 lb total (1800 lb per dolly). Do not exceed this weight.
- Adjustable Height
- The saddle can be adjusted between 10 and 14 inches.
- Adjustable Saddle Width
- The saddle opening can be adjusted between 0 and 1 inch to fit pinch welds.
Images and diagrams

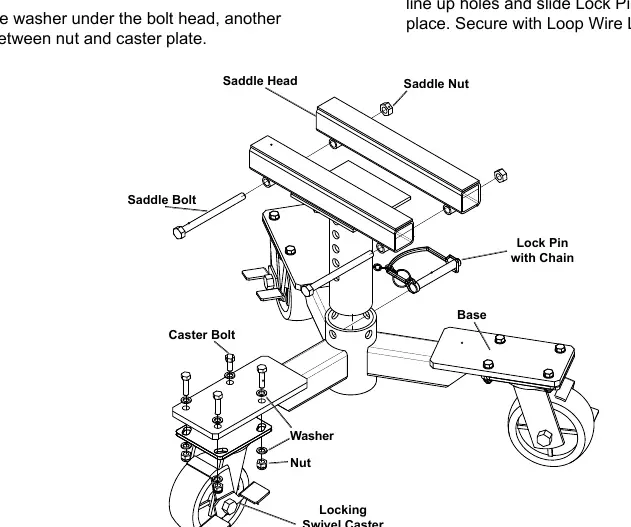

- The assembly drawing illustrates the base, caster attachment points, and the saddle head assembly.
- The operating diagram shows the correct placement of the dolly under the vehicle's pinch weld.
Model compatibility
- Use only on hard, level surfaces.
- Do not use for aircraft purposes.
- Use only in pairs.
Manual page author
Emily Carter
User documentation editor
Prepares concise manual descriptions and highlights the most useful setup, operation, and maintenance information for readers.
