User Manual for Warrior 1500W Dual Temperature Heat Gun 56434
Quick guide for the Warrior 1500W Dual Temperature Heat Gun (Model 56434). Includes safety warnings, operating instructions, heat settings, maintenance, and troubleshooting.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides essential safety and operating instructions for the Warrior 1500W Dual Temperature Heat Gun (Model 56434). Always read the full safety information before use. The tool features a three-way rocker switch for temperature control and is designed for various applications including paint removal, shrinking tubing, and welding.
Safety Warnings
- Lead Paint Warning: Do not use this heat gun to remove lead-based paint. Lead dust is poisonous and can cause irreversible brain damage.
- Flammable Materials: Do not use near flammable materials. Gases developed from plastics or varnishes can be explosive.
- Hot Surfaces: The nozzle becomes extremely hot. Do not touch the nozzle or heating element during or immediately after use. Always set the tool on a flat, level surface with the nozzle pointing upwards when not in use.
- Electrical Safety: Ensure the tool is plugged into a properly grounded outlet. Do not use if the cord or plug is damaged.

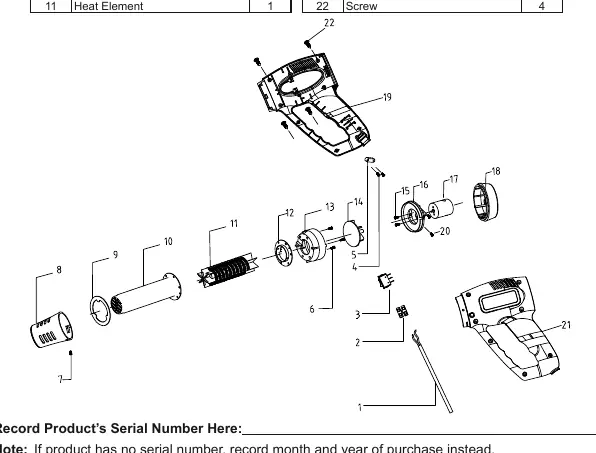

Components
The heat gun features a barrel cover and a three-way power switch located on the handle. The switch settings are: 0 (OFF), I (LOW - 700°F), and II (HIGH - 1000°F).
Operating Instructions
Setup: Ensure the work area is clean, well-lit, and free of children or pets. Secure work pieces with clamps if necessary.
Operation:
- Ensure the power switch is in the "0" (OFF) position before plugging into a 120V grounded outlet.
- Set the switch to "I" for low temperature (700°F) or "II" for high temperature (1000°F).
- To turn off, set the switch to "I" briefly to allow the heating element to cool, then set to "0" and unplug.
Maintenance and Servicing
- Before Each Use: Inspect for loose screws, damaged wiring, or binding parts.
- After Use: Clean external surfaces with a moist cloth and mild detergent. Do not use solvents.
- Repairs: All maintenance not mentioned in this manual must be performed by a qualified service technician.
Troubleshooting
- Heat Gun will not turn on: Check if the switch is set to "0", ensure the outlet has power, and verify the cord is connected.
- Unsatisfactory results: Adjust the heat setting (I or II) to match the application.
Specifications
- Electrical Input: 120 VAC / 60 Hz / 1500 Watts
- Heat Temperatures: Low (700°F), High (1000°F)
- Setting Type: Three-Way Rocker Switch
Manufacturer information
Harbor Freight Tools
Practical help
Common problems
Heat gun will not turn on
Ensure the power switch is set to 'I' or 'II', check the power outlet, and verify the power cord is securely plugged in.
Unsatisfactory results
Adjust the heat setting (I or II) to better suit the specific application.
Before use
- Inspect the tool for loose screws, cracked parts, or damaged wiring.
- Ensure the work area is clean, well-lit, and free of flammable materials.
- Secure loose work pieces using a vise or clamps.

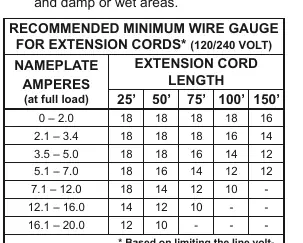

- Verify the extension cord gauge is appropriate for the length and amperage (see Table A in manual).
