Installation Manual for LeoVince 15250FB Exhaust Muffler

Quick guide from the manual

This document provides installation instructions for the LeoVince 15250FB slip-on exhaust muffler designed for the Ducati Scrambler 800 (including the 35 kW version). Before starting, ensure the engine and exhaust system are completely cool to prevent burns or damage to heat-sensitive components. After installation, it is normal to experience slight gas leakage during the initial break-in period; check and tighten all fasteners after approximately 100 km of use.

List of components

• 1 - Silencer (Muffler)
• 2 - Link pipe
• 3 - Fitting kit

Installation instructions

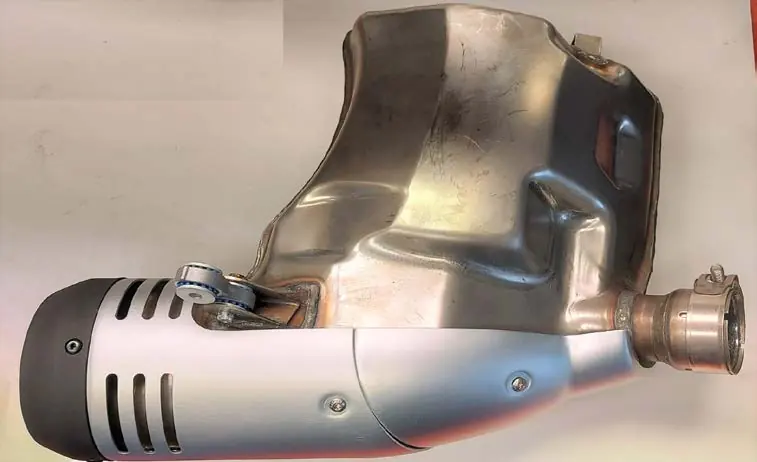

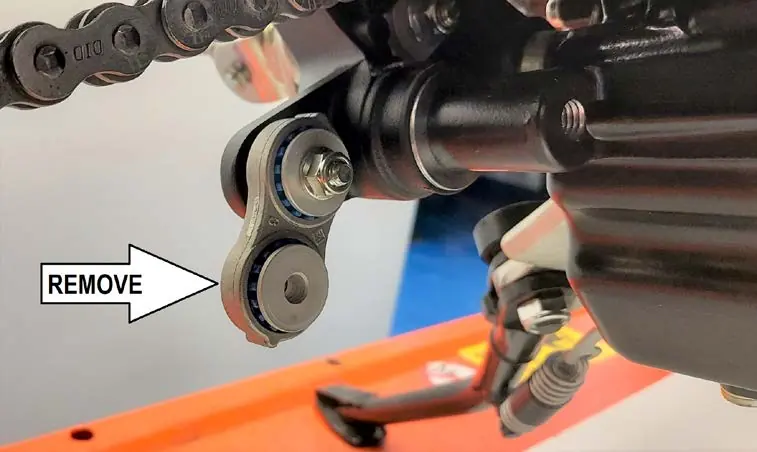

1. Remove the original silencer.
2. Verify that the mating surfaces are clean. Slide the link pipe onto the original header, taking care not to damage the graphite bushing (if supplied). Partially tighten the securing strap to allow for adjustments.

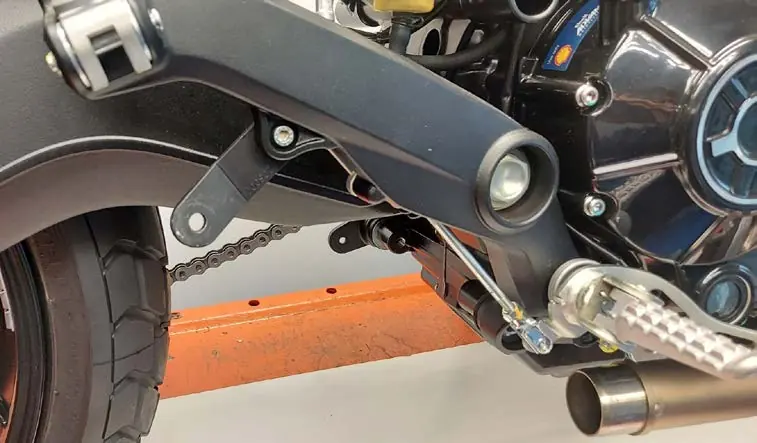

3. Attach the support bracket to the motorcycle frame using the supplied screw.
4. Slide the LeoVince silencer onto the link pipe. Check the alignment of the mounting eyes for the springs and the exhaust outlet.
5. Connect the parts using the provided springs.
6. Mount spacers, washers, and brackets as shown in the technical drawing and secure them by tightening the nuts and bolts.
7. Tighten all clamps to secure the connection between the LeoVince link pipe and the original exhaust header.
8. Start the engine, wait a few minutes to reach operating temperature, and check for any gas leaks.

Maintenance and care

Periodically check all brackets and fasteners, as they may be affected by use. Inspect sound-deadening material, seals, and rubber parts, and replace them if necessary. The silencer can be cleaned using gasoline, diesel oil, or alcohol; do not use any solvents. Note that discoloration of the silencer is normal due to heat and material properties and is not a defect.

Warnings

Any modification or tampering with the exhaust silencer is strictly prohibited. Belgrove Sp. z o.o. declines all responsibility for defects or malfunctions resulting from modified products. Professional installation is highly recommended.
