User Manual for LeoVince 15220FB LV-10 Slip-On Exhaust
Quick guide for installing and maintaining the LeoVince 15220FB LV-10 Slip-On Exhaust for Husqvarna Svartpilen 701 and Vitpilen 701. Includes assembly steps, maintenance tips, and safety warnings.
Table of contents
Quick guide from the manual
This document provides installation and maintenance instructions for the LeoVince 15220FB LV-10 Slip-On Exhaust, designed for the Husqvarna Svartpilen 701 and Vitpilen 701 (including the 33 kW version). Always ensure the exhaust system is cool before performing any work to prevent burns or damage to heat-sensitive components.
Installation
- Remove the original silencer: Carefully remove the stock exhaust system from the motorcycle.
- Prepare surfaces: Ensure all mating surfaces are clean and in good condition.
- Install link pipe: Slide the LeoVince link pipe onto the original header. If a graphite bushing is supplied, use it to replace the original one, taking care not to damage it. Partially tighten the securing strap to allow for further adjustments.
- Install silencer: Slide the LV-10 silencer onto the link pipe. Verify the alignment of the mounting eyes for the springs and the exhaust outlet.
- Secure parts: Connect the silencer and link pipe using the provided springs. Mount spacers, washers, and support brackets as shown in the technical drawing, then tighten all nuts and bolts.
- Final check: Tighten the clamps joining the link pipe to the header. Start the engine, let it reach operating temperature, and check for any gas leaks.
Important Notes
During the first kilometers of use, the exhaust system will undergo a break-in period. Slight gas leakage may occur initially. It is mandatory to check and retighten all fasteners after approximately 100 km of riding.
Maintenance
Periodically check all brackets and fasteners, as they may be affected by use. Inspect components such as sound-deadening material, seals, and rubber parts, and replace them if necessary. To clean the silencer, use gasoline, diesel oil, or alcohol; do not use any solvents. Discoloration of the silencer is normal and results from heat and the nature of the materials used.
Safety and Restrictions
Any modification or tampering with the exhaust silencer is strictly forbidden. Belgrove Sp. z o.o. declines all responsibility for defects, problems, or malfunctions arising from the use of a modified product. Professional installation is highly recommended.
Manufacturer information
LeoVince
Practical help
Common problems
Slight gas leakage during first use
This is normal during the break-in period. Ensure all fasteners are checked and retightened after the first 100 km.
Discoloration of the silencer
This is a normal result of heat and the nature of the materials used and is not a defect.
Before use
- Ensure the engine and exhaust system are completely cool.
- Verify all components listed in the manual are present.
- Check that mating surfaces are clean and free of debris.
- Have the necessary tools ready for assembly.
- Ensure the graphite gasket is correctly positioned if supplied.
Specs in practice
- 100 km check
- Mandatory inspection and retightening of all bolts and fasteners after the first 100 km of riding.
- Cleaning agents
- Use only gasoline, diesel oil, or alcohol. Do not use solvents.
Images and diagrams

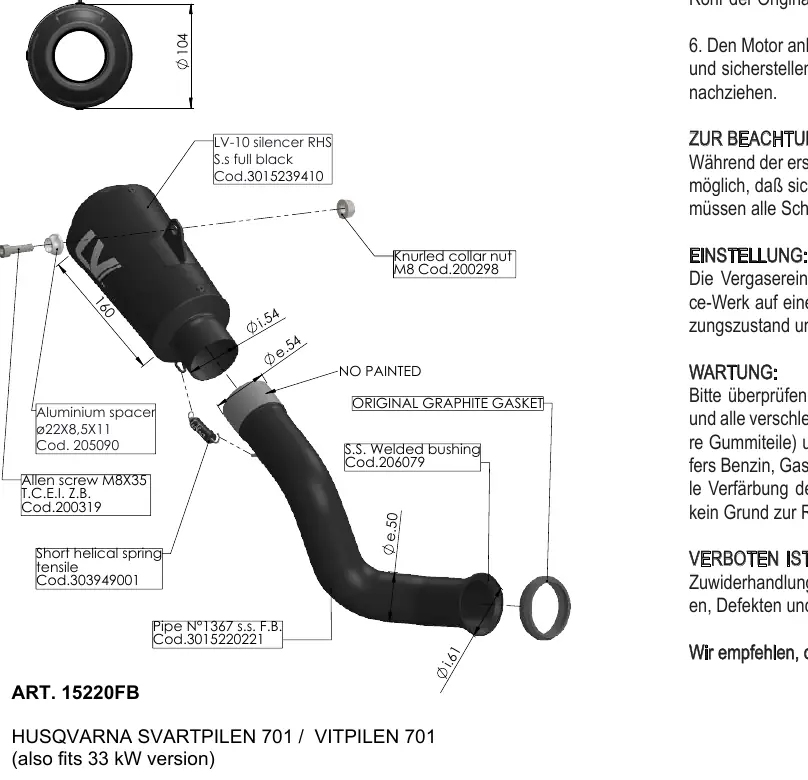

- The technical drawing illustrates the assembly order of the silencer, link pipe, springs, and spacers.
- Pay attention to the orientation of the springs and the placement of the aluminium spacers.
Model compatibility
- Compatible with Husqvarna Svartpilen 701 and Vitpilen 701.
- Also fits the 33 kW version.
