Installation Manual for LeoVince 15248C Slip-On LV-10 Carbon
Quick installation guide for the LeoVince 15248C Slip-On LV-10 Carbon exhaust system for Aprilia RSV4 1100 and Tuono V4 1100. Includes step-by-step mounting instructions, component list, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeImportant Information
This document provides installation instructions for the LeoVince 15248C Slip-On LV-10 Carbon exhaust system. It is designed for the Aprilia RSV4 1100 / Factory and Aprilia Tuono V4 1100 / Factory. Professional installation is highly recommended. Ensure the exhaust system has cooled completely before beginning any work to prevent burns or damage to heat-sensitive components.
Components List
The kit includes the following main components:
- Silencer (LV-10 Carbon)
- Link pipe
- Fitting kit (screws, washers, spacers, brackets)
- Heat shield
Installation Instructions
Follow these steps to install the exhaust system:

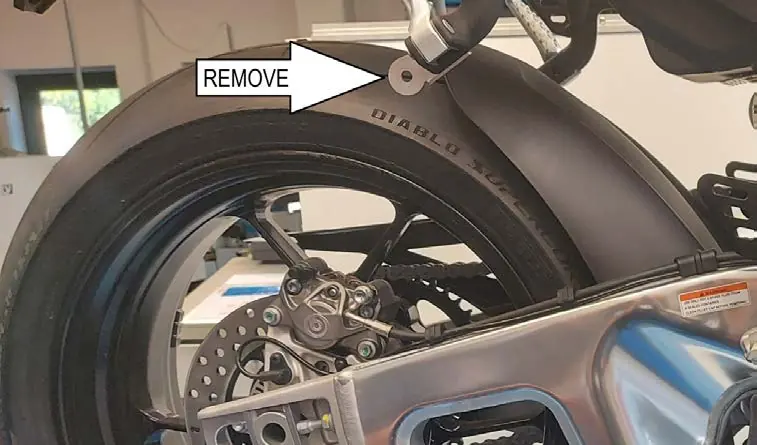

- Preparation: If present, remove the complete fairing. Remove the original silencer(s).

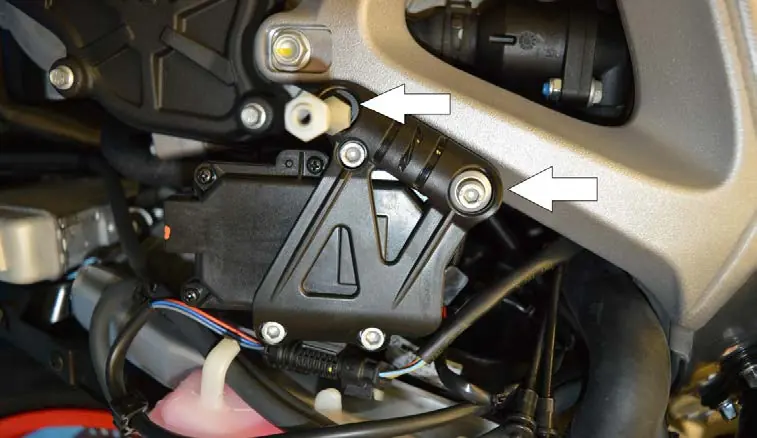

- Valve Cable Removal: Remove the two valve actuation cables. Remove the two fixing screws, then rotate the servomotor 180 degrees to access the non-visible side where the cables are located. Disconnect the connector, remove the cables permanently from the frame, reconnect the connector, and reassemble the servomotor.
- Link Pipe Installation: Check that mating surfaces are clean. Slide the link pipe onto the original header, taking care not to damage the graphite bushing (if supplied). Partially tighten the securing strap.
- Silencer Installation: Slide the Leovince silencer onto the link pipe. Check the alignment of the mounting eyes for the springs and the exhaust outlet. Connect the parts using the provided springs.

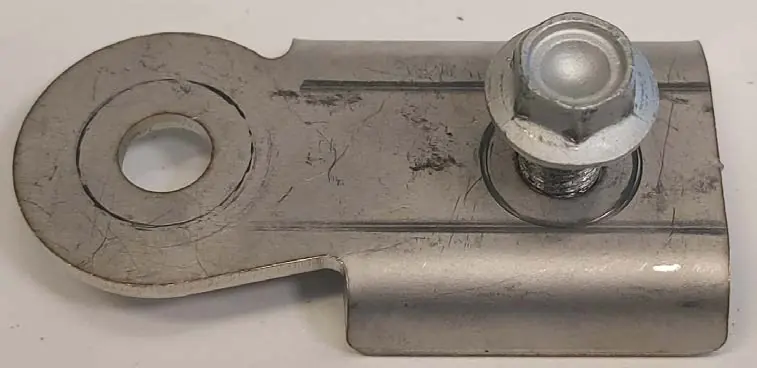

- Final Assembly: Fit the clamps to the silencer. Mount spacers, washers, and brackets as shown in the technical drawing. Secure everything by tightening all nuts and bolts.
- Testing: Start the engine, wait a few minutes until it reaches operating temperature, and check for any gas leaks.
Maintenance
To ensure the longevity of your exhaust system:
- Break-in Period: During the first kilometers, the exhaust system will settle, and slight gas leakage may occur. After approximately 100 km, check and tighten all fasteners.
- Cleaning: The silencer may be cleaned using gasoline, diesel oil, or alcohol. Do not use any solvents.
- Inspection: Periodically check all brackets, fasteners, and rubber parts for wear and replace them if necessary.
- Discoloration: A change in the color of the silencer is normal due to heat and the nature of the materials used.
Manufacturer information
LeoVince
Practical help
Common problems
Slight gas leakage during first use
This is normal during the break-in period. Check and tighten all fasteners after approximately 100 km.
Discoloration of the silencer
This is a normal result of heat and material properties and is not a defect.
Before use
- Ensure the engine and exhaust system are completely cool.
- Verify all components from the list are present.
- Have necessary tools ready for fairing and servomotor removal.
- Ensure the vehicle is in standard trim.
Images and diagrams
- The technical drawing shows the assembly order of the silencer, link pipe, and mounting hardware.
- Photos illustrate the specific process for removing valve actuation cables from the servomotor.
Model compatibility
- Compatible with Aprilia RSV4 1100 / Factory.
- Compatible with Aprilia Tuono V4 1100 / Factory.
