Locinox Valentino Surface Mounted Battery Powered Code Lock
Quick guide for the Locinox Valentino surface-mounted battery-powered code lock. Learn about key features, specifications, installation options, and maintenance for the 05LV40 model.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Locinox Valentino is a surface-mounted, battery-powered code lock designed for high-traffic gate access. It is built for durability and ease of use, featuring an illuminated keypad on both sides and a vandal-proof battery compartment. The system is designed for quick setup and modification of access codes.
Key features
- Durability: E-coated lock box (ISO 9227 KTL) tested to withstand 1000 hours of salt spray.
- Battery life: Operates on 6 Lithium-metal AA batteries (included), providing up to 150,000 open/close cycles.
- Access control: Supports up to 100 different entry and exit codes.
- Versatility: Compatible with free-exit, pushbar, and code-controlled handles.
- Weather protection: Illuminated electronic code panel on both sides.
Installation and adjustment
The lock is designed for easy installation on various gate types. It features a roller bolt for smooth closing and offers 20mm of bolt adjustability to ensure a perfect fit. The system supports different entrance and exit codes and allows for permanently open codes.
Maintenance and operation
The system includes a low battery warning light to alert users when power is running low. The battery compartment is vandal-proof to protect the power source. Programming and code modification are designed to be fast and straightforward. Key-operated unlocking is also supported for programming and emergency access.
Practical help
Common problems
Low battery
The lock features a low battery warning light; replace the 6 Lithium-metal AA batteries when indicated.
Bolt alignment issues
The bolt has an adjustability of 20mm to ensure smooth closing; adjust as necessary.
Before use
- Ensure the gate is compatible with surface-mounted locks.
- Verify the handle type (free-exit, pushbar, or code-controlled) is supported.
- Check that the 6 Lithium-metal AA batteries are installed.
- Confirm the desired entry and exit codes for programming.
Specs in practice
- ISO 9227 KTL
- E-coated lock box tested to withstand 1000 hours of salt spray.
- Bolt adjustability
- 20mm range for fine-tuning the latching mechanism.

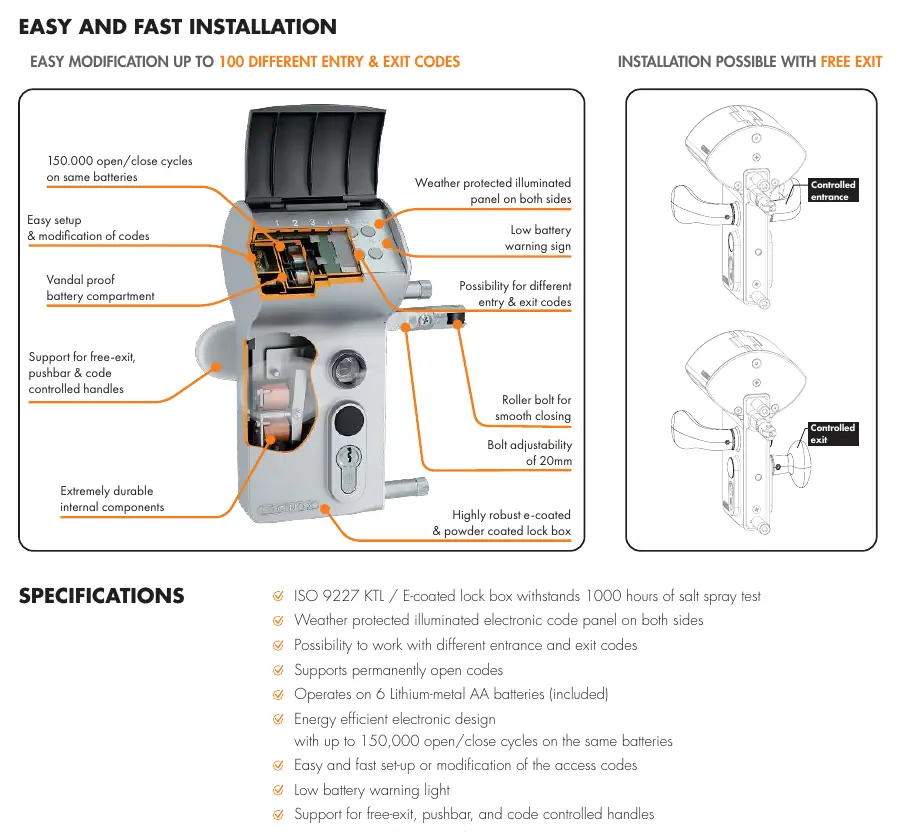

Images and diagrams
- The lock features an illuminated keypad on both sides for secure entry and exit.
- The internal mechanism includes a roller bolt for smooth operation.
- The battery compartment is vandal-proof.
Model compatibility
- Supports free-exit, pushbar, and code-controlled handles.
