User Manual for Sanela SLU 01N Automatic Faucet

Important information from the manual

The Sanela SLU 01N is an automatic washbasin tap designed for cold or premixed water, operating on 24V DC. Crucial Warning: For proper function, the unit must be kept under constant voltage. Do not connect the power supply unit behind a light switch or any other switch that interrupts the circuit.

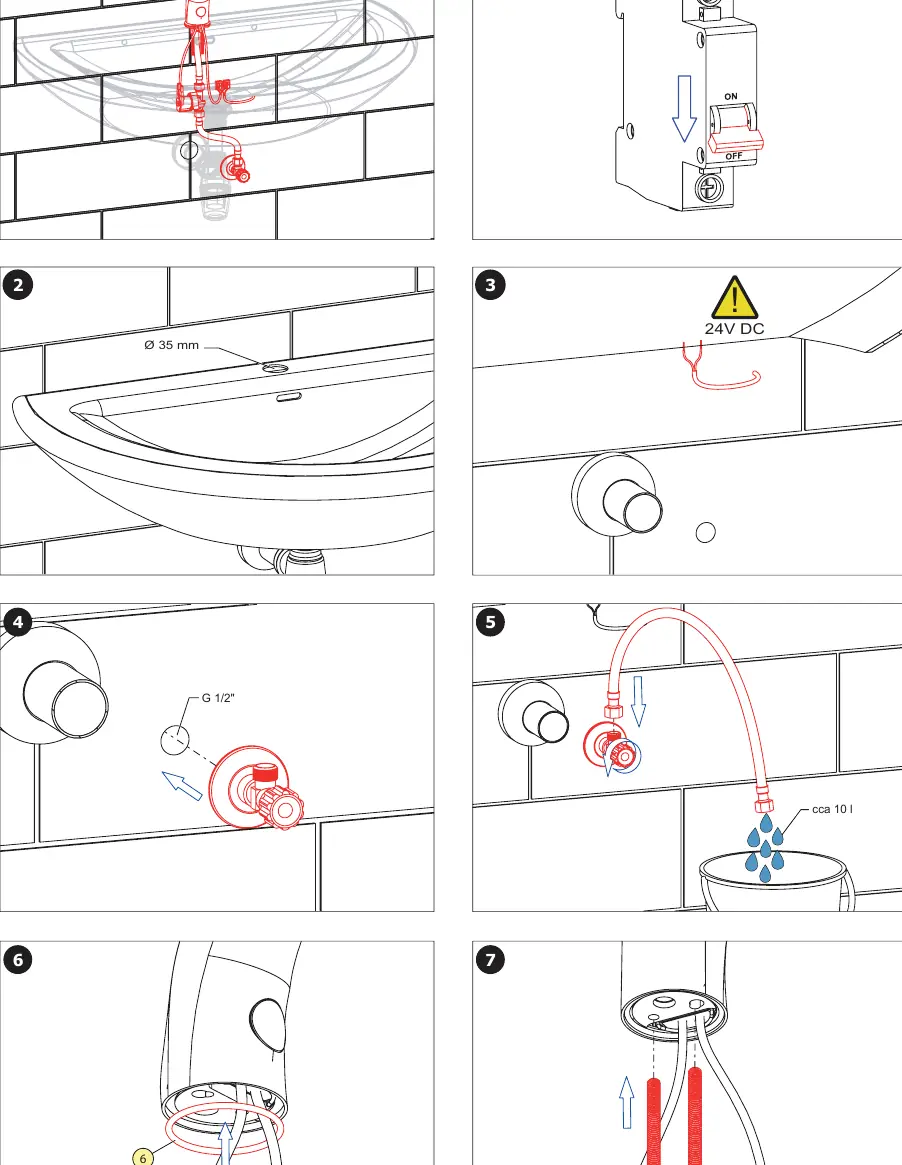

Installation and Mounting

Before installation, ensure you have read the attached safety instructions. The installation requires a 35mm diameter hole in the washbasin. The water connection is G 1/2".

• Ensure the water pressure is between 0.1 and 0.6 MPa.
• The sieve dimension must be ≤ 90 µm to prevent clogging.
• Follow the provided installation steps to mount the faucet and connect the water supply.
• Flush the water lines before final connection to remove debris.

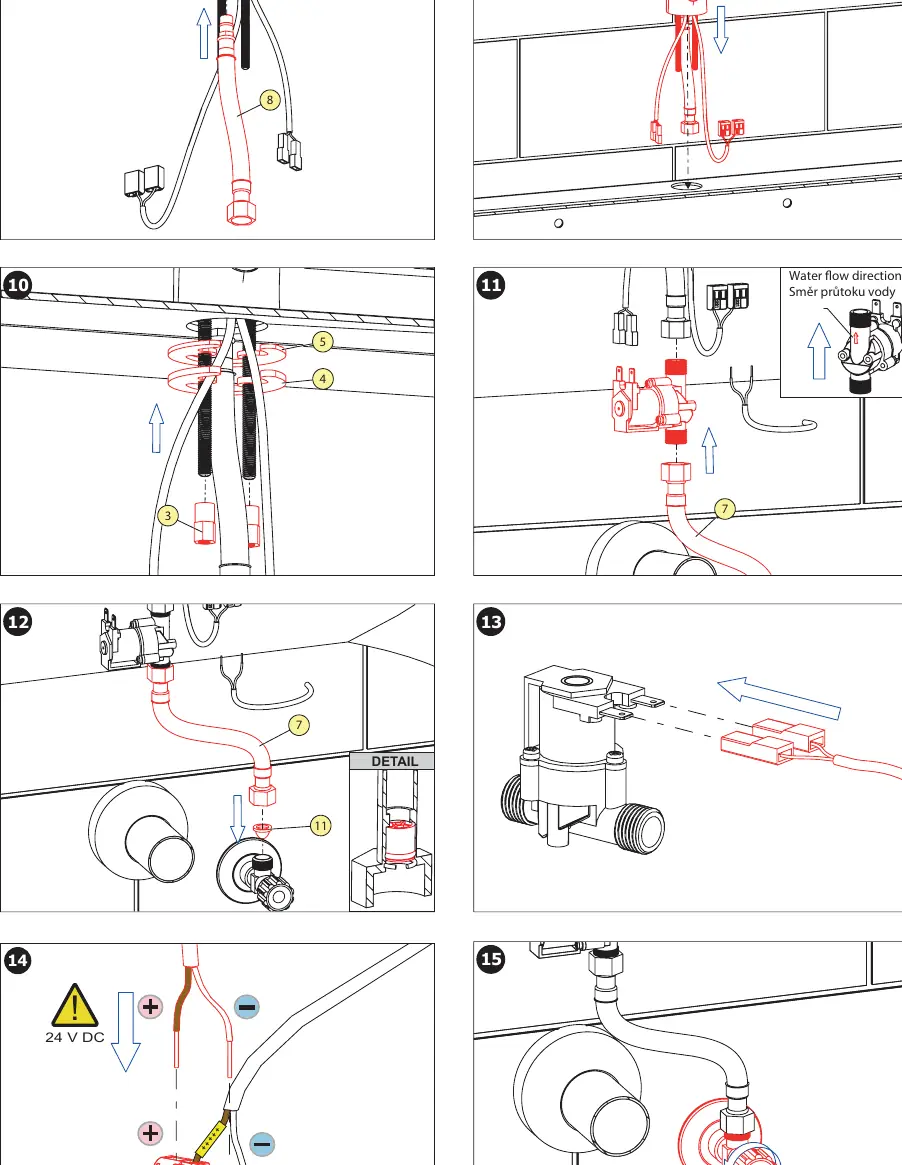

Electrical Connection

The device operates on 24V DC. Follow the wiring diagram carefully:

• Connect the positive (+) wire (brown) and negative (-) wire (white) to the 24V DC power source.
• Ensure the power supply is constant and not switched by a light circuit.
• The system includes a solenoid valve that must be connected according to the wiring diagram.

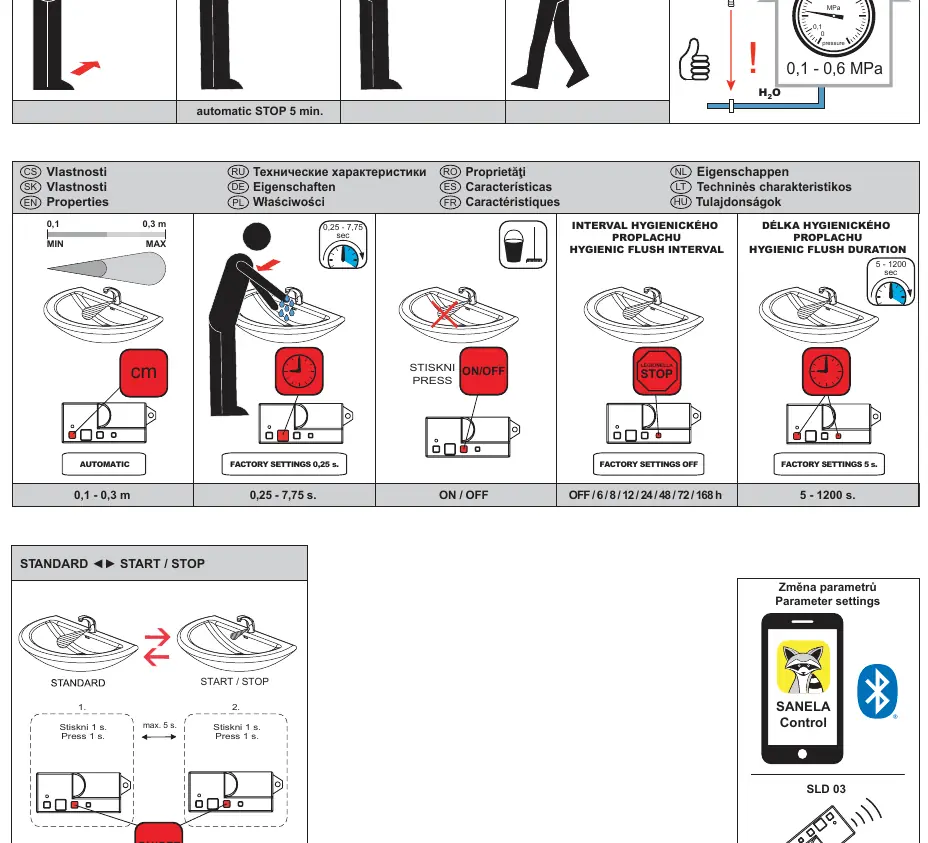

Parameter Settings

The faucet parameters can be adjusted using the Sanela Control application or manual settings:

• Detection Range: Adjustable between 0.1 and 0.3 meters.
• Flush Time: Adjustable between 0.25 and 7.75 seconds.
• Hygienic Flush: Can be set to interval (OFF / 6 / 8 / 12 / 24 / 48 / 72 / 168 hours) and duration (5 - 1200 seconds).
• Start/Stop Mode: Allows manual override of the automatic function.

Maintenance and Accessories

Regular maintenance is recommended to ensure long-term reliability. Check the sieve for debris periodically. Recommended accessories include:

• Power Supplies: SLZ 01Y, SLZ 01Z, SLZ 04Y, SLZ 04Z, SLZ 06.
• Thermostatic Valves: SLT 04, SLT 05.
• Remote Control: SLD 03 for sensor settings.
• Aerators: SLA 55A (3.8 l/min), SLA 55B (1.9 l/min).
