User Manual for Sanela SLUN 04E Stainless Steel Wall Hung Sink
Quick guide for the Sanela SLUN 04E stainless steel wall-hung sink. Includes installation steps, wiring instructions, sensor settings, and maintenance procedures.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Sanela SLUN 04E is a stainless steel wall-hung sink with integrated electronics. Crucial: The unit must be connected to a constant 24V DC power supply. Do not connect the power supply behind a light switch, as the unit requires constant voltage to function correctly. The sink features an automatic stop function (factory set to 5 minutes) and adjustable parameters via the SLD 03 remote control.
Product Description
The sink is designed for wall mounting and includes an integrated sensor for touchless operation. It requires a 24V DC power source and standard plumbing connections for water inlet and waste.
Installation
Installation should be performed by qualified personnel. Ensure the wall is prepared according to the technical drawing provided in the manual. Steps:
- Ensure the power supply is disconnected before starting.
- Prepare the wall mounting points and drill holes as specified.
- Install the mounting hardware (screws and anchors provided).
- Connect the water inlet (G 1/2") and waste pipe (Ø 40 mm).
- Connect the 24V DC power supply cables.
- Secure the sink to the wall.
- Perform a test run to ensure no leaks and proper sensor operation.
Electrical Connection
The unit requires a 24V DC power supply. It is essential that the unit remains under constant voltage. Do not connect the power supply unit behind a switch in the light circuit, as this will disrupt the sensor's operation.
Settings and Functions
The sink comes with factory settings, including an automatic stop after 5 minutes. Additional parameters, such as hygienic flush intervals and duration, can be adjusted using the optional SLD 03 remote control. The sensor range is also adjustable.
Maintenance

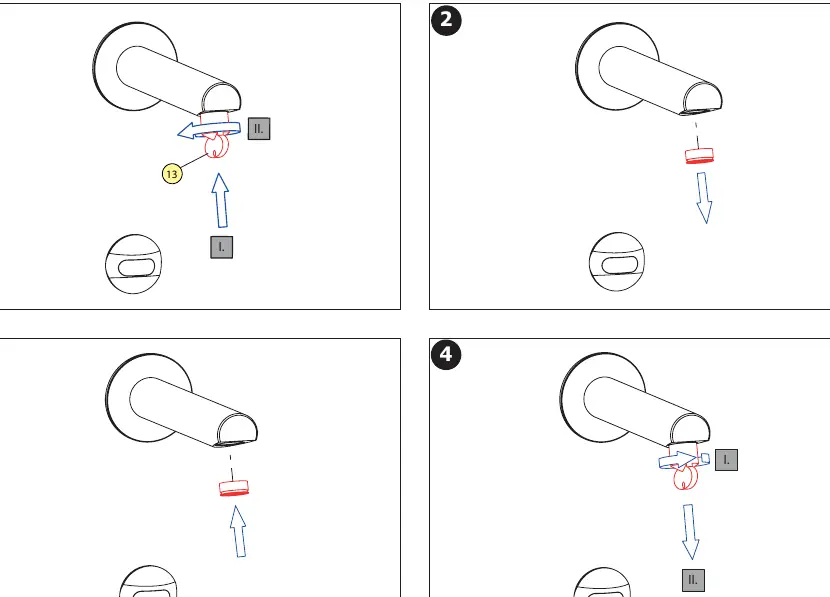

Regular maintenance ensures the longevity of the product. Keep the sensor area clean. If water flow decreases, check and clean the aerator. The aerator can be removed and cleaned or replaced as needed.
Technical Data
- Power Supply: 24V DC
- Water Pressure: 0.1 - 0.6 MPa
- Automatic Stop: 5 minutes (factory setting)
- Sieve Mesh Size: ≤ 90 µm
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Sensor not responding
Ensure the unit is connected to a constant 24V DC power supply and not behind a light switch.
Water flow stops unexpectedly
The automatic stop function is active (factory set to 5 minutes). This is normal operation.
Low water flow
Check the aerator for debris and clean or replace it. Verify water pressure is within 0.1 - 0.6 MPa.
Before use
- Verify 24V DC power supply is available.
- Ensure water pressure is between 0.1 and 0.6 MPa.
- Check that the sieve mesh size is ≤ 90 µm.
- Confirm the unit is connected to constant voltage (not switched).
- Ensure all plumbing connections are tight and leak-free.
Specs in practice
- Power Supply
- Requires 24V DC constant voltage.
- Water Pressure
- Operating range is 0.1 to 0.6 MPa.
- Automatic Stop
- Safety feature that shuts off water after 5 minutes of continuous flow.
Images and diagrams

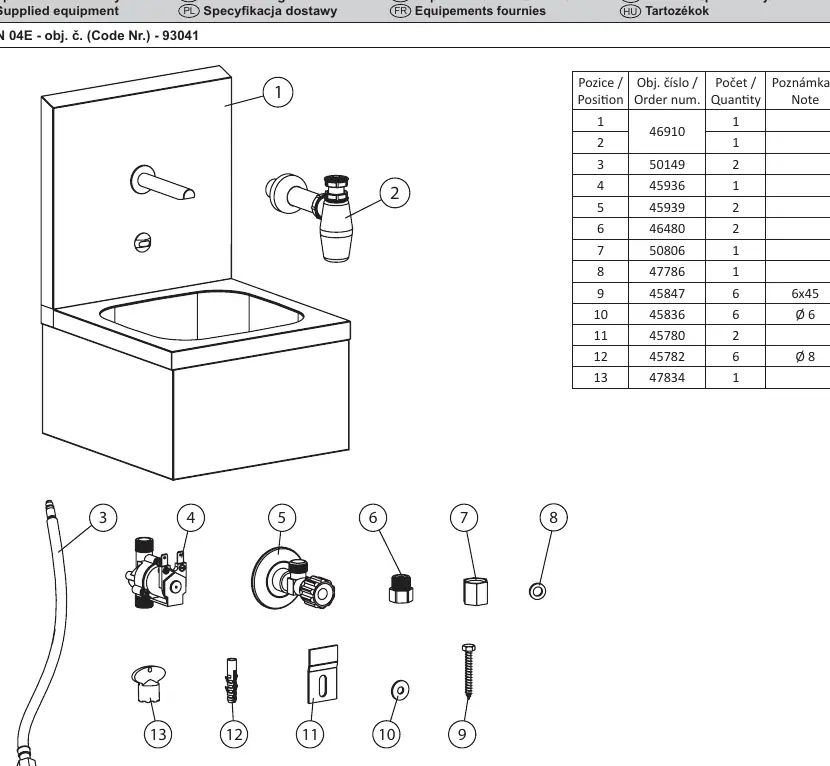

- Page 2 contains the exploded view and parts list for the assembly.
- Page 3 provides the technical drawing with dimensions for installation.

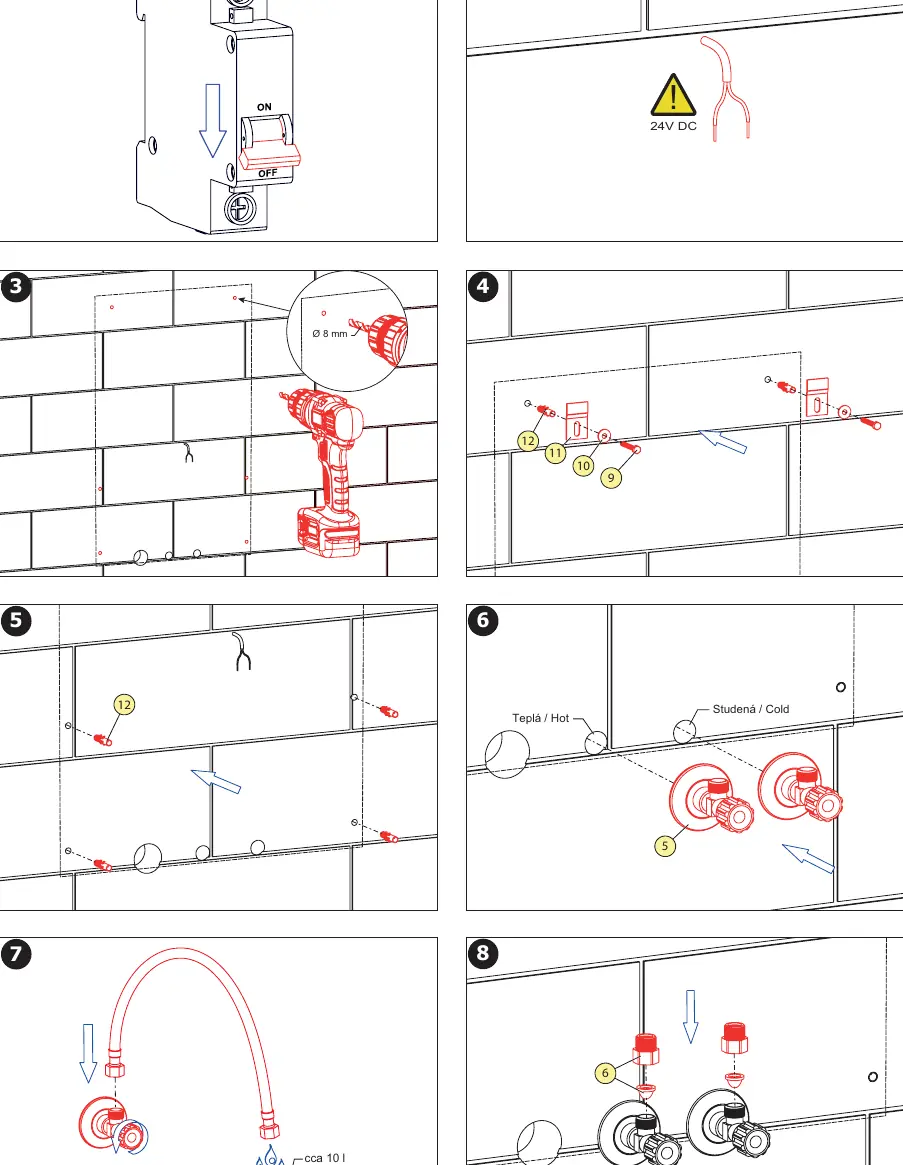

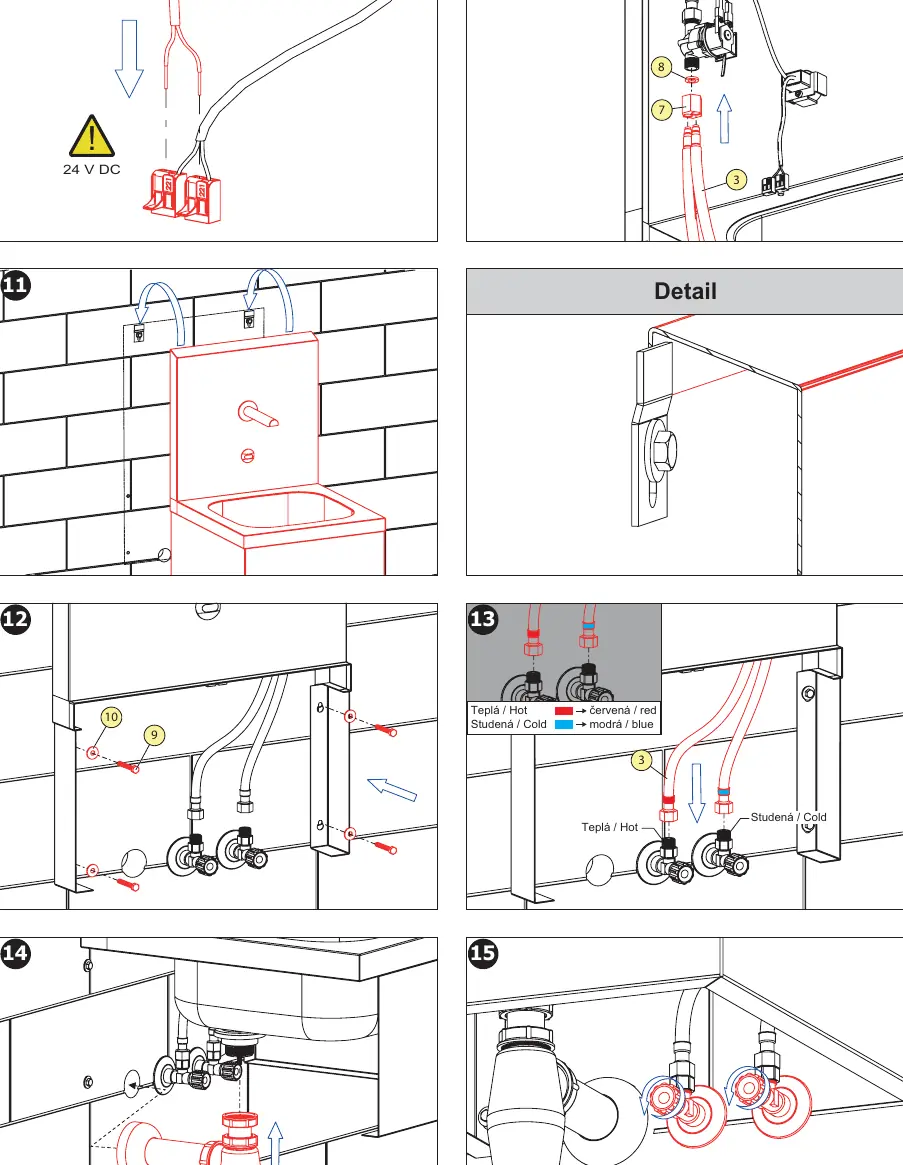

- Pages 4-5 illustrate the step-by-step mounting and wiring process.
Model compatibility
- Requires SLD 03 remote control for advanced parameter adjustments.
- Compatible with Sanela power supplies (e.g., SLZ 01Y, SLZ 04Y, SLZ 06).
