Sanela SLO 02M Mechanical Hand Dryer User Manual

Quick guide from the manual

The Sanela SLO 02M is a mechanical wall-mounted hand dryer. Important: For proper function, the unit must be kept under constant voltage. Do not connect the power supply unit behind a light switch or motion sensor, as this will interrupt the power and prevent the device from functioning correctly.

Installation

Installation must be performed by a qualified person in accordance with local regulations. The device is designed for indoor use.

• Mounting Height: It is recommended to install the unit at a height of at least 120 cm from the floor to the air outlet.

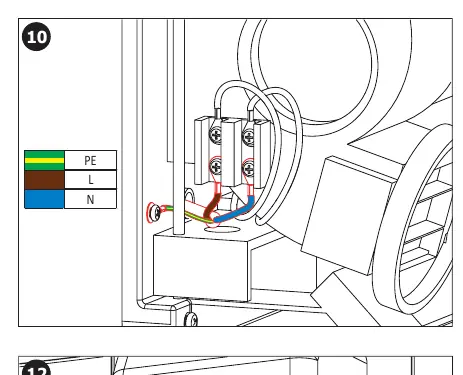

• Electrical Requirements: The power supply must be protected by a single-phase circuit breaker (min. 16 A). A residual current device is recommended for additional protection.

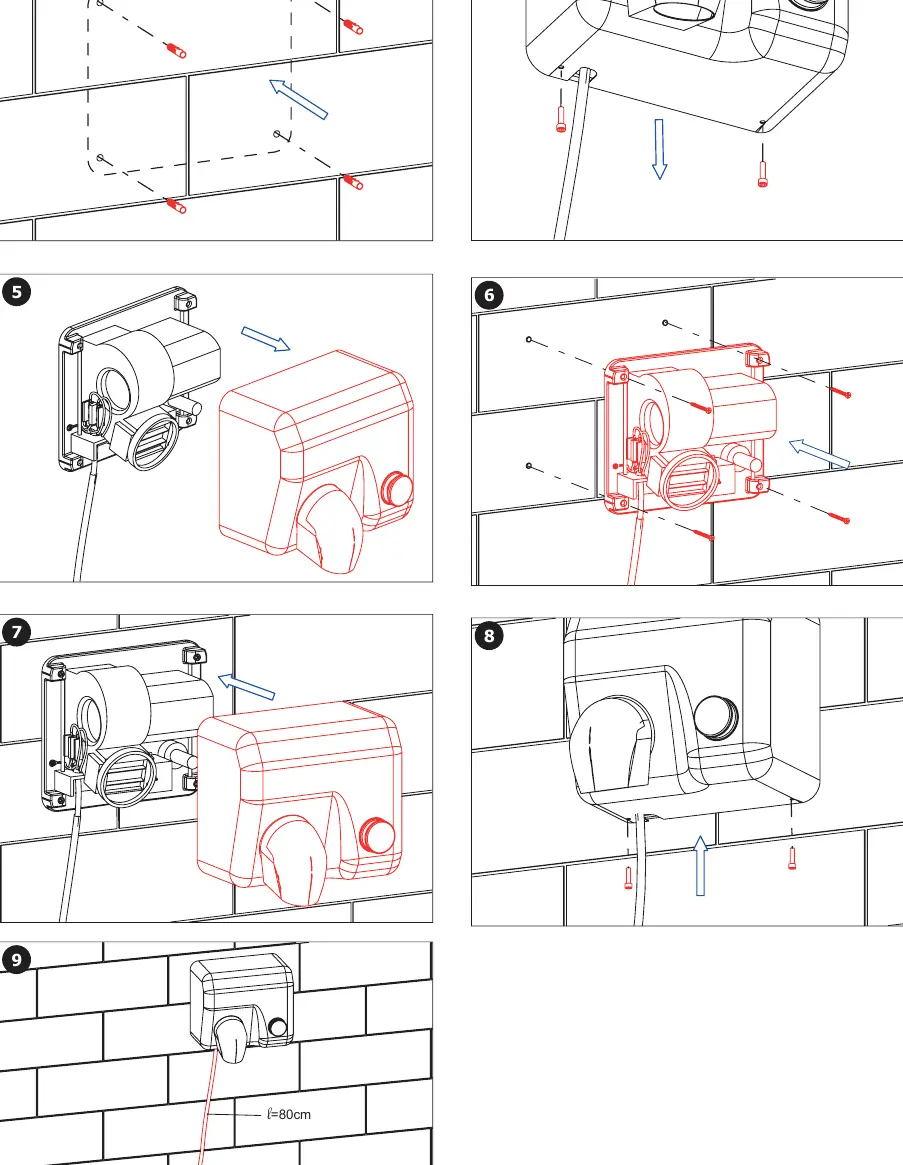

• Mounting Steps: Use the provided fasteners. Ensure the wall surface is suitable for the mounting hardware.

Operation

The hand dryer is activated by pressing the mechanical button on the front. The drying time is factory-preset to 20 seconds. To restart the cycle, press the button again.

Maintenance

Before performing any maintenance, always disconnect the device from the electrical power supply.

• Cleaning: Clean stainless steel parts using only water, soap, and a soft cloth. Do not use aggressive or abrasive cleaners.
• Airflow: Regularly check that the air inlet and conical outlet are not blocked by dust, dirt, or larger particles.
• Internal Cleaning: The manufacturer recommends cleaning the interior of the dryer and checking the motor's carbon brushes at least twice a year. Dirt accumulation in the engine can damage the product.

Safety and Warnings

• The dryer is intended exclusively for drying hands with hot air. By rotating the nozzle 180°, it can be used for drying the face.
• Do not expose the unit to atmospheric agents (rain, sun).
• Do not tamper with internal components.
• Do not block the air inlet or outlet.
• Do not insert objects inside the device.
