User Manual for Santa Fe Classic Dehumidifier

Quick guide from the manual

The Santa Fe Classic is a high-capacity dehumidifier designed for vertical configuration, ideal for basements. It operates in temperatures between 56°F and 95°F. Key operational requirements include maintaining an upright position, ensuring proper clearance for airflow, and using a dedicated 115 VAC circuit. The unit requires a MERV-13 filter, which should be checked and replaced every three to six months.

Safety Instructions

• Warning: Failure to follow instructions can result in serious injury or death.
• Caution: Failure to follow instructions can result in property damage.
• Operate the unit only in an upright position.
• Do not operate near standing water.
• Ensure the unit is plugged into a Ground Fault Interrupter (GFCI) protected outlet.
• Do not restrict airflow into or out of the unit.
• The unit is designed for indoor use only.
• Do not use the unit as a bench or table.

Dehumidifier Set Up

When unpacking, remove the shipping cardboard from the top of the unit. Ensure the unit is placed on a level surface to prevent leakage or improper drainage. Do not place the unit directly on structural building members without vibration absorbers.

Location Considerations

• Locate the unit near a suitable drain.
• Ensure the power cord reaches a 115 VAC outlet with a minimum 15 Amp circuit capacity.
• Allow sufficient clearance for the front panel (label side) and the discharge air flow side for maintenance and service.
• Maintain at least 12 inches of clearance for intake airflow and 24 inches for filter removal.

Drain Installation

The unit generates condensate. A 6-foot drain hose is attached to the unit. Ensure the hose is not kinked or restricted. If the unit is too far from a floor drain, you may use a 1/2 inch PVC rigid pipe to extend the drain, ensuring a downward slope. An optional condensate pump kit (Part # 4022220) is available if lift is required.

Operation

The humidity control is an adjustable switch that turns the unit on when the relative humidity rises to the set point. It turns off when the humidity is within ±5% of the set point.

Humidity Control Settings

• Drier: 35% to 45% Relative Humidity.
• Normal: 45% to 55% Relative Humidity (Recommended).
• Humid: 55% to 65% Relative Humidity.

Fan Operation

• FAN ON: The internal blower runs continuously.
• FAN AUTO: The blower runs only while the unit is dehumidifying (Recommended).

Air Filtration

The unit uses a MERV-13 air filter. It is recommended to check and replace the filter every three to six months. Operating the unit without a filter voids the warranty.

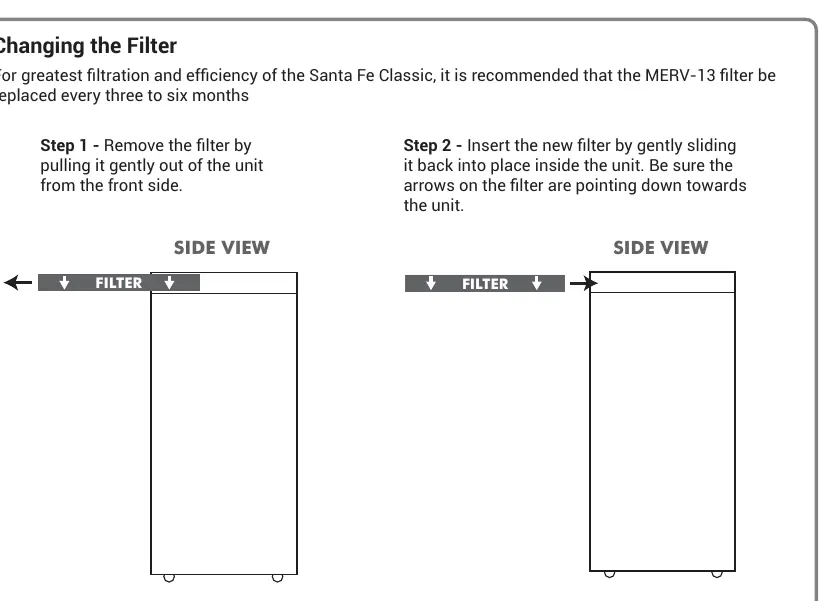

Changing the Filter

1. Ensure the unit is turned off.
2. Remove the old filter by pulling it gently out from the front side.
3. Insert the new filter by sliding it into place, ensuring the arrows on the filter point down towards the unit.

Ducting to Finished Areas

The return air inlet hood has an 8-inch and 6-inch diameter collar. The 8-inch collar is the main return and must be used. The 6-inch collar is optional. A supply duct collar is included in the return duct kit for directing dry air into finished areas.

Troubleshooting

Troubleshooting should be performed by a qualified HVAC technician.

• Fan not running: Check for loose connections in the fan circuit, obstructions, or a defective fan/relay.
• Low dehumidification capacity: Check for a frosted evaporator, low refrigerant charge, dirty filter, or restrictive ducting.
• Unit removes some water but not as expected: Check for air temperature/humidity drops, incorrect humidity settings, air leaks, or a defective compressor.

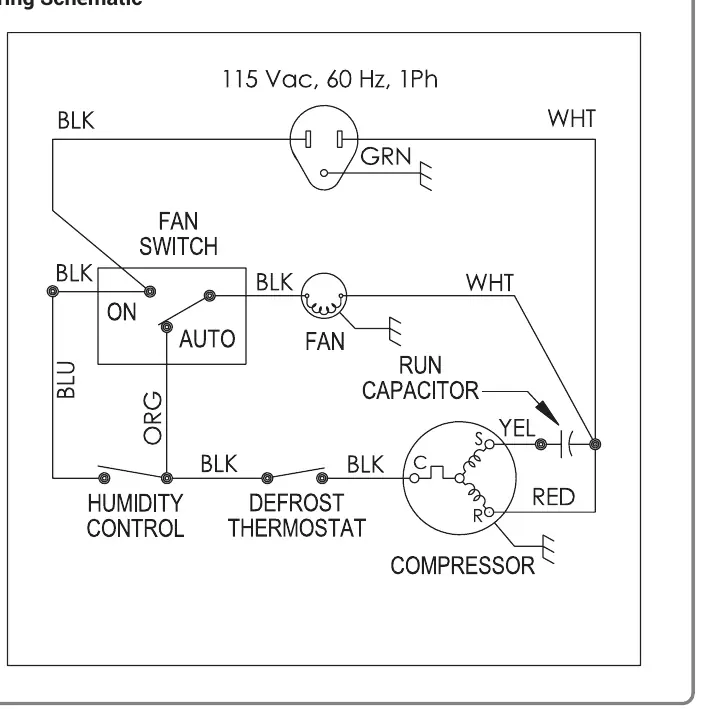

Electrical Requirements

The Santa Fe Classic requires a grounded 115 VAC outlet and draws 6.4 Amps at 80°F and 60% RH. A minimum 15 Amp circuit capacity is required. If used in areas that may become wet, a GFCI protected circuit is recommended.
