User Manual for Saramonic Blink Go Wireless Microphone System
Quick guide for the Saramonic Blink Go wireless microphone system. Learn how to pair, operate, use noise cancellation, and understand status indicators.
Quick answers from the manual
Quick answer
- To turn on the Saramonic Blink Go, press and hold the power button for 2 seconds. The system pairs automatically within 10 seconds. p. 1
Key actions
- Power ON/OFF: Press and hold for 2 seconds. p. 1
- Mute ON/OFF: Press once. p. 1
- Noise Cancellation ON/OFF: Press twice. p. 1
First start
- Plug the receiver into your device and turn on the transmitter by holding the power button for 2 seconds. p. 1
Problems and fixes
Signal interference
Avoid obstacles like walls and buildings and keep away from high-power WiFi antennas.
p. 1Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Transmission Type | 2.4GHz | Wireless frequency | p. 1 |
| Battery Life | 10 hours | Operating time | p. 1 |
Where to find it in the PDF
- User Manual p. 1
Table of contents
Quick guide from the manual
The Saramonic Blink Go is a 2.4GHz wireless microphone system. To start, press and hold the power button for 2 seconds to turn on the transmitter. Plug the receiver (RXD or RXU) into your device. The system will automatically pair within 10 seconds.
Product components
- Blink Go TX: Transmitter unit with built-in microphone and belt clip.
- Blink Go RXD: Receiver with MFi certified Lightning connector.
- Blink Go RXU: Receiver with USB-C connector.
Operation
- Power ON/OFF: Press and hold the power button for 2 seconds.
- Mute ON/OFF: Press the power button once.
- Noise Cancellation ON/OFF: Press the power button twice.
Status indicators
- Unpaired: Blinks blue and red alternately.
- Successfully paired: Solid blue light.
- Mute ON: Blinks blue (per second).
- Noise Cancellation ON: Blinks blue slowly (every 2.5 seconds).
- Low battery: Blinks red (every 5 seconds).
- Charging: Solid red light.
- Fully charged: Red light off.
Charging
Use the included USB-C charging cable to charge the unit. When the receiver is plugged into an external device, the external device can be charged through the receiver's USB-C port (supports up to 3A charging and QC2.0/PD2.0 protocols).
Technical specifications
- Transmission Type: 2.4GHz
- Frequency Response: 20Hz-16kHz
- Signal-to-Noise Ratio (SNR): 77dB
- Sensitivity: 42dB
- Sampling Rate: 48kHz
- Bit Depth: 16bit
- Transmission Range: 50m (without obstacles)
- Battery Life: 10 hours
Practical help
Common problems
Signal interference or dropouts
Keep the device away from high-power WiFi antennas, radios, and other sources of 2.4GHz interference. Avoid obstacles like walls and buildings.
Low battery indicator
The indicator blinks red every 5 seconds. Connect the unit to a power source using the included USB-C cable.
Before use
- Ensure the device is fully charged before first use.
- Verify compatibility with your device (Lightning for RXD, USB-C for RXU).
- Keep the microphone capsule uncovered for optimal sound pickup.
- Keep the unit away from heat sources, dust, and moisture.
Specs in practice
- Omnidirectional
- The microphone picks up sound from all directions.

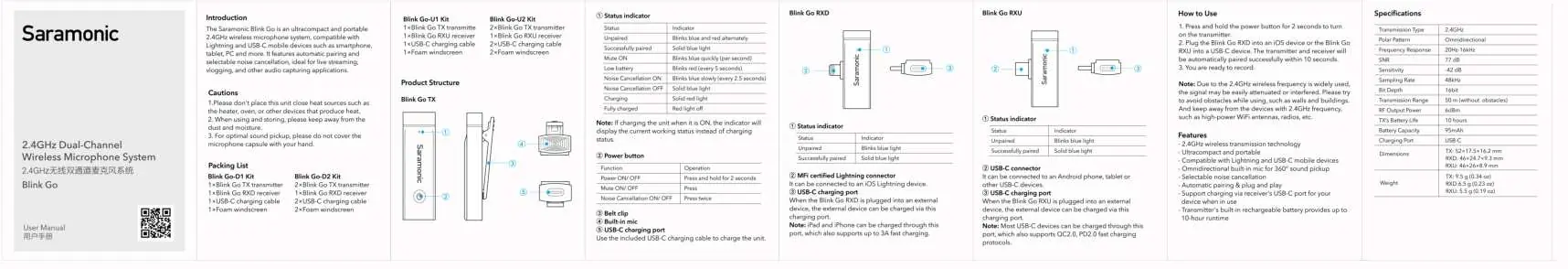

Images and diagrams
- The transmitter (TX) features a power button, belt clip, built-in mic, and USB-C charging port.
- The receivers (RXD/RXU) feature a status indicator and a USB-C charging port that allows pass-through charging for the connected device.
Model compatibility
- RXD is compatible with iOS devices via Lightning connector.
- RXU is compatible with Android phones, tablets, and other USB-C devices.
- Receiver USB-C port supports up to 3A charging and QC2.0/PD2.0 fast charging protocols.
