Car Audio Installation Guide for Honda 1998-Up Accord Sedan
Step-by-step installation guide for Scosche HA1564 car audio kit in Honda 1998-Up Accord Sedan. Includes radio removal, speaker installation, and technical specifications.
Quick answers from the manual
Quick answer
- This guide provides instructions for installing aftermarket audio equipment in a 1998-Up Honda Accord Sedan using the Scosche HA1564 kit, including radio removal and speaker installation steps. p. 1, 2
Key actions
- Radio Removal p. 2
- Front Door Speaker Installation p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Dash Opening | Double DIN | Standard size for the head unit. | p. 1 |
Where to find it in the PDF
- Technical Specifications and Application Notes p. 1
- Installation Procedures p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation instructions for aftermarket audio equipment in a 1998-Up Honda Accord Sedan using the Scosche HA1564 kit. Before starting, ensure you disconnect the negative battery cable. The factory antenna is located in the rear window glass.
Radio removal and in-dash installation
The factory provision is for a Double DIN style stereo or stereo/pocket assembly. An installation kit is not necessary for aftermarket installations if a stereo with ISO side mounting holes is used along with the factory-equipped or similar style pocket.
- Extract (2) screws from the bottom of the radio dash bezel.
- Carefully pop out the hazard switch/clock assembly and extract (1) screw from behind.
- Carefully pry up on the radio trim bezel to release it from the dash, unplug the climate controls, and remove the dash bezel.
Front dash speaker installation
The factory provision is for 1" satellite tweeters on vehicles equipped with deluxe stereos. If no tweeter is present, the grill will have to be perforated and mounting brackets for aftermarket tweeters will have to be fabricated.
- Carefully pry up on the tweeter grill to release, unplug the tweeter, and remove.

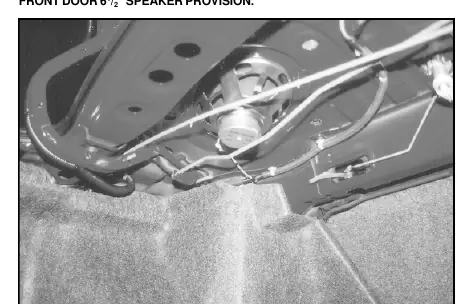

Front door speaker installation
The factory speaker provision is for a 6 1/2" 3-hole speaker mounted in a factory adapter.
- Using a small pick tool or screwdriver, remove the cover cap and screw in the bottom of the door pull cup and the door release cavity.
- Slide the door release assembly forward to release it from the panel, unplug the power lock connector, unhook the metal rod, and remove the assembly.
- Lift the pull cup / power switch panel, unplug, and remove.
- Unsnap and remove the inside mirror cover triangle.
- Remove one panel fastener from the top front corner of the door panel.
- Pry out on the perimeter of the door panel to release the fasteners, lift the panel up to release, unplug the door panel light, and remove the door panel.
- Extract the (3) screws securing the speaker to the adapter, unplug the leads, and remove.
Rear deck speaker installation
The factory speaker provision is for standard 6 x 9" speakers.
- From inside the trunk, extract (2) screws securing each speaker grill to the rear deck.
- Lift up and remove the speaker grills from the inside of the vehicle.
- Extract (4) 8 mm bolts securing the speaker, unplug, and remove.
Technical specifications
The following dimensions apply to the in-dash installation area:
- Cavity Depth: 9 inches
- Dash Opening Type: Double DIN
- Dash Opening Dimensions: 7 1/2" x 4 11/32"
- Dash Material: Plastic
- Dash Thickness: 1/8"
Manufacturer information
Scosche Industries, Inc.
Practical help
Common problems
Aftermarket stereo does not fit
Check if the stereo has ISO side mounting holes; if so, an installation kit may not be necessary.
No tweeter present in dash
The grill must be perforated and mounting brackets for aftermarket tweeters must be fabricated.
Before use
- Disconnect the negative battery cable
- Verify if the vehicle has a factory deluxe stereo
- Check if the vehicle has power windows (affects door panel removal)
- Ensure you have the correct harness and antenna adaptors
Specs in practice
- Cavity Depth
- The maximum depth available for the head unit is 9 inches.
- Dash Opening
- The opening is designed for Double DIN style stereos.
Images and diagrams
- The manual includes diagrams for radio removal, door panel disassembly, and speaker locations.
- A table on page 1 provides specific chassis dimensions for various radio types.
Model compatibility
- Compatible with 1998-Up Honda Accord Sedan.
- Kit HA1564/TN2150 works for DIN ISO radio only.
