User Manual for Sealey VS1274 Lower Ball Joint Remover/Installer
Quick guide for the Sealey VS1274 Lower Ball Joint Remover/Installer. Includes safety instructions, component list, and vehicle compatibility for Mercedes and Renault models.
Table of contents
Important Information
This manual provides safety and application information for the Sealey VS1274 Lower Ball Joint Remover/Installer. Always refer to the vehicle manufacturer's service instructions for specific procedures, as this manual covers general safety and component identification.
Safety Guidelines
- Eye Protection: Always wear approved eye protection.
- Air Tools: Do not use air tools with this kit. Use a manual ratchet wrench.
- Maintenance: Keep the force screw well lubricated before use.
- Vehicle Support: Ensure the vehicle is adequately supported with axle stands when jacked up.
- Clothing: Wear suitable clothing to avoid snagging; tie back long hair and remove jewelry.
- Condition: Do not use the tool if it is damaged.
Applications
This tool is designed for the in-situ removal and installation of front lower ball joints on the following vehicles:
- Mercedes: W220 S-Class (98-06), W211 E-Class (02-09), W230 SL (02 on).
- Renault: Megane (02-08 with 18mm ball pin).

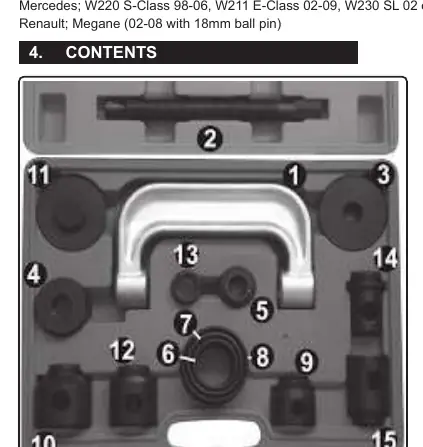

Kit Contents
The kit includes the following components:
- VS1274-01: C-Clamp
- VS1274-02: Force Screw
- VS1274-03: Stepped Sleeve Adaptor
- VS1274-04: Installation Pressure Piece (Mercedes)
- VS1274-05: Installation Pressure Piece (Renault)
- VS1274-06: Sleeve (50.5mm)
- VS1274-07: Sleeve (65.3mm)
- VS1274-08: Sleeve (76mm)
- VS1274-09: Installation Cup (Mercedes)
- VS1274-10: Extraction Cup (Mercedes)
- VS1274-11: Extraction Cup (Mercedes)
- VS1274-12: Extraction Cup (Renault)
- VS1274-13: Extraction Pressure Piece (Mercedes)
- VS1274-14: Extraction Pressure Piece (Renault)
- VS1274-15: Installation Cup (Renault)
Maintenance and Environment
Keep tools in good, clean condition. When the product becomes unserviceable, dispose of it according to local regulations. The product is covered by a 12-month guarantee from the date of purchase.
Manufacturer information
Sealey Group
Practical help
Common problems
Tool damage
Do not use the tool if it is damaged.
Force screw stiffness
Keep the force screw well lubricated before use.
Safety risk
Do not use air tools; use a manual ratchet wrench.
Before use
- Wear approved eye protection.
- Ensure the vehicle is supported by axle stands.
- Lubricate the force screw.
- Verify vehicle compatibility (Mercedes W220, W211, W230 or Renault Megane).
- Remove jewelry and tie back long hair.
Images and diagrams
- The kit includes a C-clamp, force screw, stepped sleeve adaptor, and various installation/extraction cups and sleeves specific to Mercedes and Renault models.
Model compatibility
- Mercedes: W220 S-Class (98-06), W211 E-Class (02-09), W230 SL (02 on).
- Renault: Megane (02-08 with 18mm ball pin).
