SHAD Backrest Kit Installation Guide for Honda Forza 125i '18
Installation guide for the SHAD backrest kit (HOFR17RV) for the 2018 Honda Forza 125i. Includes parts list, assembly steps, and important alignment warnings.
Table of contents
Quick guide from the manual
This document provides the installation procedure for the SHAD backrest kit (model HOFR17RV) for the 2018 Honda Forza 125i. Please note that the backrest pad itself is not included in this kit and must be purchased separately.
Parts list
Ensure all components are present before starting installation:
- 1: Mounting bracket (262201/262202)
- 2: Main support bracket (262203)
- 3: 303025 (x4)
- 4: 260740 (x2)
- 5: M10x25 screw (304116, x2)
- 6: M10x40 screw (304192, x2)
- 7: 303045 (x2)
- 8: M8x20 screw (304081, x2)
Installation steps
Follow the sequence shown in the diagrams:
- Identify the mounting points on the motorcycle frame (A).
- Assemble the brackets using the provided screws (3, 5, 6, 7, 8) and spacers (4).
- Attach the main support bracket (2) to the motorcycle frame.
- Secure the backrest mount (1) to the support bracket.
- Verify alignment before final tightening.
Important warnings
Do not fully tighten the screws until the kit is correctly attached and aligned. This ensures proper fitment and prevents damage to the motorcycle bodywork.
Compatibility
This kit is designed for European models of the Honda Forza 125i '18. For compatibility with models in other continents, please check the official website at www.shad.es.
Official resources from the manual
Manufacturer information
SHAD
Practical help
Common problems
Backrest pad missing
The backrest pad is not included in this kit and must be purchased separately.
Misalignment during installation
Do not fully tighten the screws until the kit is correctly attached and aligned.
Before use
- Verify all parts (1-8) are present
- Ensure you have the correct backrest pad (sold separately)
- Prepare tools for M10 and M8 screws
Images and diagrams

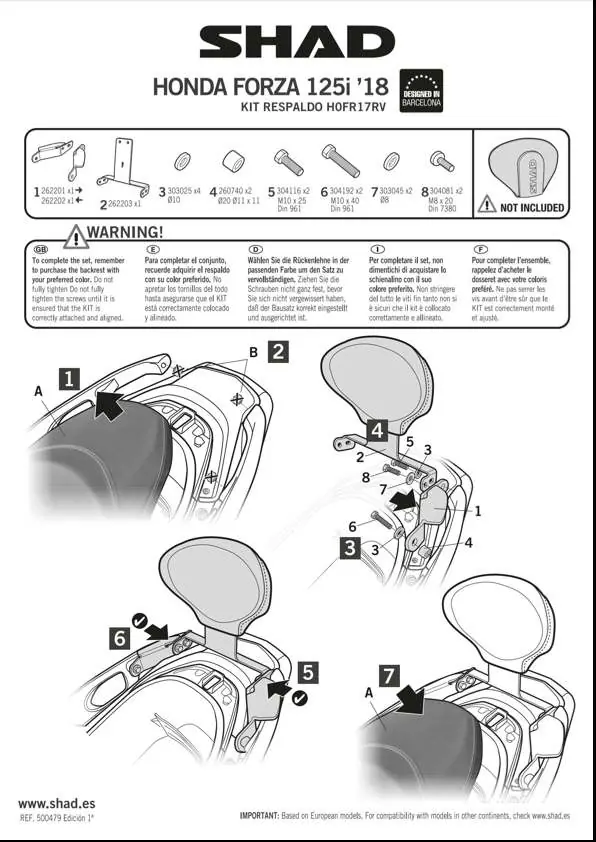

- Diagrams 1-7 show the assembly sequence of the mounting brackets and screws to the motorcycle frame.
Model compatibility
- Designed for European models of the 2018 Honda Forza 125i.
- Check www.shad.es for compatibility with models in other continents.
