Installation manual for SHAD VOGE 500 R '20 Top Master Kit V0VR50ST
Step-by-step installation guide for the SHAD Top Master kit V0VR50ST designed for the VOGE 500 R '20 motorcycle. Includes parts list, assembly instructions, and compatibility warnings.
Table of contents
Manual images
Click an image to enlargeImportant information
Warning: Do not fully tighten the screws until it is ensured that the KIT is correctly attached and aligned. This ensures proper fitment and prevents stress on the motorcycle frame.
Parts list

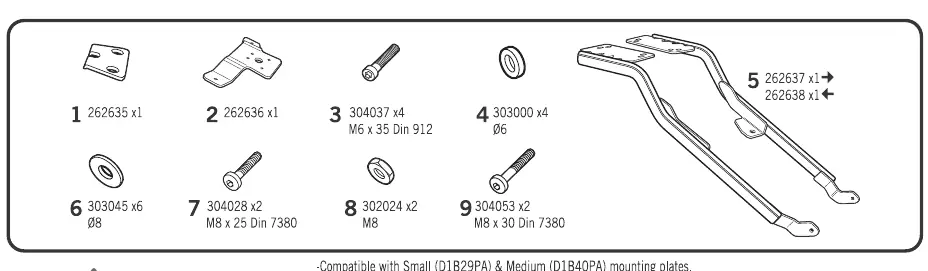

- 1: 262635 x1
- 2: 262636 x1
- 3: 304037 x4 (M6 x 35 Din 912)
- 4: 303000 x4 (Ø6)
- 5: 262637 x1 / 262638 x1
- 6: 303045 x6 (Ø8)
- 7: 304028 x2 (M8 x 25 Din 7380)
- 8: 302024 x2 (M8)
- 9: 304053 x2 (M8 x 30 Din 7380)
Installation steps
The installation involves removing the seat and rear covers of the motorcycle to access the mounting points. Follow the numbered sequence in the diagrams:
- Remove the seat (A) and rear covers (B, C, D) as shown in the diagrams.
- Position the mounting brackets (E, F) and secure them using the provided hardware (parts 3, 4, 6, 7, 8, 9).
- Ensure all parts are aligned before fully tightening the screws.
- Reassemble the motorcycle components.
Compatibility notes
This kit is compatible with Small (D1B29PA) and Medium (D1B40PA) mounting plates. It is not compatible with the aluminium mounting plate (D1BTRPA) or the Large mounting plate (D1B481PA).
Manufacturer information
SHAD
Practical help
Common problems
Kit misalignment
Do not fully tighten screws until the kit is correctly attached and aligned.
Incompatible mounting plate
This kit is not compatible with aluminium mounting plate (D1BTRPA) or Large mounting plate (D1B481PA).
Before use
- Ensure you have all parts 1-9 listed in the parts list
- Verify motorcycle model is VOGE 500 R '20
- Check compatibility with your specific top case mounting plate
- Ensure you have the necessary tools for disassembly and assembly
Images and diagrams

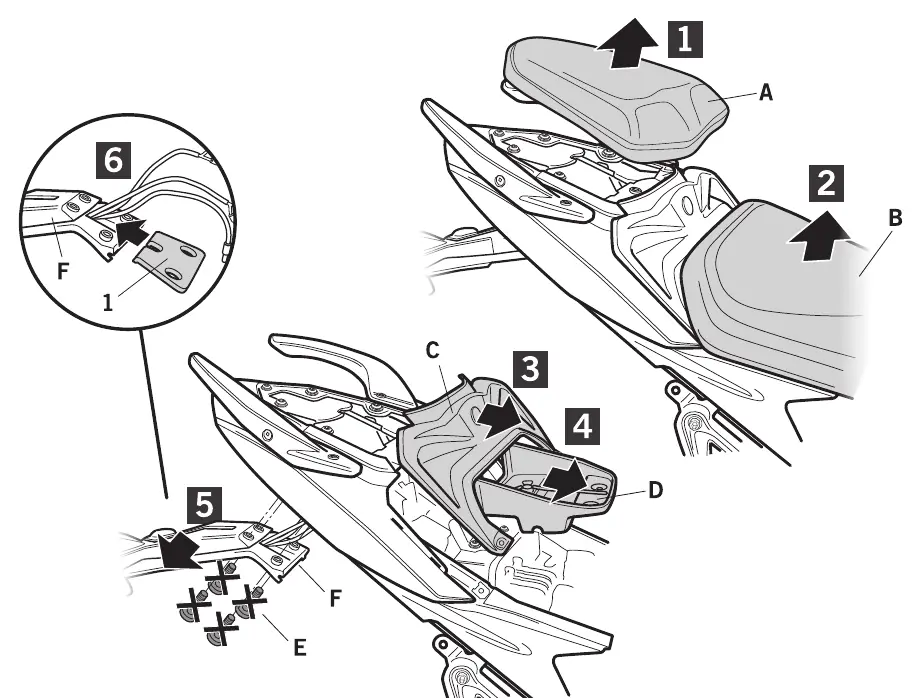

- Page 1 shows the parts list and initial disassembly of the seat and covers.

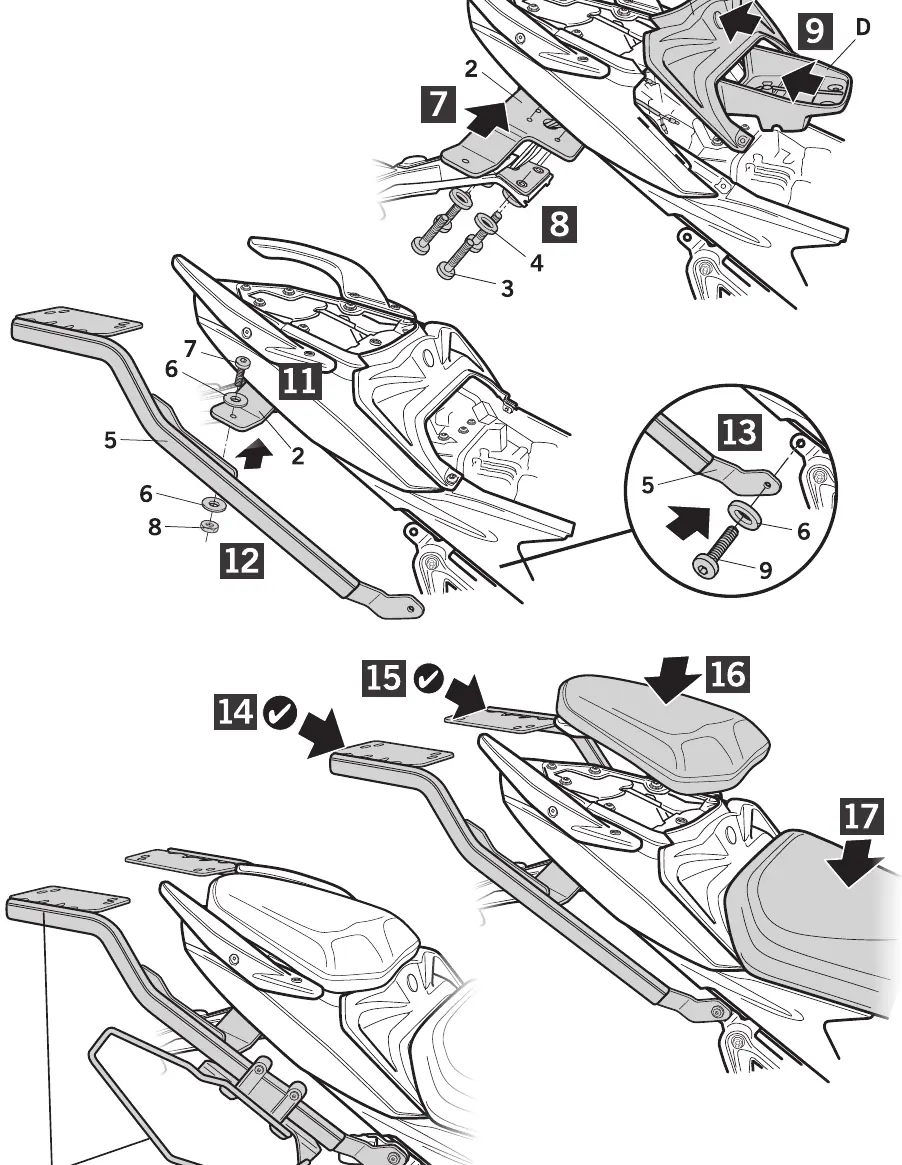

- Page 2 illustrates the mounting sequence of the brackets and final assembly.
Model compatibility
- Compatible with Small (D1B29PA) and Medium (D1B40PA) mounting plates.
- Not compatible with aluminium mounting plate (D1BTRPA) or Large mounting plate (D1B481PA).
