User Manual for Somogyi AD 200F Aroma Diffuser
Comprehensive user guide for the Somogyi AD 200F Aroma Diffuser. Includes setup instructions, cleaning procedures, troubleshooting tips, and technical specifications for optimal performance.
Quick answers from the manual
Quick answer
- The Somogyi AD 200F is an ultrasonic aroma diffuser with a 200ml tank. It requires distilled water and must be cleaned every 3 days to prevent bacterial growth. Always pour water out towards the right side of the buttons to protect the air vent. p. 1, 4, 5
Key actions
- Cleaning the water tank p. 5
- Filling the tank p. 4
First start
- Place on flat surface, connect adapter, fill with distilled water to MAX, add oil, replace cover, plug in. p. 4
Problems and fixes
Humidification does not work
Fill with distilled water, check power, check cover.
p. 5Maintenance and reset
- Clean water tank and oscillator every 3 days. p. 5
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Tank capacity | 200 ml | Water reservoir size | p. 26 |
| Power supply | 230 V~ / 50 Hz | Required voltage | p. 26 |
Where to find it in the PDF
- Structure and Parts p. 2
- Safety Instructions p. 3
- Putting into Use p. 4
- Cleaning p. 5
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Somogyi AD 200F is an ultrasonic aroma diffuser and humidifier. Important: To prevent bacterial growth, you must empty and clean the water tank every 3 days. Always use distilled water to prevent scaling and ensure proper operation. Never allow water to enter the air vent (4) during filling or emptying.
Product Overview
The device features an ultrasonic oscillator that creates a cold mist. It includes a 200 ml water tank, two humidification levels, and mood lighting with flame effect. The unit automatically switches off when the water runs out.
Putting into Use
- Place the device on a solid, horizontal, flat surface.
- Connect the adapter plug to the device.
- Remove the cover from the water tank.
- Fill the tank with distilled water up to the MAX line. Do not overfill.
- Add 5-10 drops of natural aroma oil if desired. Do not use artificial substances.
- Replace the cover.
- Connect the adapter to a standard 230 V~ / 50 Hz grounded wall outlet.
- The unit is ready for operation.
Functions
MIST Button: Controls humidification levels. Pressing the button cycles through high/low mist settings and turns the device off.
LIGHT Button: Controls the mood lighting. Cycles through high brightness, low brightness, pulsating light, and off.
Cleaning and Maintenance
Regular cleaning is essential to prevent scaling and bacterial growth.
- Water Tank: Empty and clean every 3 days. Rinse with fresh water. For scaling, use a light acetic water solution (1 tablespoon of vinegar in 1 glass of water), then rinse thoroughly.
- Atomizer (Oscillator): If scaling occurs, drop 5-10 drops of vinegar onto the oscillator, wait 2-5 minutes, and clean gently with a soft material like a cotton swab. Rinse with pure water.
- Important: When pouring out water, always pour towards the right side of the buttons to avoid getting water into the air vent.
Troubleshooting
If the device malfunctions, check the following:
- Humidification does not work: Fill with distilled water, check power supply, ensure cover is properly placed.
- Low efficiency: Reduce water level, clean the oscillator.
- Water leakage: Check cover alignment, reduce humidification intensity if the room is too cold or humidity is too high.
Technical Specifications
- Power Supply: 230 V~ / 50 Hz
- Tank Capacity: 200 ml
- Operating Temperature: 5-40 °C
- Dimensions: 20 x 13 x 8 cm
Practical help
Common problems
Humidification does not work
Fill the water tank with distilled water, check the mains power supply, and ensure the cover is correctly placed.
Humidification is not efficient
Decrease the water level in the tank and clean the oscillator of any scale deposits.
Water leaking from the appliance
Check that the cover is aligned correctly. If the room is too cold or humidity is too high, reduce the humidification intensity.
Before use
- Place the device on a solid, flat, horizontal surface.
- Ensure the power adapter is connected.
- Fill the tank with distilled water up to the MAX line.
- Do not overfill the tank.
- Add 5-10 drops of natural aroma oil (optional).
- Ensure the cover is securely in place.
Specs in practice
- Tank Capacity
- 200 ml maximum capacity.
- Power Supply
- Requires 230 V~ / 50 Hz grounded outlet.
- Operating Temperature
- Use only in environments between 5°C and 40°C.
Images and diagrams
- Figure 1 shows the structure: 1. Cover, 2. Light switch, 3. Mist switch, 4. Fan nozzle, 5. Oscillator, 6. Air intake, 7. Dosing cup.

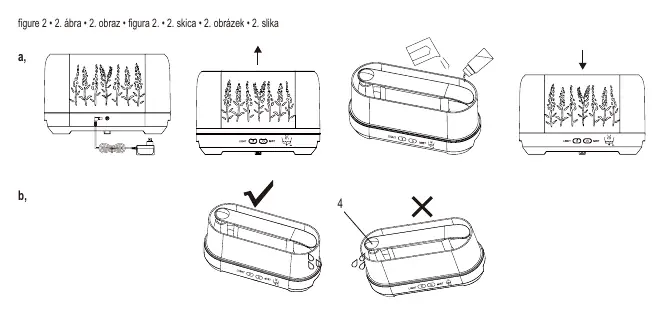

- Figure 2b illustrates the correct way to pour out water: always pour towards the right side of the buttons to avoid the air vent.
Model compatibility
- Use only distilled water.
- Use only natural aroma oils; artificial substances may damage the device.
- For indoor use only.
